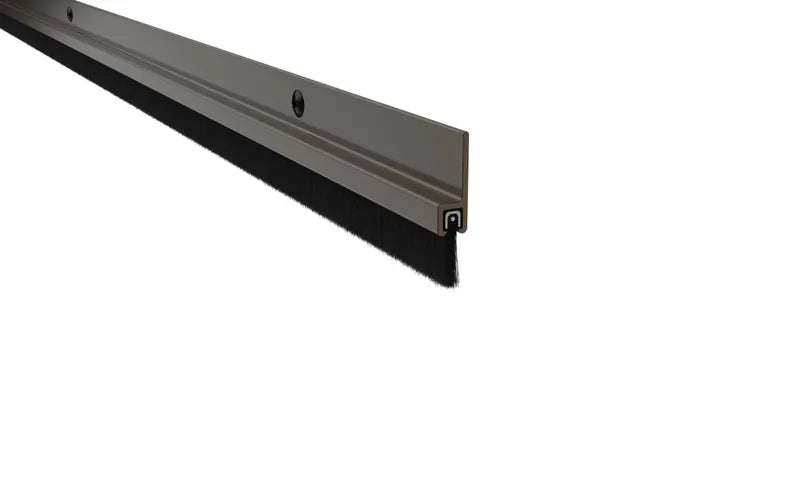

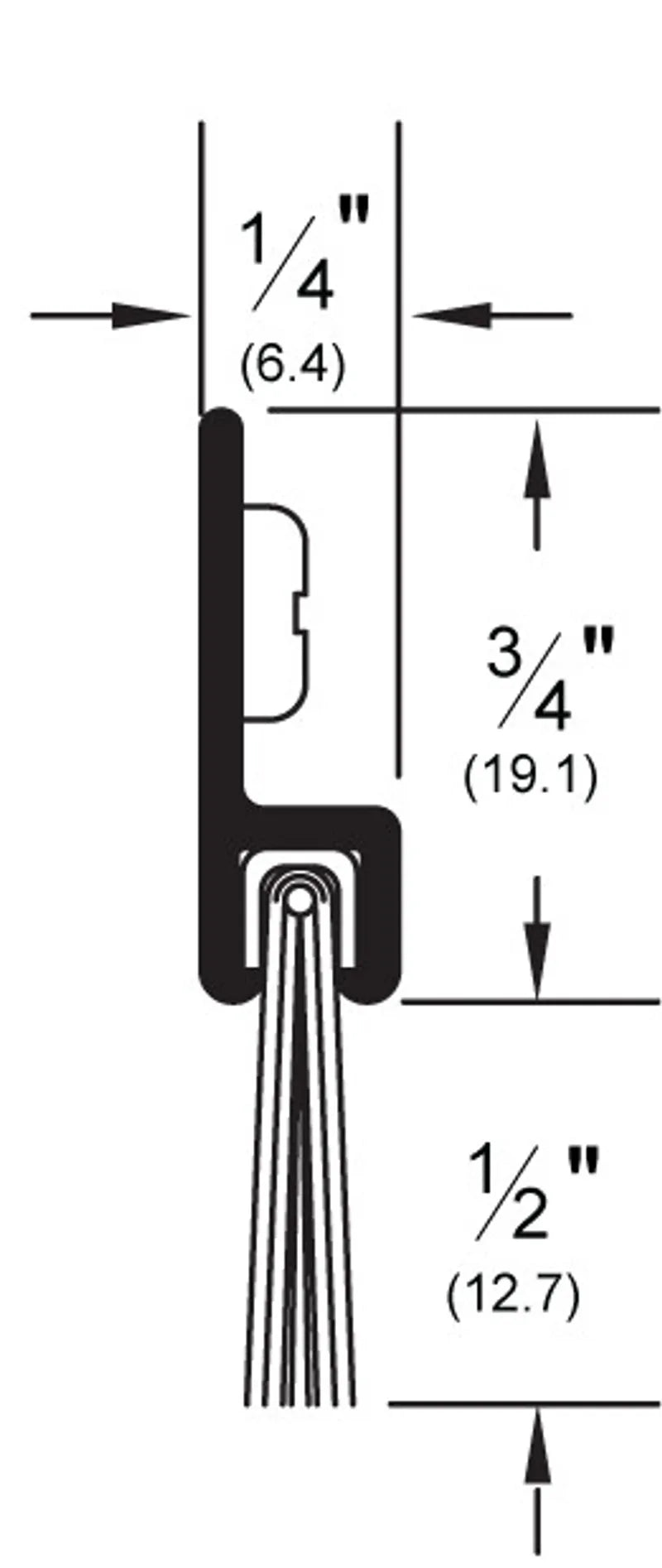

The 18050_NB Door Sweep features a densely compressed nylon brush seal to effectively seal gaps under and around doors. The brush is flexible and conforms to surface irregularities. It is available in various anodized finishes and can be custom cut to size. The casing measures 3/4" in height, while the brush portion has a height of 1/2".
Brush Colors
-
GR - Gray
-
BL - Black
Features
-
Consists of densely compressed nylon filaments encased in high-quality aluminum retainer
-
Ideally suited for hollow metal and wood door applications
-
For use on overhead, section, sliding, and automatic doors
-
Brush remains flexible down to -40°F and has a melting point above 400°F
-
Punched with slotted holes for adjustment (except 35⁰ angle types which are drilled with 1/8" hole)
Benefits
-
Reduce the infiltration of light, air, wind, rain, and snow
-
Prevents heat loss and controls the penetration of smoke and fumes
-
Naturally repels rodents and spiders. Can be sprayed with household pest repellent for additional pest control
Specifications
-
Base Material: Aluminum
-
Fasteners: 6 x 5/8 SMS Phillip Pan Head
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1 1/4"
-
Weight: 41/100 lbs
-
Width: 1/4"
Certifications
-
GREENGUARD Gold Certified
-
UL 4L10 listed
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
