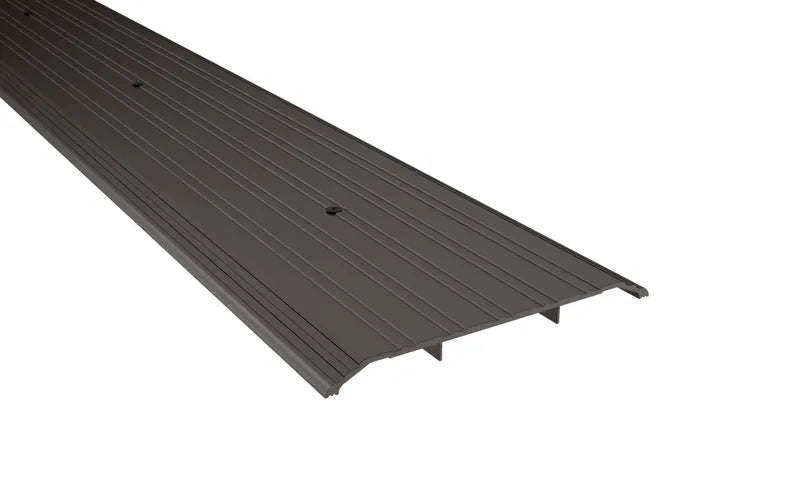

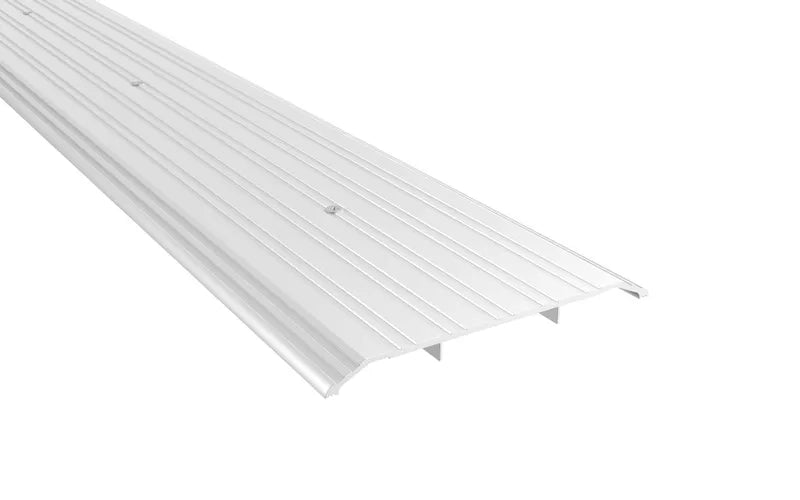

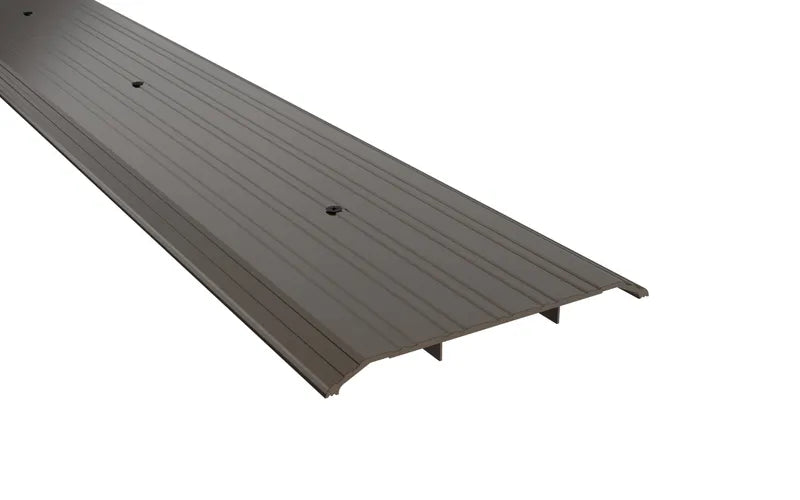

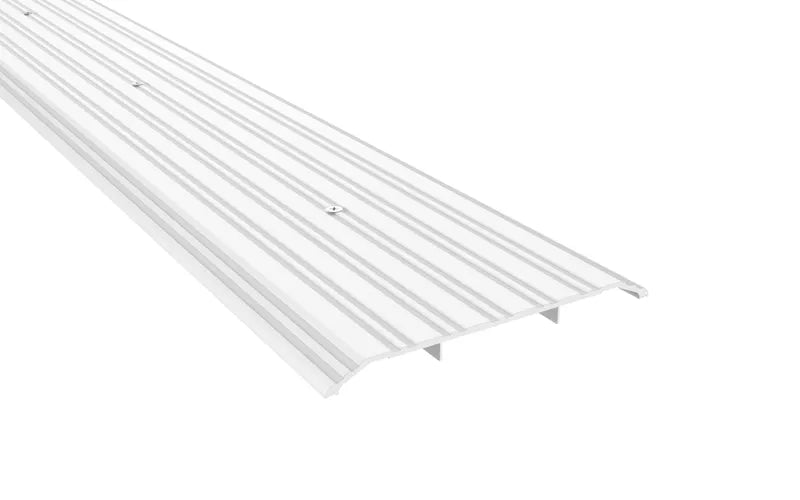

The 176 Commercial Flat Saddle Threshold is 1/2" high x 7" wide and designed to create a smooth transition under a door. It is available in various finishes and is barrier-free and fire-rated. This symmetrical threshold can be used in offset conditions with the use of an elevator. It is BHMA certified and has undergone rigorous testing for durability and performance.
Features
-
Wood screw standard, other fasteners available
-
Barrier-free and fire rated
-
Symmetrical design
-
Used in offset conditions with elevator
Benefits
-
ADA accessible
-
Creates a smooth transition under door
-
Durable, high-performing
Specifications
-
Base Material: Aluminum, Brass
-
Fasteners: WS #10 x 1.5"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/2"
-
Weight: 1.29 lbs
-
Width: 7"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
