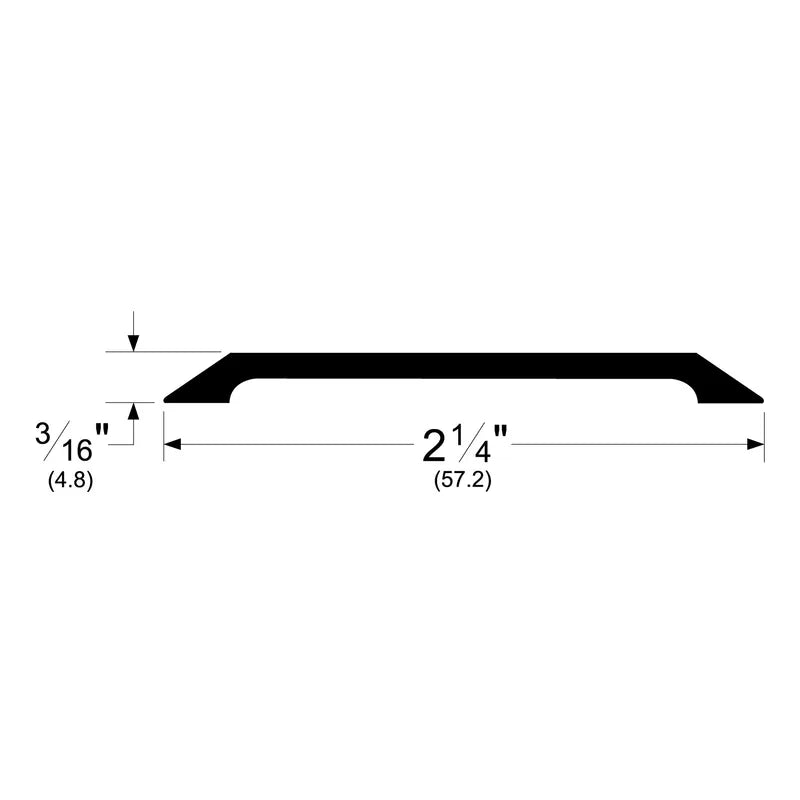

The 173 Series Commercial Flat Saddle Threshold is designed for smooth transitions with its 3/16" high x 2-1/4" wide top. It prevents mud, ice, and snow buildup for easy maintenance. This fire-rated and wheelchair accessible threshold is available in various finishes and can be custom cut to size. It creates an even sealing surface when use with Automatic Door Bottoms.
Features
-
Low profile
-
Smooth top
-
Wood screw standard, other fasteners available
-
Barrier-free and fire rated
-
Can be used with automatic door bottom to create a smooth, even sealing surface
Benefits
-
ADA accessible
-
Creates a smooth transition under door
-
Prevents the accumulation of unwanted elements
-
Easy maintenance
-
Custom cut to size
Specifications
-
Base Material: Aluminum, Brass
-
Fasteners: SMS #10 X 1"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 3/16"
-
Weight: 0.26 lbs
-
Width: 2 1/4"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
