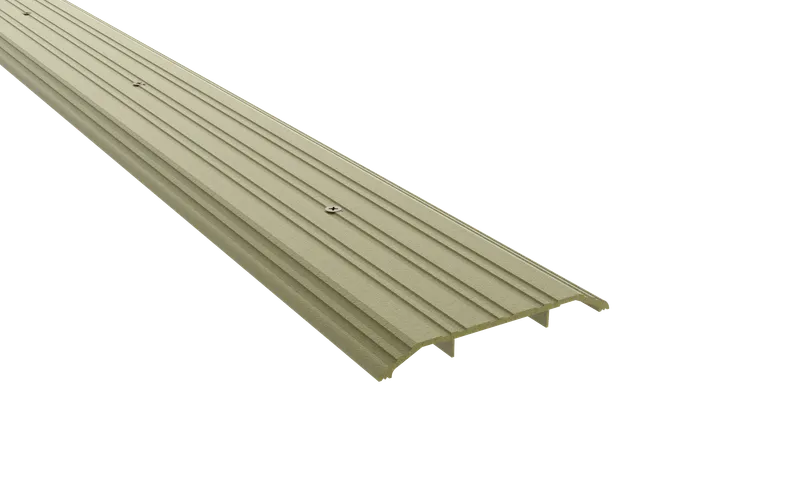

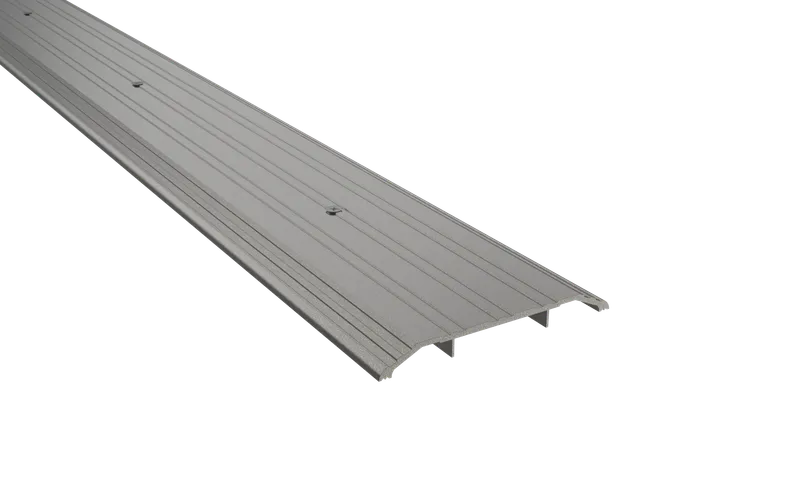

The 170 Series Commercial Flat Saddle Threshold is a 1/2" x 4" threshold with a fluted top, designed to create a seamless transition between two floor surfaces. It is ADA compliant and fire rated for added safety. Made from high quality aluminum, it provides long-lasting performance and helps insulate a room.

Features

• Low profile

• Wood screw standard, other fasteners available

Benefits

• ADA accessible

• Creates a smooth transition between different flooring surfaces

• Made from high-quality aluminum

• Provides insulation and long-lasting performance

Specifications

• Base Material: Aluminum, Brass

• Fasteners: WS #10 x 1.5"

• Maximum Length: 185"

• Minimum Length: 24"

• Overall Height: 1/2"

• Profile Width: 4"

• Weight: 0.69 lbs

Certifications

• UL 10C positive pressure

• UL 4L10 listed

• Americans with Disabilities Act (ADA) Compliant

• ANSI/BHMA A117.1

• ANSI/BHMA A156.21 Thresholds

Insert Colors

• L-Notch

• U-Notch
