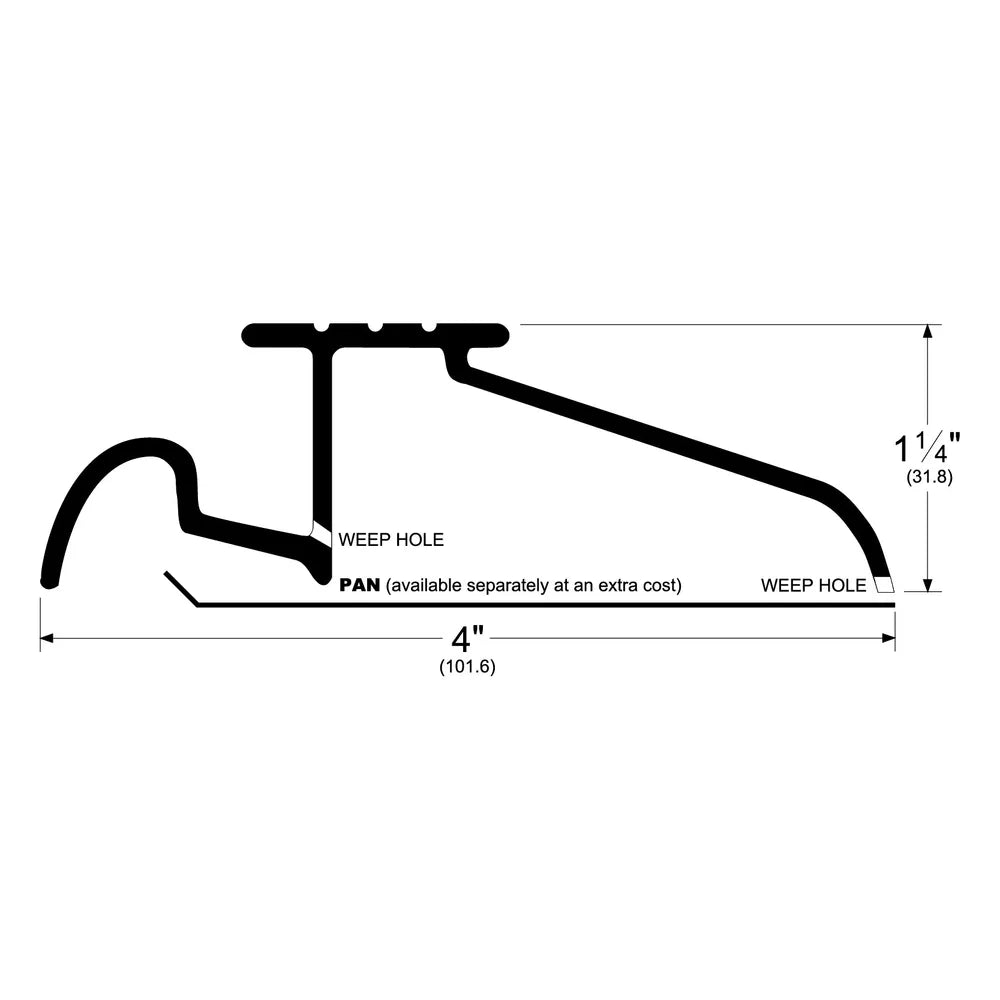

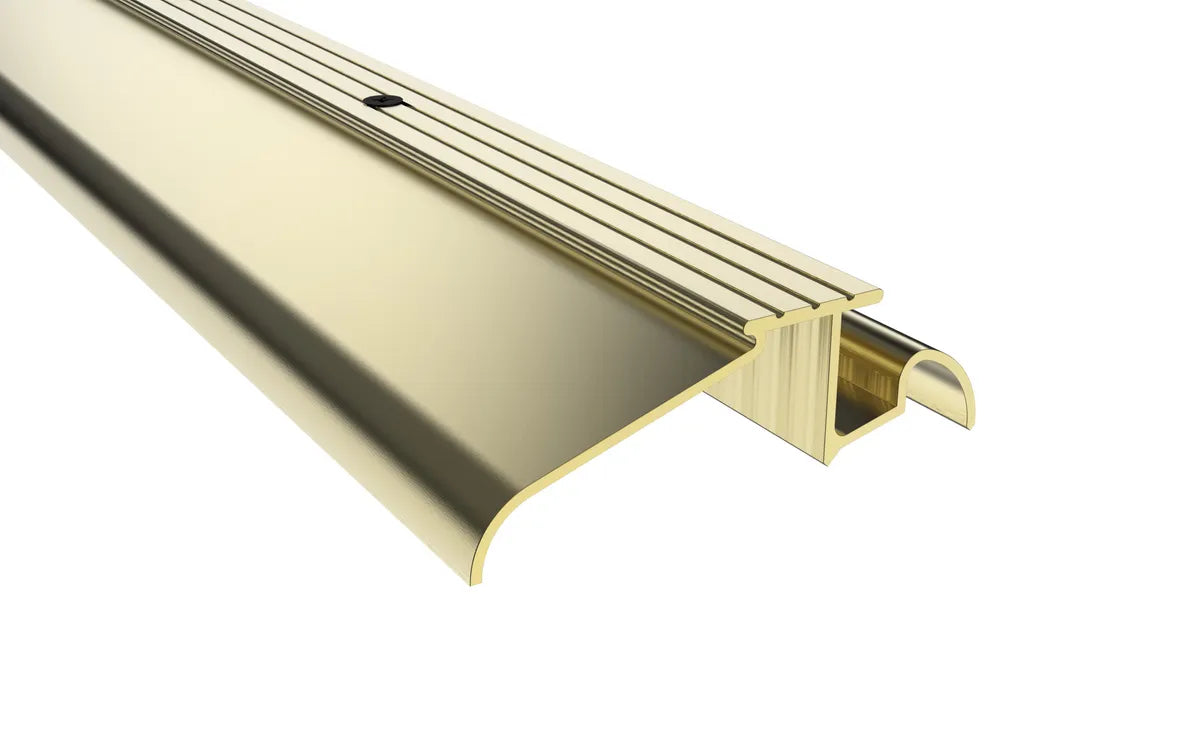

The 146 Residential Interlocking Threshold with Water Return is a 4" x 1-1/4" interlocking threshold with a 61 J-hook. It is designed to prevent water from entering under the door by catching and redirecting it to the outside through interior and exterior weep holes. The aluminum water return pan (PAN) is sold separately.
Features
-
Water return
-
Furnished with #61 hook & nails
-
Alternate hooks available
-
Optional pan sold separately
Benefits
-
Catches water which may blow or run under door, returns to outside
-
Easy installation
Specifications
-
Base Material: Brass
-
Fasteners: WS #10 x 2.5"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1 1/4"
-
Weight: 0.66 lbs
-
Width: 4"
Certifications
-
No certifications for this product
