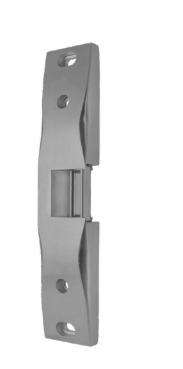

9910 ELECTRIC STRIKE: Designed for use with all PDQ 6300 / 6400 Rim Exit Devices
FEATURES:
Completely surface-mounted
Accommodates 1/2” to 3/4” (13mm–19mm) latch projection
Mounting spacer included to provide enhanced latch engagement
Stainless steel ensures superior strength and creates a sleek aesthetic design
Horizontal adjustment ensures proper latch positioning to compensate for door misalignment – up to 1/4” (6.4mm)
Conventional keeper design
Plug-in wire connectors
Lockdown holes for secure mount
HEX socket head cap screws for added support
Installation tool included
Non-handed
CERTIFICATIONS, LISTINGS,
COMPLIANCES:
1,500lbf Static
70 ft-lb Dynamic
250,000 Cycles
Fail-Secure
3-Hour Fire Rated
CURRENT: 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
WARRANTY: 5 Year Limited Warranty
FINISH: 630 (US32D) Satin Stainless Steel
