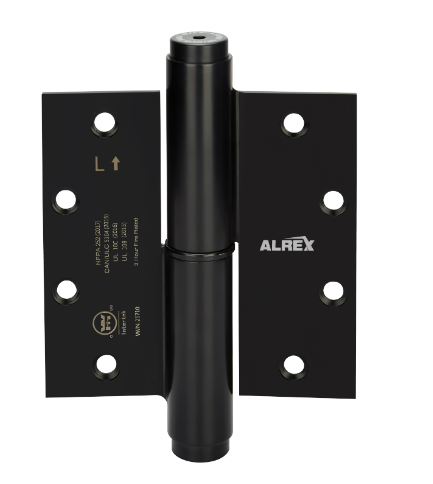

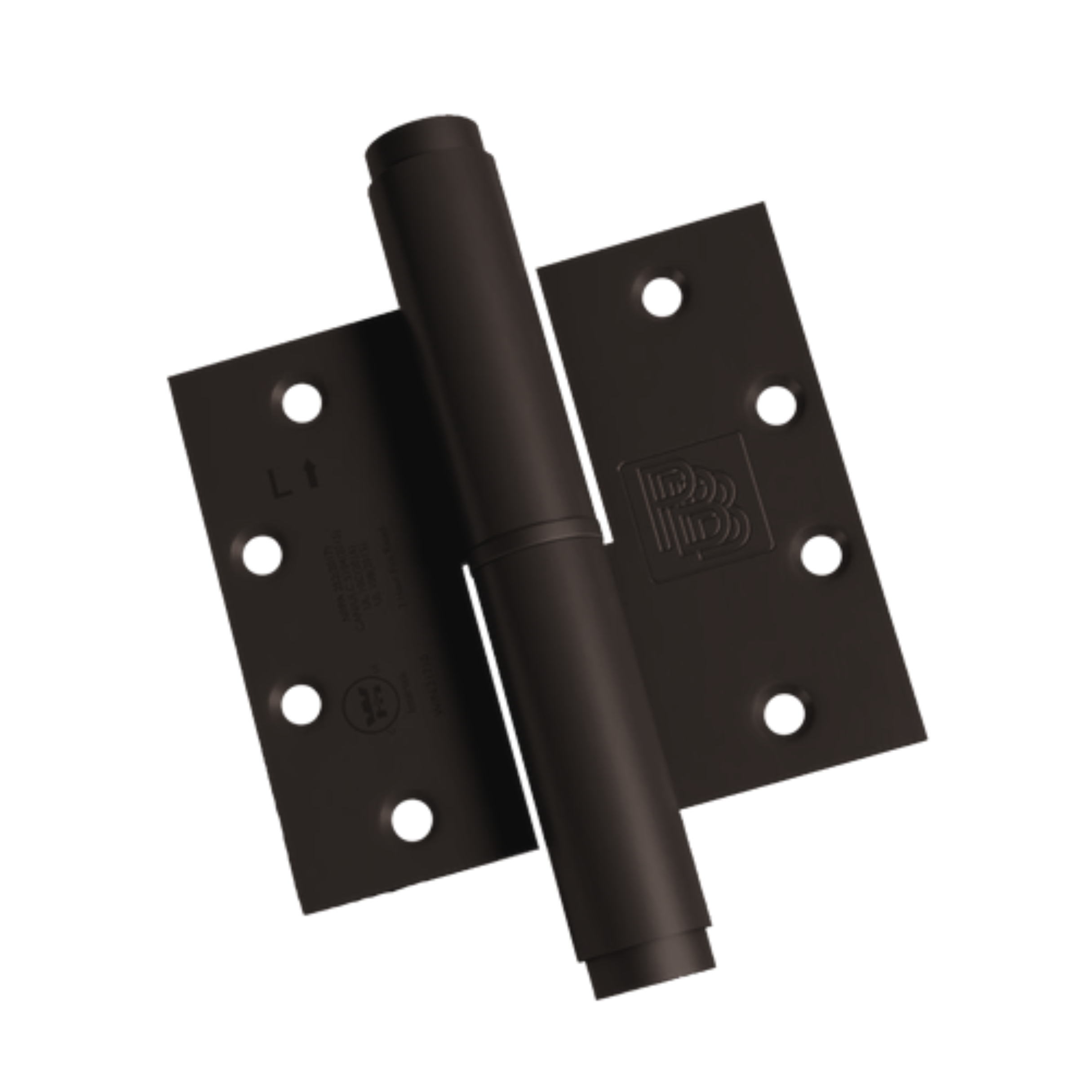

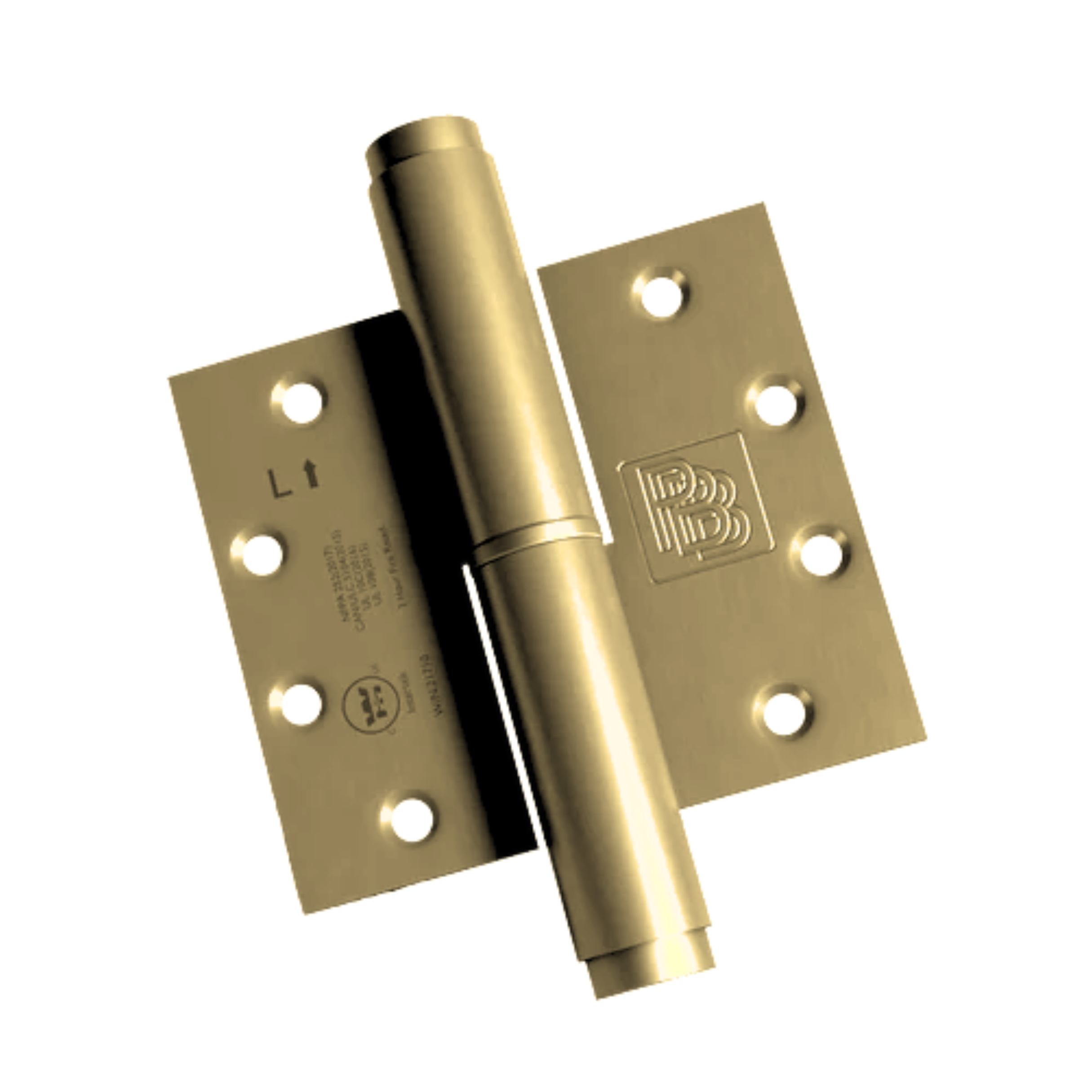

PBB Alrex PRO AXP-C Hydraulic Door Closer Hinge

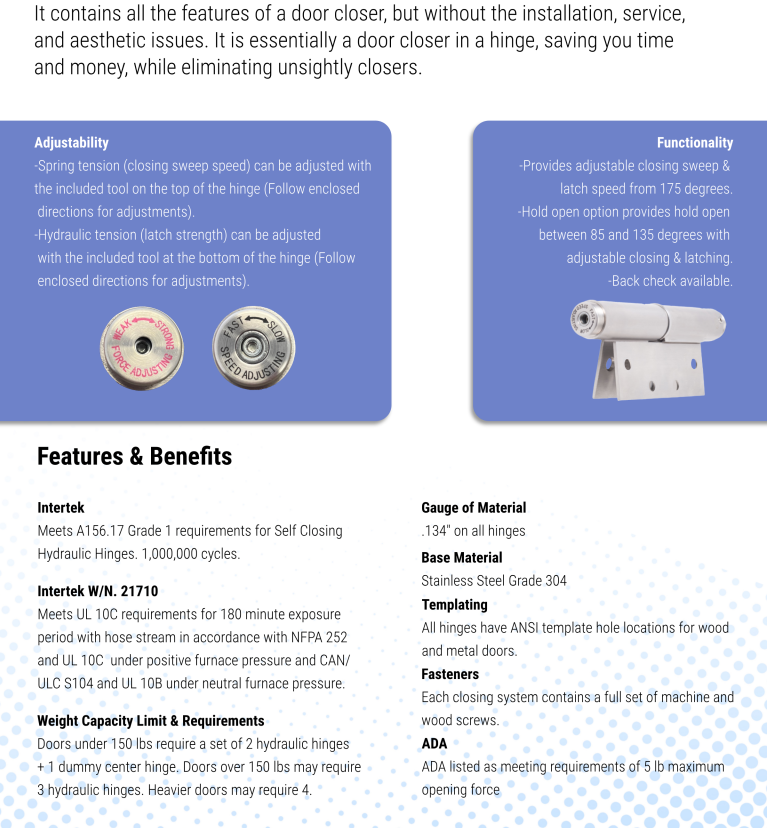

• Meets A156.17 Grade 1 requirements for self closing hydrolic hinges, 1,000,000 cycles
• Meets UL 10C requirements for 180 minute exposure period with hose stream in accordance with NFPA 252 & UL 10C under positive furnace pressure & CAN/ULC S104 & UL 10B under neutral furnace pressure

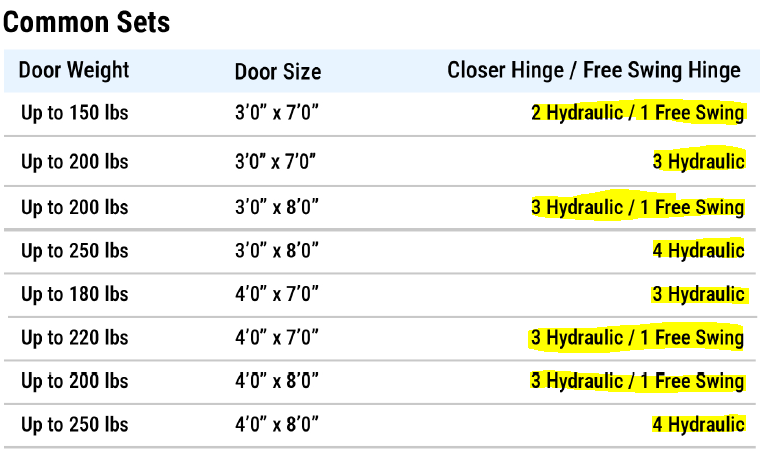

• Doors under 100lbs require a set of 2 hydrolic hinges + 1 dummy center hinge, Doors 100 lbs up to 150 lbs may require 3 hydrolic hinges. Heavier doors may require 4.
• Gauge of material
• .134"
• Stainless steel grade 304
• Each closing system contains a full set of machine and wood screws
• ADA listed as meeting requirements of 5 lb maximum opening force

Templates:
