General Features
- Cam lock
- Accepts Medeco #32-0201 6-pin large format interchangeable core cylinder. Locks are sold less cylinders.
- For Medeco "Keymark" cylinders, see Olympus 720LM/DM
- ANSI/BHMA: E07261
- Barrel diameter: 1-1/8"
- Across flats: 7/8"
- Mounting cutout: 1-5/32"
- Max. material thickness: 1-1/8"
- Min. material thickness: 0.08"
- 26D finish
- Packed 10 per box
- Includes all parts for key-retaining or non-key-retaining function
- See all alternate cams and accessories
- WARNING (California Proposition 65)
Available Separately
- long inverted cam 720-3-3
- extra long 3" vertical cam 720-3-4
- long inverted cam with shallow offset 720-3-5
- for extending the face of the lock out from casework material Trim collars

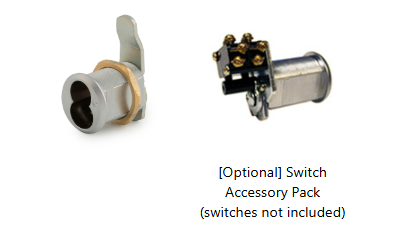

- turns your cam lock into an electronic switch lock (see our for more information) SW-1 switch accessory pack
- Double D Metal Punch (punches a 7/8" x 1-1/8" cutout in sheet metal for cam lock installation) CL-MP-118
Definitions
- Standard function = key removable in the locked and unlocked positions
- Key-retaining function = key removable in the locked position only
Includes
- stabilizer plate 720-PL3
- short inverted cam 720-3-1
- long vertical cam 720-3-2
- All parts for lost-motion or key-retaining functions
Cores for Locks
- All locks sold less core
- Medeco 6-pin IC core cylinder #32-0201. For more information see. www.medeco.com
Documents
Testing
Dimension Illustrations
