Simplify cabinet and locker access with the Olympus Lock 7445 Combi-Cam Ultra. This four-dial combination cam lock offers up to 10,000 possible combinations, along with key override and patented code discovery for access when a combination is forgotten.
Users can choose a personal combination, while an authorized manager can use the matching override key to open the lock and retrieve the existing code for resetting. Override keys are sold separately.
Designed for cabinet doors, drawers, and lockers, the 7445 supports horizontal or vertical mounting on flush or overlay applications. Olympus identifies it as a retrofit for a standard 3/4" cam lock; confirm cylinder length, mounting clearance, and cam fit before ordering. Clearly marked locked and unlocked indicators help users identify the lock’s position.
Features and Specifications
-
Combination: Four resettable dials with up to 10,000 combinations.
-
Backup access: Key override with code retrieval.
-
Construction: Heavy-duty die-cast metal body.
-

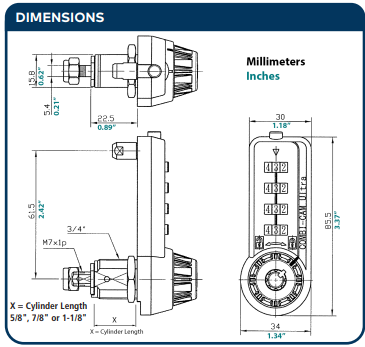

Barrel diameter: 3/4".
-
Cylinder lengths: 5/8", 7/8", or 1-1/8".
-

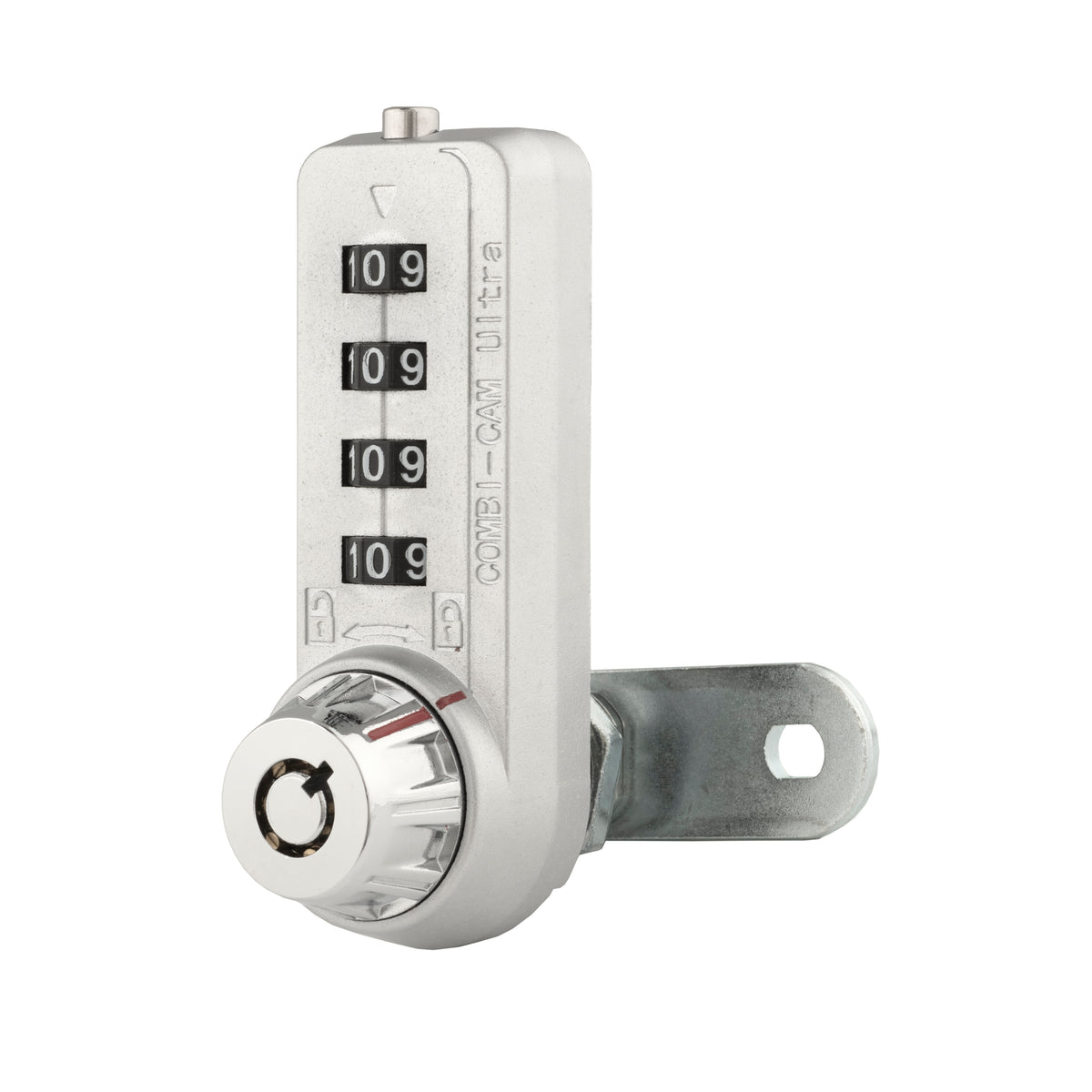

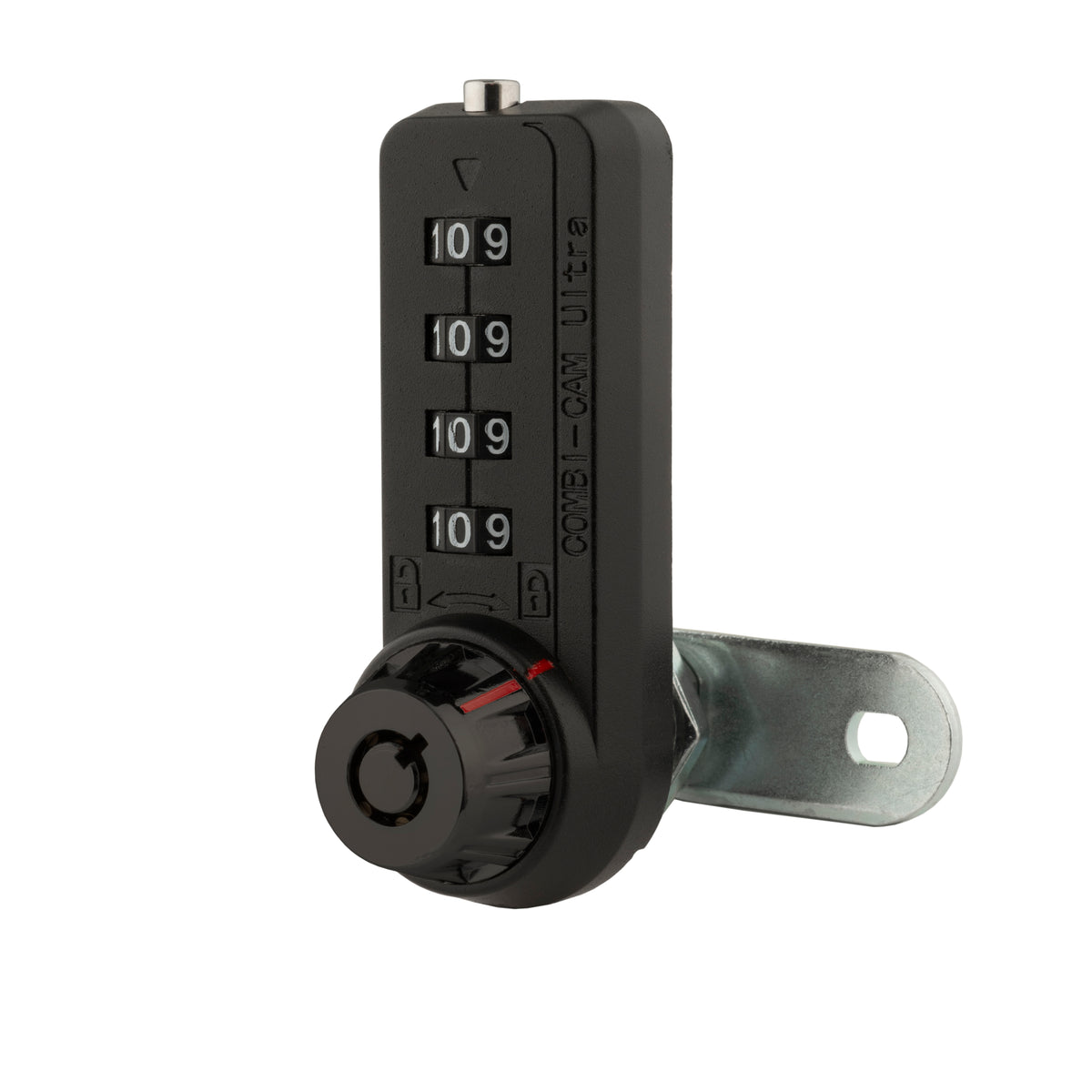

Finishes: Chrome or black.
-
Included cam: 1-1/2" dual-hole straight cam.
-
Cam rotation: 90° left or right, depending on stop-cam placement.
-
Optional cams: Olympus 100 Series straight and offset dual-hole cams.
Models and Ordering Options
| Model | Finish | Cylinder Length | Maximum Material Thickness | Override Key Code |
|---|---|---|---|---|
| 7445S-KA374 | Chrome | 5/8" | 3/8" | 374 |
| 7445S-KA401 | Chrome | 5/8" | 3/8" | 401 |
| 7445S-BLK-KA168 | Black | 5/8" | 3/8" | 168 |
| 7445S-BLK-KA401 | Black | 5/8" | 3/8" | 401 |
| 7445M-KA374 | Chrome | 7/8" | 5/8" | 374 |
| 7445M-KA401 | Chrome | 7/8" | 5/8" | 401 |
| 7445M-BLK-KA374 | Black | 7/8" | 5/8" | 374 |
| 7445M-BLK-KA401 | Black | 7/8" | 5/8" | 401 |
| 7445L-KA374 | Chrome | 1-1/8" | 7/8" | 374 |
| 7445L-KA401 | Chrome | 1-1/8" | 7/8" | 401 |
| 7445L-BLK-KA374 | Black | 1-1/8" | 7/8" | 374 |
| 7445L-BLK-KA401 | Black | 1-1/8" | 7/8" | 401 |
Cylinder length and maximum material thickness are different measurements. Select the model that accommodates your door or drawer thickness.
Included Components

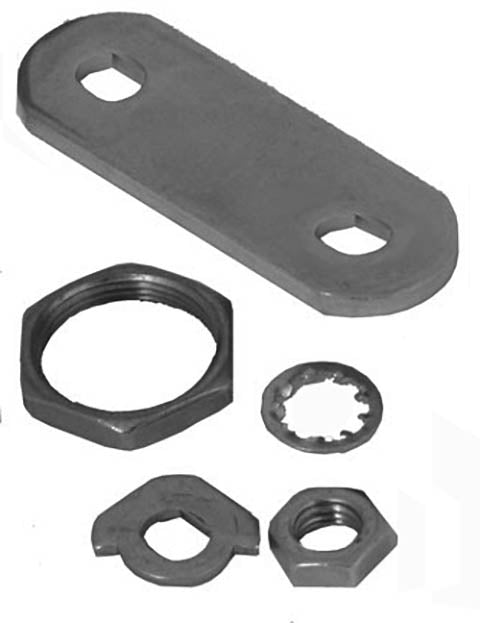

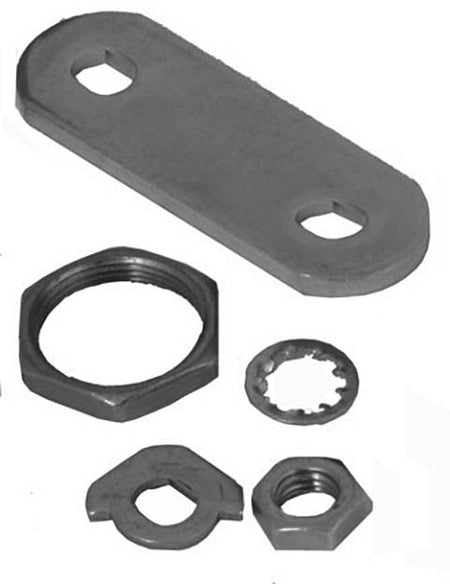

Pronged wood washer, fixing nut, 90° stop cam, cam screw, lock washer, and 1-1/2" dual-hole straight cam.
Optional Override Keys
Override keys are available in sets of two:
-
7445-KEYS-168: Key code 168.
-
7445-KEYS-374: Key code 374.
-
7445-KEYS-401: Key code 401.
Choose the key code that matches the lock. One matching key operates locks within the same key-code group.
Frequently Asked Questions
Are override keys included?
No. Matching override keys must be ordered separately.
Can a forgotten combination be recovered?
Yes. The matching override key provides access and allows discovery of the existing combination.
How do I change the combination?
Set the dials to the current opening code. Hold the reset button, turn the dials to your new combination, then release the button.
What is the factory combination?
The factory default is 0-0-0-0. Change it before putting the lock into service.
How do I lock it after closing?
Rotate one or more dials away from the opening combination after closing the lock.
