General Features
- Cabinet lock - door/drawer latch lock
- Field reversible into all 4 handings. Handings can be easily changed in the field.
- Easily rekeyable via cylinder release mechanism
- Will accept other manufacturer's Schlage compatible deadbolt cylinders
- Locks are handed at factory: For door locks, specify left-hand (L78L) or right-hand (L78R) when ordering. Can be changed in the field. See handing chart.
- Locks are handed at factory: For drawer locks, specify vertical-hand (L78V) or inverted-hand (L78I) when ordering. Can be changed in the field. See handing chart.
- Barrel diameter: 1-1/8"
- Barrel lengths: 1-1/8" or 1-3/8" (specify barrel length when ordering)
- 26D or US3 finish
- Includes matching strike (stamped brass) with alignment markfor easy installation L78ST
- Packed 10 per box
- US Patent Nos: 4,899,563; 7,874,189 B2
- WARNING (Proposition 65)
Available Configurations

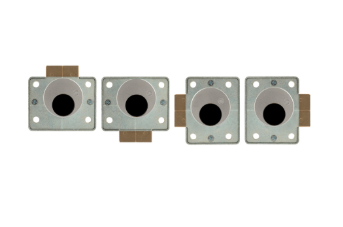

NOTE: This lock is field reversible. Handings can easily be changed via set screw. One lock can be changed to any of four handings: Door RH, Door LH, Drawer VH or Drawer, IH.
Available Separately
- Plastic spacers 10-351
- Strikes lipped style
- Trim ring TR78
- L78-KNOB optional thumb-turn for inside release. See picture at top right. Typically used in changing rooms.
Keying
- Schlage C keyway
- 6 pin solid brass cylinder
- Cylinder body chambers Lori replacement plugs
- 5 pin keyed alike or keyed different
- Stocked KD, KA# 101 or KA# 102
- Custom master keying - 6 pin standard
Includes
