General Features

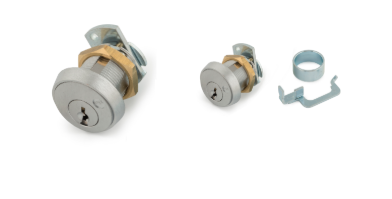

- Cabinet lock - for metal file cabinets
- Easily rekeyable via working top slide and patented retainer staple cylinder release mechanism
- Directly replaces HON F24/F28 vertical file cabinet lock
- For use in HON vertical file cabinets produced after 1988. Also works with HON 1000 Series vertical file cabinets
- Pin tumbler, 5-pin cylinder
- Barrel diameter: 3/4"
- Material: Zinc die cast
- Includes: 2 keys per lock and all parts necessary for complete replacement of the lock
- 26D finish
- Packed 10 per box
- U.S. Patent Nos: 5,038,589; 5,737,950
- WARNING (California Proposition 65)
Available Separately
- T37-NKIT number kit for T37 locks includes the number ring and trim collar
- T37DC-NP replacement number rings

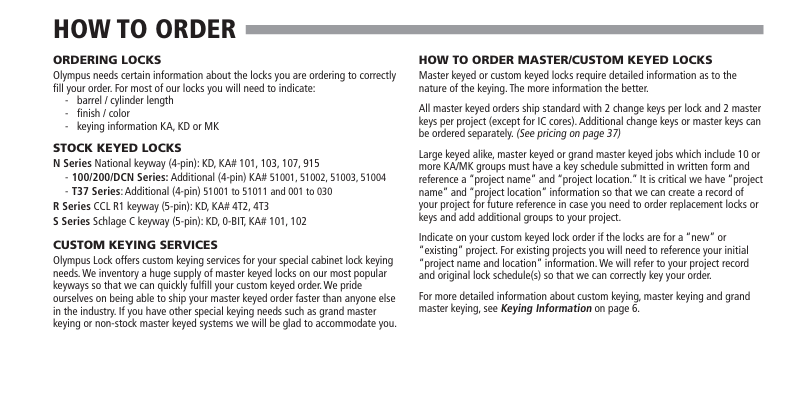

Keying
- National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
- KD/KA - 4 pin standard
- KA# 101, 103, 107, 915
- Master keyed - 5-pin standard
- Use for rekeying N1 Pin Kit
- 4-pin keyblank = (equivalent to NA14, 1069L) KBN-4-NP
- 5-pin keyblank = (equivalent to NA12, 1069LA) KBN-5-NP
