General Features

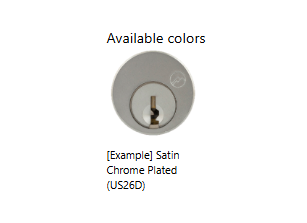

- 26D finish
- Cylinder length: 1-1/8"
- Packed 10 per box
- U.S. Patent Nos: 5,038,589; 5,737,950
- See all alternate cams and accessories
- WARNING (California Proposition 65)
Available Separately
- See our wide selection of alternate cams for use with this cam lock Alternate cams
- Cam shifter for door key-retaining function DCNP-200-KDR
- Cam shifter for drawer key-retaining function DCNP-200-KR
- Finger pull DCNP-300-FP
- Number ring plate T37DC-NP
- Pronged wood washer DCNP-SPW
- Mounting washer for glass DCNP-GW spacer collars (for use with B7 cam locks on metal or thin gauge material TRB7
Documents
Keying
Additional keys available separately. See keyblanks section.
Dimension Illustrations
Definitions
- Standard function = key removable in the locked and unlocked position
- Key-retaining function = key removable in the locked position only
- Key-retaining function requires alternate cam shifters (sold separately)
- Key-retaining door cam shifter DCNP-200-KDR
- Key-retaining drawer cam shifter DCNP-200-KR
Includes
- In-bent / out-bent cam DCNP-100-BC
- Straight cam DCNP-100-SC
- Anti-rotation plate DCNP-500-ARP
