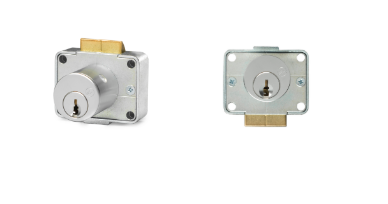

General Features
- Cabinet lock - drawer latch lock
- Field reversible into all 4 handings
- For cabinet door lock, see 999
- Easily rekeyable via set screw cylinder release mechanism
- Pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 1" or 1-3/8" (specify barrel length when ordering)
- Barrel diameter: 7/8"
- Locks are handed at the factory; specify vertical or inverted when ordering. See handing chart.
- 26D finish
- Includes matching strike (stamped brass) with alignment mark for easy installation 999-STRIKE
- Packed 10 per box
- US Patent: 4,899,563; 7,874,189 B2
- WARNING (California Proposition 65)
Available Configurations
- Drawer-vertical = 998V
- Drawer-inverted = 998I
Available Separately

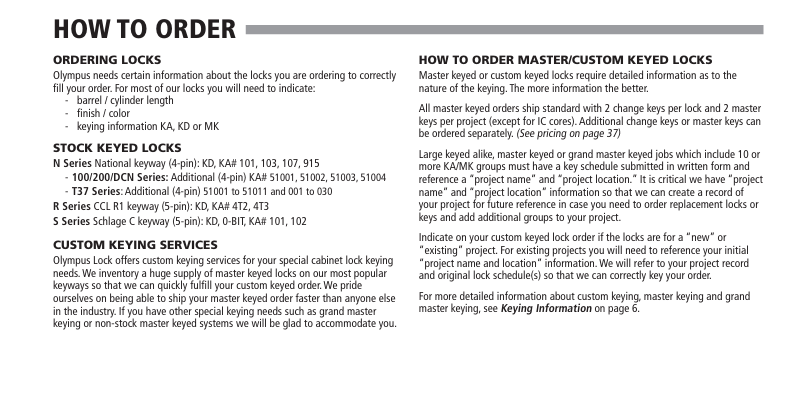

Keying
- National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
- KD/KA - 4 pin standard
- KA# 101, 103, 107, 915
- Master keyed - 5-pin standard
- Use for rekeying N1 Pin Kit
- 4-pin keyblank = (equivalent to NA14, 1069L) KBN-4-NP
- 5-pin keyblank = (equivalent to NA12, 1069LA) KBN-5-NP
