General Features
- Cam Lock - Cascade Series
- 5-disc tumbler key system
- Will key into CompX/National C8051 or similar disc tumbler products
- Locks ship with cylinder installed for faster installation
- 90-degree cam rotation, key removable in both locked and unlocked positions

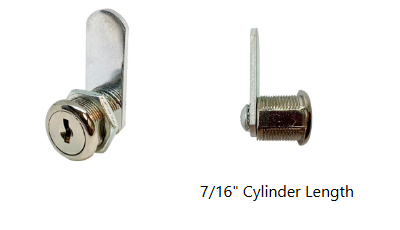

- 951: Cylinder length 7/16"
- 951: Fits maximum material thickness 7/64"
- Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal [E07262]
- Ships with one each straight and offset square-drive reversible cams (additional cam sizes available separately)
- Includes eyelet spur-washer for more secure mounting and anti-rotation
- Mounts in standard 3/4" diameter hole
- US Patent Nos. 11,959,316, D1016604
- Additional cylinder lengths available. See items: 952, 953, 954, 955, 960, and 961
- Packed 15/box, 120/case
- WARNING (California Proposition 65)
Includes
Keying
- Cascade Series 5-disc tumbler keyway
- Will key into CompX/National C8053 or similar disc tumbler products
- Stock KA# C346A, C390A, C413A, C415A, C420A, C452A
- Stock KD/MKKD - 120 total stock keyed different key codes
- Custom Keying: MKKA or combination MKKA/MKKD to schedule, up to 380 total MKKD codes available if custom keyed
- Includes 2 change keys per lock
- All master keys sold separately
- Use for rekeying D1 Keying Kit
- For specific cut key and key blank part numbers, see Key Chart
