General Features
- Cabinet lock - deadbolt door lock
- Accepts Medeco/Yale IC core
- Standard function: locks are non-handed with a key removable in both the locked and unlocked positions
- Optional key-retaining* function: for part-numbers and handing, see key retaining chart
- Barrel diameter: 1-1/8"
- Barrel length 1-3/8"

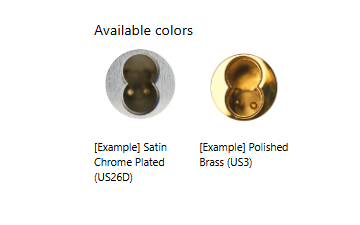

- 26D or US3 finish (see finish chart)
- Packed 10 per box
- *Key-retaining = key removable in the locked position only
- WARNING (California Proposition 65)
- (E07121) ANSI/BHMA Grade 1
Available Separately
- Plastic spacers 10-348, 10-349, 10-350
- Angle strikes 12-1, 12-2, 12-3
- Bar strikes 56-1, 10-054, 10-055, 10-057, 10-058
- Slotted strike 10-052, 12-5
- Frameless drawer strike 12-4
- Trim ring TR78
- Through-bolt trim plate 1/8" thickness ETS1-125
- Through-bolt trim plate 1/4" thickness ETS1-250
- Through-bolt trim pull ETS1-PL
- Through-bolt trim spacer template ETST1
Cores for Locks
- All locks sold less core
- Medeco 6-pin IC core cylinder #32-0201. Requires Medeco #94-0009 cylinder spacer. For more information see. www.medeco.com
- Yale 1210 Series 6-pin IC core cylinder. For more information, see. www.yalelock.com
- ASSA's Yale 6 pin compatible large format IC core. For more information, see www.assalock.com
