General Features
- 929R Ratchet lock - for bypassing sliding doors
- Will Retrofits a Best 3S prep, but uses Schlage full-size IC core
- Accepts Schlage standard or Primus/Everest large format interchangeable core cylinders
- ANSI/BHMA: E07191
- Includes 729RS-1 strap: 6" stainless steel strap for 3/16" to 1/4" glass thicknesses
- Includes plastic thumbturn to operate lock without key 7788-PA-D
- Zinc die cast cylinder housing, steel strap
- Fits 6 or 7 pin cores

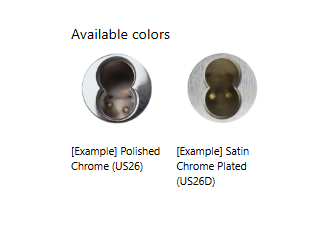

- US26 or US26D finish
- WARNING (California Proposition 65)
- WARNING (California Proposition 65)
Available Separately
- 729RS-2 - optional 6" stainless steel strap for 3/8" material thickness (see dimensions below)
- 729RS-3 - optional 6" adjustable stainless steel strap for up to 5/8" material thickness. This strap is adjustable and fits min. 3/8" material and maximum 5/8" material (see dimensions below)
Keying
- N/A - this lock is sold less core
- Will accept Schlage full=size interchangeable cores. See Schlage website for more information. www.schlage.com
Dimension Illustrations
Documents
Testing
Complies with clause 7.2.1, 7.2.3, 7.3, 8.3 and 8.4 of standards for cabinet locks (Grade 1). ANSI/BHMA A156.11 ANSI
