Olympus - 829R 1/4" Schlage C Sliding Door Ratchet/Showcase

SKU: 829R 5-Pin KD US26D
$ 74.38
General Features
  • 829R Ratchet lock - for bypassing sliding doors
  • Easily rekeyable: remove the bottom plate, then remove the set screw to remove the cylinder
  • ANSI/BHMA: E07191
  • Includes 729RS-1 strap: 6" stainless steel strap for 3/16" to 1/4" glass thicknesses
Available Separately
  • 729RS-2 - optional 6" stainless steel strap for 3/8" material thickness (see dimensions below)
  • 729RS-3 - optional 6" adjustable stainless steel strap for up to 5/8" material thickness. This strap is adjustable and fits min. 3/8" material and a maximum 5/8" material (see dimensions below)

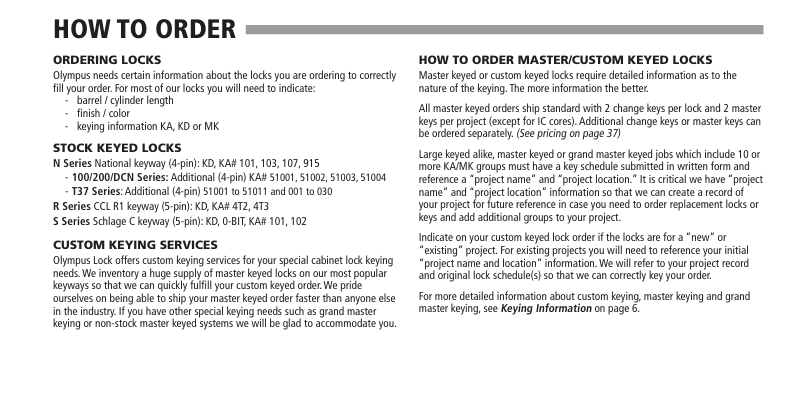

Keying
  • Schlage C keyway
  • 6 pin solid brass cylinder
  • Cylinder body chambers Lori replacement plugs
  • 5 pin keyed alike or keyed different
  • Stock KA# 101, 102
  • Custom master keying - 6-pin standard
Dimension Illustrations

Dimensions
729RS-2 Optional Strap
729RS-3 Optional Strap (adjustable)

Documents

Olympus Catalog Page
Architectural Specifications
Product Data Sheet
Press Release
Rekeying Instructions
Installation Instructions

Testing

Complies with clause 7.2.1, 7.2.3, 7.3, 8.3 and 8.4 of standards for cabinet locks (Grade 1). ANSI/BHMA A156.11 ANSI
