General Features
- Cabinet lock - deadbolt door lock
- Accepts Schlage standard or Primus/Everest large format (full size) interchangeable core cylinders
- Standard function: locks are non-handed with key removable in the locked and unlocked position
- Optional key-retaining* function: for part-numbers and handing see key retaining chart
- (E07121) ANSI/BHMA Grade 1
- Barrel diameter: 1-1/8"
- Barrel length 1-7/16"

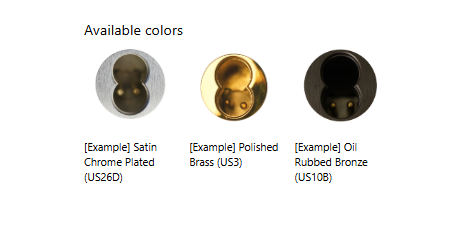

- 26D, US3 or 10B finish (see finish chart)
- Packed 10 per box
- *Key-retaining = key removable in the locked position only
- WARNING (California Proposition 65)
Available Separately
- Plastic spacers 10-348, 10-349, 10-350
- Angle strikes 12-1, 12-2, 12-3
- Bar strikes 56-1, 10-054, 10-055, 10-057, 10-058
- Slotted strikes 10-052, 12-5
- Frameless drawer strike 12-4
- Trim ring TR78
- Through-bolt trim plate 1/8" thickness ETS1-125
- Through-bolt trim plate 1/4" thickness ETS1-250
- Through-bolt trim pull ETS1-PL
- Through-bolt trim spacer template ETST1
Documents
Testing
(E07121) ANSI/BHMA A156.11 Grade 1
Cores for Locks
- N/A - this lock is sold less cylinder
- Will accept Schlage standard or Primus/Everest large format interchangeable core cylinders.
- For more information on Schlage IC core cylinders visit. www.schlage.com
Includes
Dimension Illustrations
