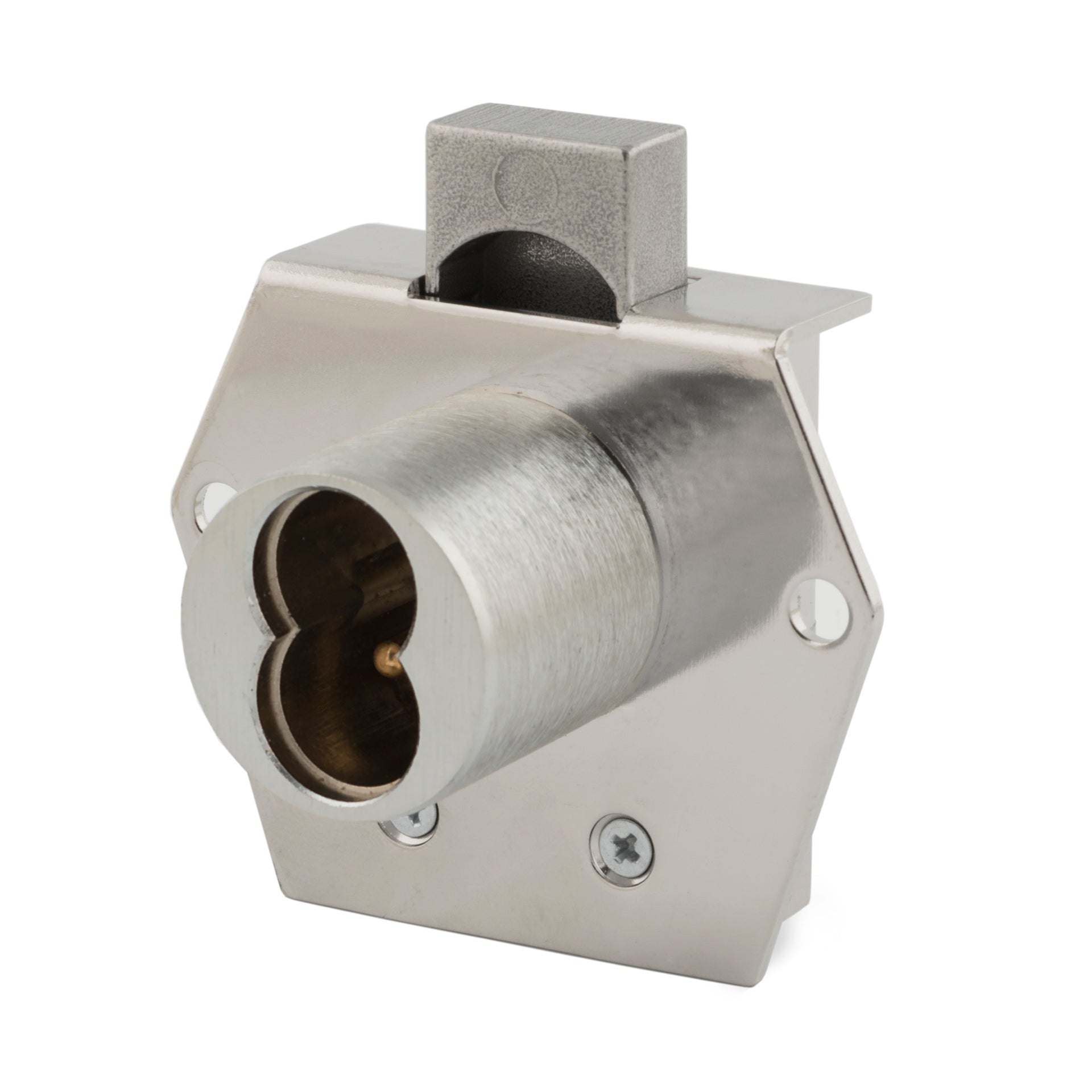

General Features
- Cabinet lock, Rim - surface mount
- Deadbolt locking mechanism
- Retrofits the Best 5L series cabinet locks

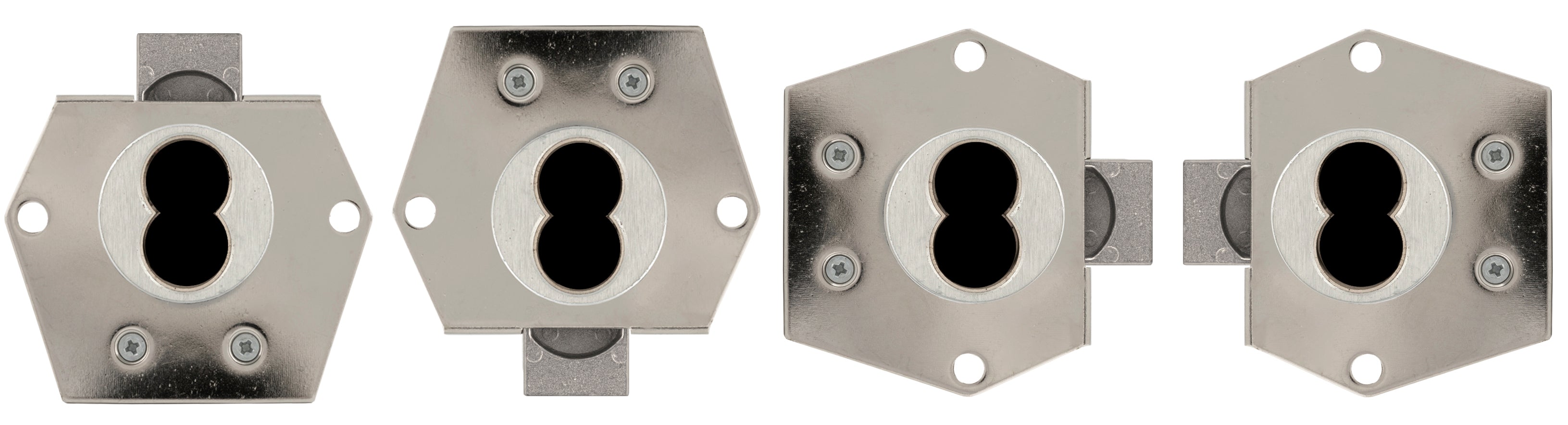

- Available in right-hand, left-hand, drawer-vertical, and drawer-inverted functions. See handing chart.
- Key retaining function available for DW-VH function. See handing chart.
- Accepts Best, Arrow, or equivalent small-format interchangeable core cylinders
- Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
- Barrel diameter: 1-1/8"
- Standard barrel length: 1-1/16"
- Optional barrel length: 1-3/8" (US26D finish only)

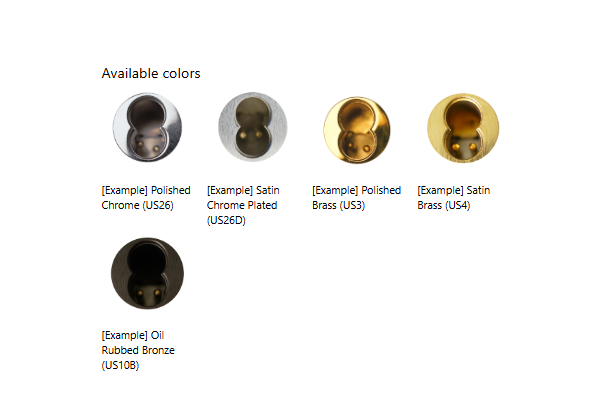

- US26, US26D, US3, US4 or US10B finish. See finish chart.
- Plastic spacers available separately WP725 and WP726
- Packed 10 per box
- WARNING (California Proposition 65)
Available Configurations
Documents
Testing
- Passed performance requirements ANSI/BHMA A156.11 Grade 1
Cores for Locks
- All locks sold less core
- Accepts Best, Arrow, Falcon or equivalent IC cores
- See our for available cores IC core section
Includes
Dimension Illustrations
