General Features

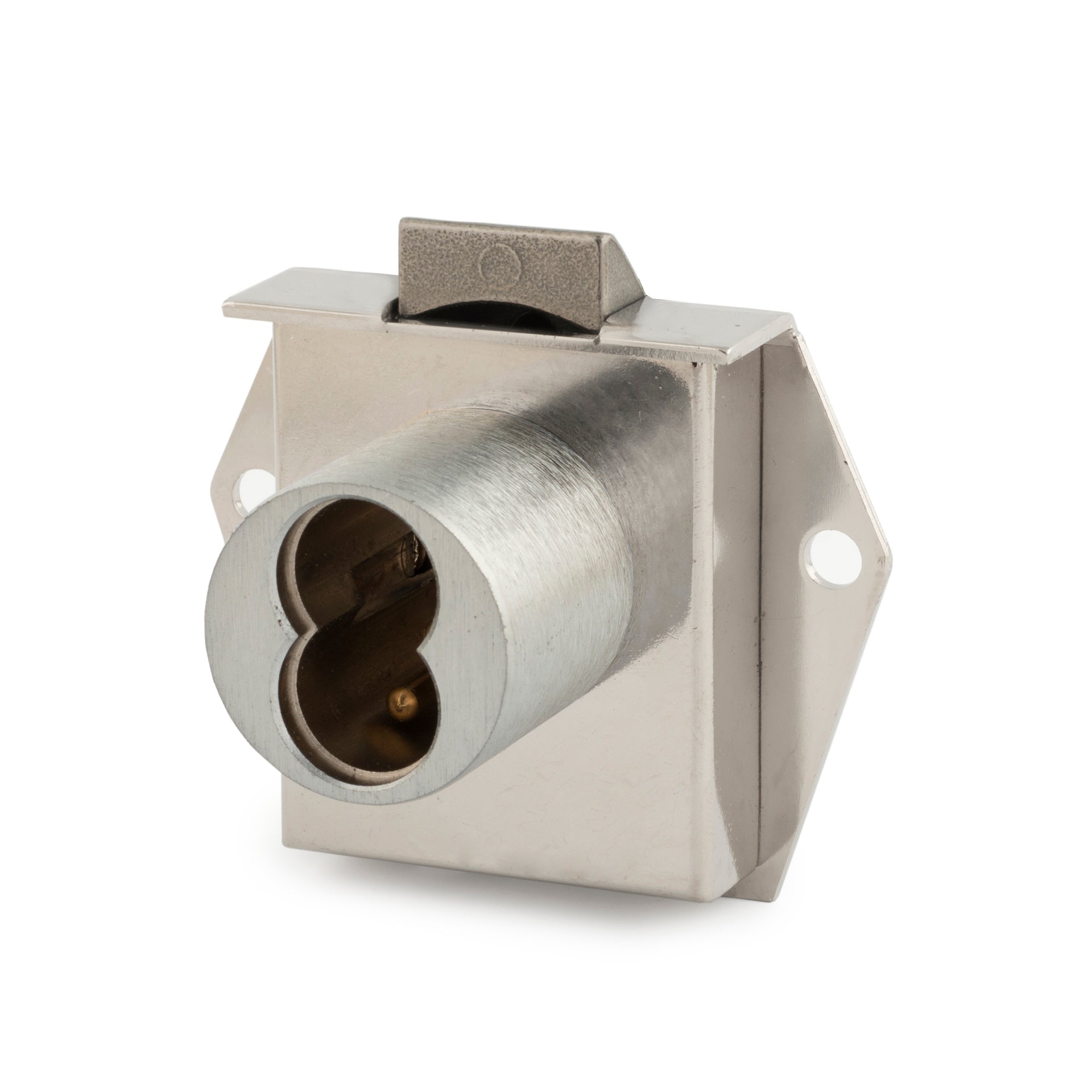

- Cabinet lock - Mortise mount
- Latchbolt locking mechanism
- Retrofits the Best 5L series cabinet locks
- ANSI/BHMA E07091 (cabinet door)
- ANSI/BHMA E07061 (drawer)

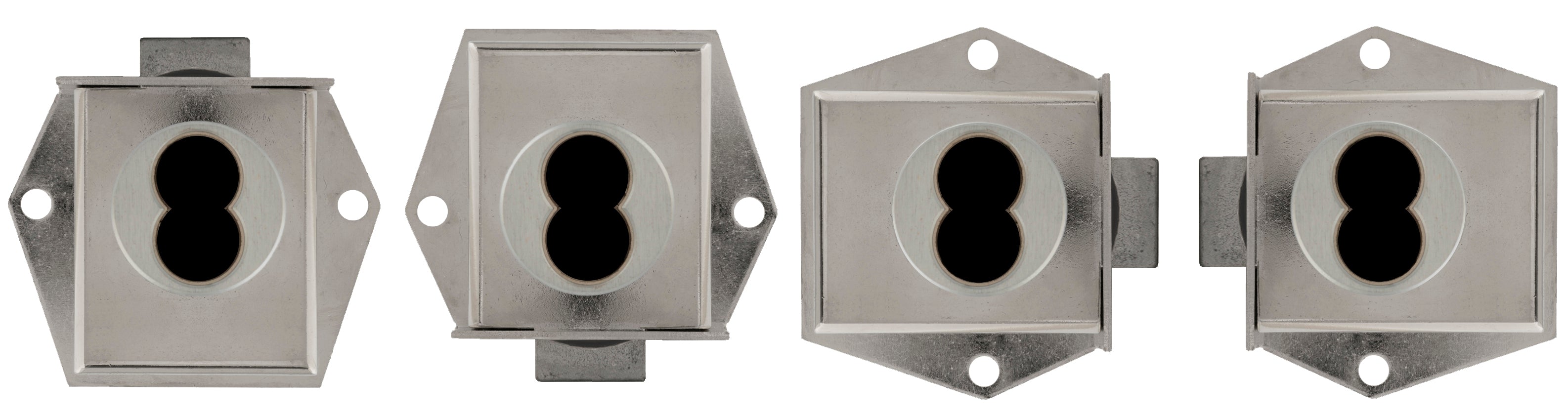

- Available in right-hand, left-hand, drawer-vertical, and drawer-inverted functions. See handing chart.
- Reverse latch function available for DW-VH or DW-IH applications
- Accepts Best, Arrow, Falcon, or equivalent small-format interchangeable core cylinders.
- Accepts 6 or 7 pin SFIC cores. See our SFIC compatible cylinders
- Barrel diameter: 1-1/8"
- Standard barrel length: 1-1/16"
- Optional barrel length: 1-3/8" (US26D finish only)

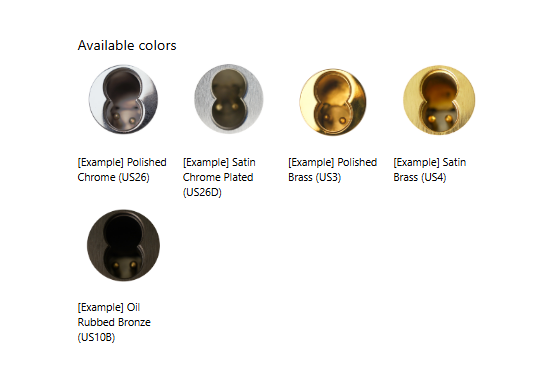

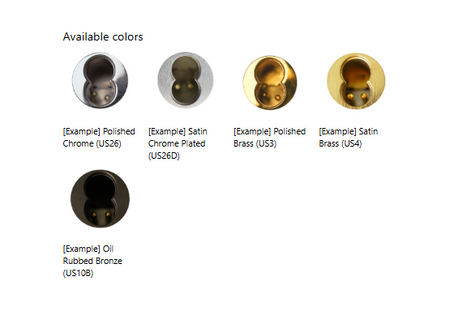

- US26, US26D, US3, US4 or US10B finish. See finish chart.
- Packed 10 per box
- WARNING (California Proposition 65)
- plastic spacers available separately WP725 and WP726
Available Configurations
Documents
Testing
- Passed performance requirements ANSI/BHMA A156.11 Grade 1
Cores for Locks
- All locks sold less core
- Accepts Best, Arrow, Falcon, or equivalent IC cores
- See our available cores IC core section
Includes
Dimension Illustrations
