General Features

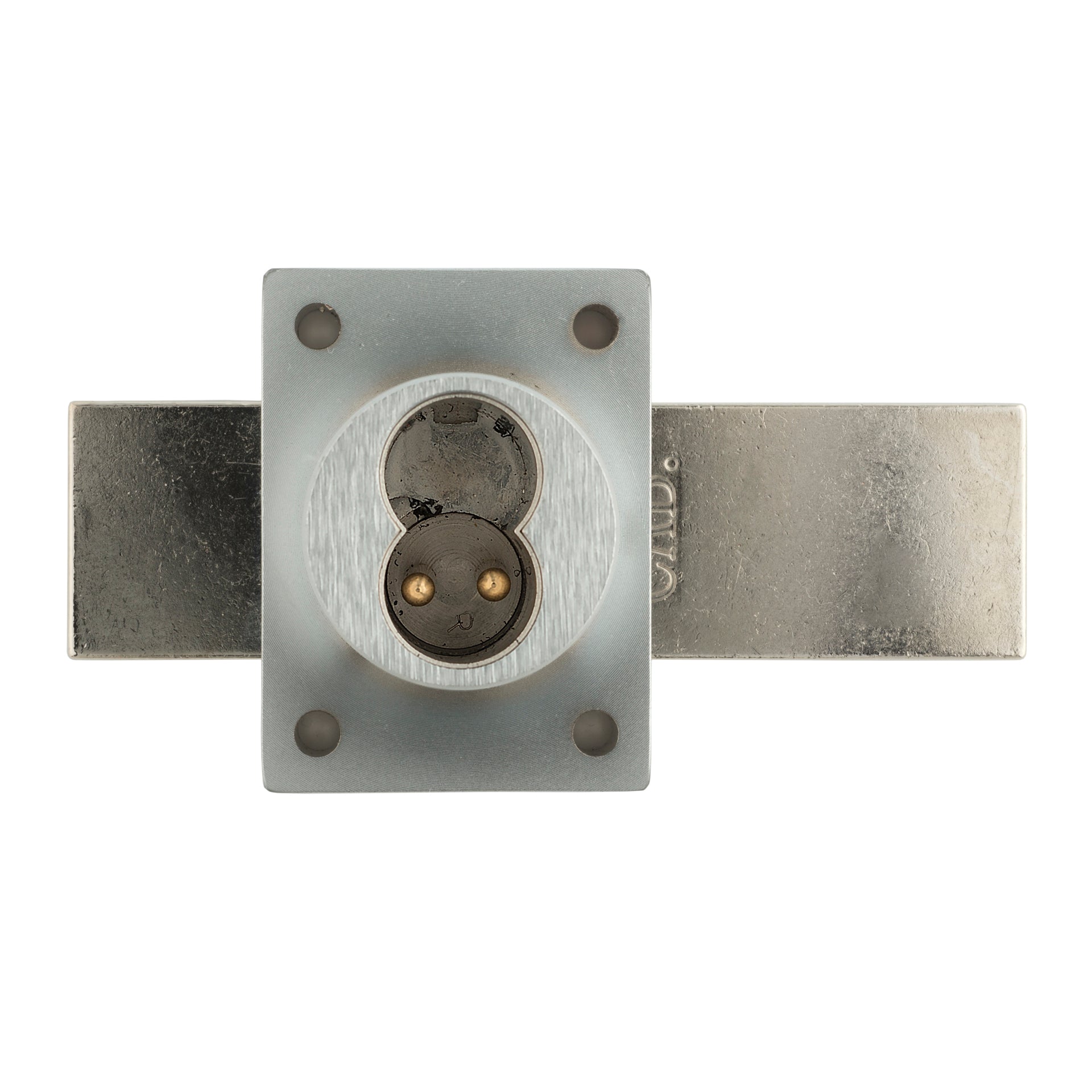

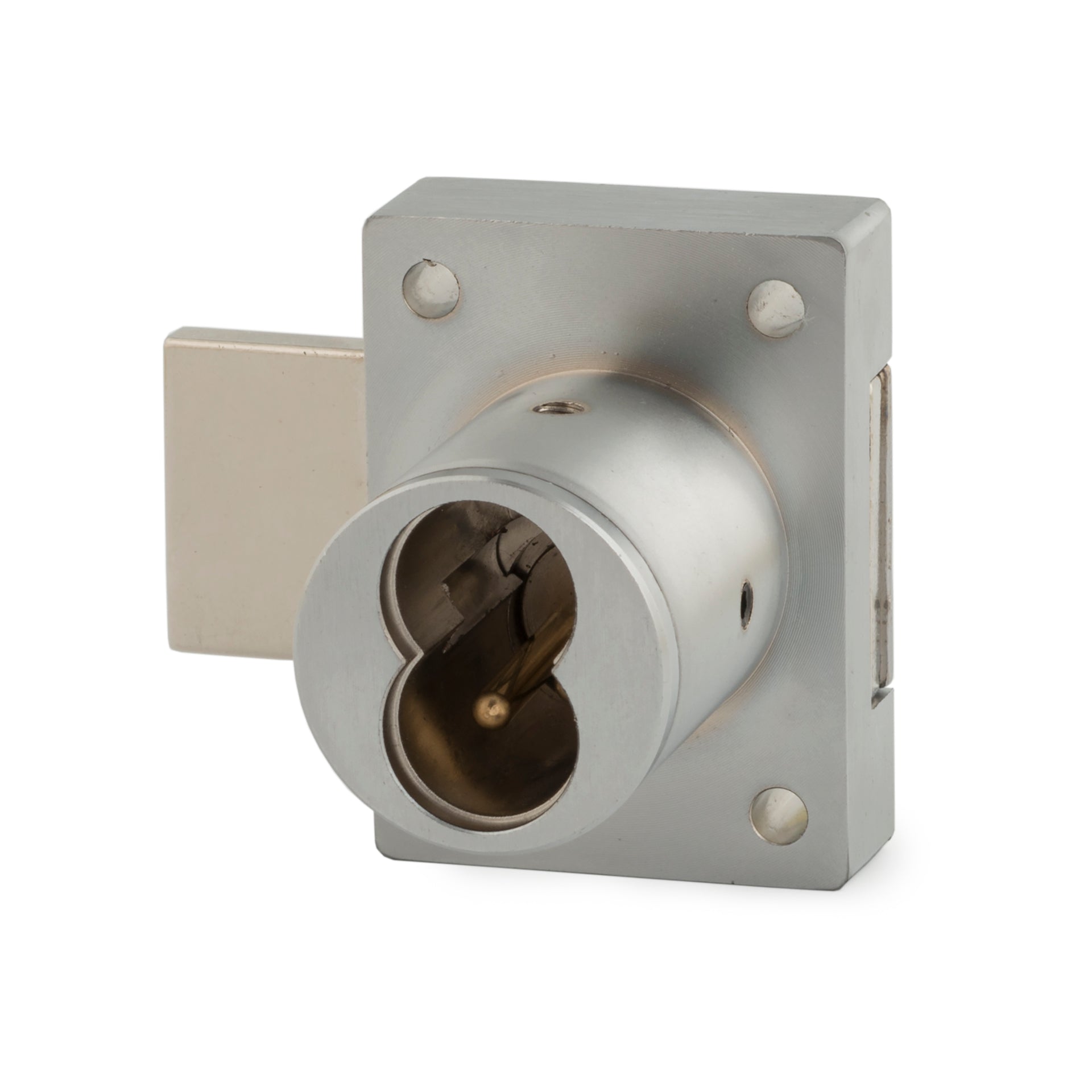

- 721DR deadbolt door lock
- Field reversible - includes all parts necessary to convert to a drawer lock
- Similar to Best original 3L series
- For cabinet drawer lock see 721DW.
- (E07121) ANSI/BHMA Grade 1
- Accepts Best, Arrow, Falcon or equivalent small format interchangeable core cylinders.
- Standard function: locks are non-handed with key removable in the locked and unlocked position.
- Optional key-retaining* function: for part-numbers and handing see key retaining chart
- Barrel diameter: 1-1/8"
- Barrel length 1-1/4" or 1-3/8"
- US26, US26D, US3, US10B or US19 finish (1-3/8" available in US26D only)
- Packed 10 per box
- US Patent Nos: 4,899,563; 4,920,774
- *Key-retaining = key removable in the locked position only.
- WARNING (California Proposition 65)
Available Separately
- Plastic spacers 10-348, 10-349, 10-350
- Slotted strikes 10-052, 12-5
- Angle strikes 12-1, 12-2, 12-3
- Bar strikes 56-1, 10-054, 10-055, 10-057, 10-058
- Frameless drawer strike 12-4
- Through-bolt trim plate 1/8" thickness ETS1-125
- Through-bolt trim plate 1/4" thickness ETS1-250
- Through-bolt trim pull ETS1-PL
- Through-bolt trim spacer template ETST1
- Trim ring TR78
- Extended bolt (bolt only) part-number 721-1-LB
- 3/8" plastic bar strike 10-058
Documents
Testing
(E07121) ANSI/BHMA A156.11 Grade 1
Dimension Illustrations
Cores for Locks
- All locks sold less core
- Accepts Best, Arrow, Falcon, or equivalent small-format interchangeable core cylinders
- For available cores, see IC core section
Includes
- (1-1/4" includes) 3 ea. plastic spacers 10-350
- (1-1/4" includes) 1 ea. 1/4" plastic bar strike 10-054
- (1-1/4" includes) 1 ea. 0.65" plastic bar strike 10-057
- (1-1/4" includes) 1 ea. plastic actuator to functionally test lock without core 725-PA
- (1-1/4" includes) 1 ea. 725-1 spacer to fit 6 or 7 pin SFIC cylinders
- (1-1/4" includes) 1 ea. 721DR-11 door prong driver
- (1-1/4" includes) 1 ea. 721DW-11 drawer prong driver
- (1-1/4" includes) Contains all parts necessary to convert to a drawer lock
- (1-3/8" includes) 1 ea. 1/4" plastic bar strike 10-054
- (1-3/8" includes) 1 ea. plastic actuator to functionally test lock without core 725-PA
- (1-3/8" includes) 1 ea. 725-1 spacer to fit 6 or 7 pin SFIC cylinders\
- (1-3/8" includes) 1 ea. 721DR-11 door prong driver
- (1-3/8" includes) 1 ea. 721DW-11 drawer prong driver
- (1-3/8" includes) Contains all parts necessary to convert to a drawer lock
