General Features

N Series - National Keyway
Cabinet deadbolt door lock
WEATHER RESISTANT: Includes weather-resistant components. Suitable for undercover outdoor areas.
For standard locks, see 100DR
For MRI locks, see 100M
Easily rekeyable via set screw cylinder release mechanism
Solid brass pin tumbler cylinder drilled for 5 pins
(E07121) ANSI/BHMA Grade 1
Barrel lengths: 15/16" or 1-3/8" (specify barrel length when ordering)
Barrel diameter: 7/8"

Standard function: locks are non-handed with a key removable in both the locked and unlocked positions.
Optional key-retaining* function: Specify 100BKR for right-hand or 100BKL for left-hand. NOTE: Specify right-hand or left-hand for key-retaining function only. See key-retaining chart.

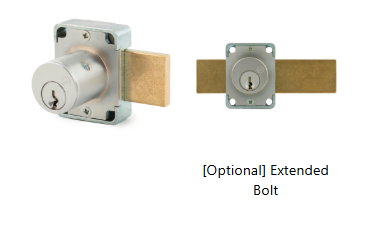

Optional extended bolt - Specify -LB option

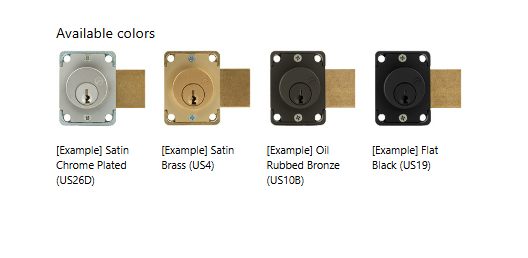

26D, US4, 10B or US19 finish (US19 not available on 1-3/8")
Includes bar strike 56-1
Packed 10 per box
US Patent Nos: 4,899,563; 4,920,774
*Key-retaining = key removable in locked position only.
WARNING (California Proposition 65)

Available Separately

An extended bolt increases the overall bolt length by 1-1/2" (3/4" for both left- or right-hand bolt projections). For bolt only, specify part-number 15-1-35.
Spacers WP20, WP21, WP22, WP23
Slotted strikes 07S, 12-5, 10-052
Angle and bar strikes 12-1, 12-2, 12-3
Bar strikes 56-1
Frameless drawer strike 12-4
Trim ring TR1256
Through-bolt trim plate 1/8" thickness ETS2-125
Through-bolt trim plate 1/4" thickness ETS2-250
Through-bolt trim pull ETS2-PL
Through-bolt trim spacer template ETST2

Olympus - 100B (Weather Resistant) 5-Pin N Series National Deadbolt
