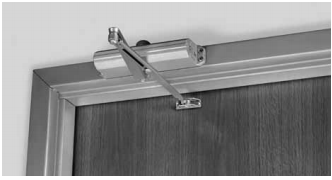

Norton J1601,J1601BF Top Jamb Mount Storefront Door Closer 1600 Series

by Norton
$ 128.50

1601 Top Jamb-For efficiency reasons this application provides the best alternative to the regular arm application. There must be sufficient frame face and/or ceiling clearance for this application. It requires a top rail on the door of just 2-1/8" (54mm). This application provides the best door control for doors in exterior walls that swing out of a building. The entire door closer and arm assembly project from the frame, similar to the regular arm application, where the matters of appearance and malicious abuse can be of concern. Consideration must be given to depth of the frame reveal.

Typical Applications

Recommended on interior or exterior doors including:

  • Aluminum Storefronts
  • Office Doors
  • Utility Closets
  • Storage Rooms

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL listed
  • UL10c compliant for positive pressure

Features

  • 1600BC: Sized springs 3 or 4
  • 1601: Adjustable spring sizes 3-6
  • 1601BF: Adjustable spring sizes 1-4
  • Exceeds 12 million cycles (witnessed and verified by UL)
  • Non-handed
  • Rack and pinion design
  • Cast aluminum body
  • 2-7/8" (73mm) projection
  • 1-3/8" (35mm) diameter piston





  • 5/8" (16mm) diameter pinion journals
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Staked valves
