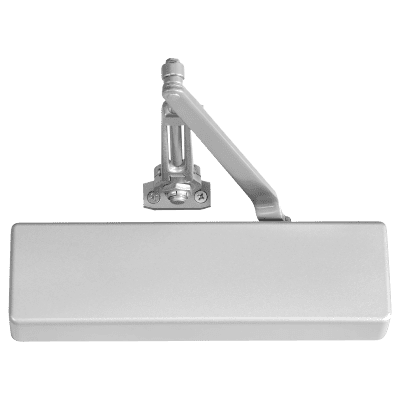

Norton 7500 Door Closer

Name: Norton 7500 Door Closer
Brand: Norton
SKU: 7500 689
Price: 223.95 USD
Availability: InStock

SKU: 7500 689

$ 223.95

Product variants

Product overview
Features
Cast aluminum body

Adjustable, heavy-duty spring sizes 1-6

Tri-packed

Exceeds 25 million cycles

Larger 1-1/2" (38mm) diameter piston

Non-handed

Projection: 2-1/8"

Interior or exterior doors

Staked valves

All standard arm applications allow doors to swing 180, conditions permitting

Hold open, heavy-duty, and low profile arms available

Slide track - push or pull side mounting

Standard, separate and independent latch, sweep, and backcheck intensity valves

Retrofit plates, drop plates, back plates, mounting plates, brackets available

Available fasteners: sex nuts, thru-bolt grommet nuts, Torx®

Benefits
Constructed with robust materials and internal components

One package covers regular, top jamb, and parallel arm mounting

Stringent testing supports a long-life of reliability

Low profile projection provides clean aesthetic

Arm configurations meet broad range of applications

Staking limits ability to accidentally back out the valve while adjusting closer

Extensive offering of accessories to assist with the most difficult applications

Proprietary lubricate delivers optimal performance and efficiency

Specifications
Closer Type: Surface
Maximum Door Weight: 250 lbs
Traffic Rating: High Traffic
Warranty: 30-year limited warranty
Certifications
ANSI/BHMA A117.1

ANSI/BHMA A156.4, Grade 1

Americans with Disabilities Act (ADA) Compliant

Buy American Act*

*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.

Environmental Product Declaration (EPD)

Health Product Declaration (HPD)

UL 10C Positive Pressure up to 3 hours

UL-cUL Listed

Model	Mounting Type	Description	Image

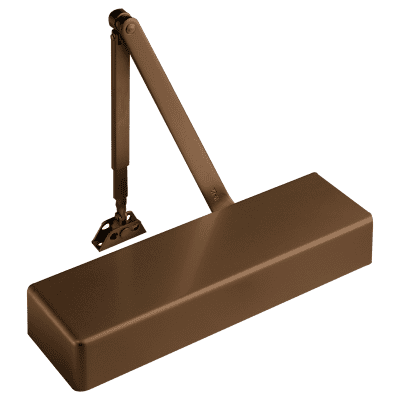

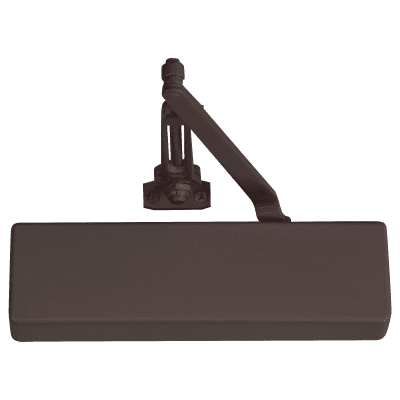

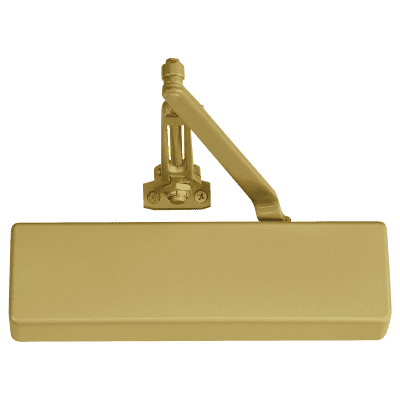

7500	Regular Arm	Only pull side application where double lever arm is used Most common mounting, providing the greatest closing efficiency	View
7500	Parallel Arm	Provides the most appealing appearance for a surface-mounted door closer with a double lever arm Very little or no hardware projecting beyond the frame face, when in closed position, in most situations	View
7500	Top Jamb	For efficiency purposes, this application provides the best alternative to the regular arm Requires a top rail on the door of just 2-1/8" (54mm) Provides the best control for doors in exterior walls that swing out of a building	View
7500ST	Pull side slide track	Provides the smoothest lines available in a surface mounted door closer Adjustable 85° to 110°	View
7540ST	Low profile pull side slide track	Provides the smoothest lines available in a surface mounted door closer Features narrow, slim track Adjustable 85° to 110°	View
7580	Low Profile, Regular Arm	Reduced height elbow joint and straight main arm Allows closer to be installed where there is as little as 1" of frame face or ceiling clearance	View

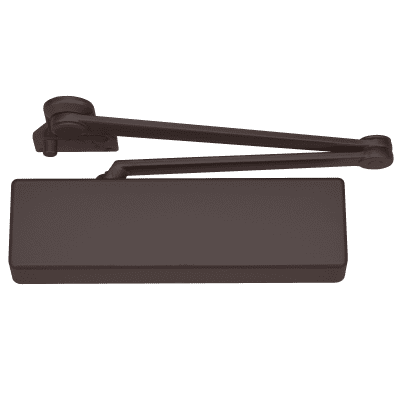

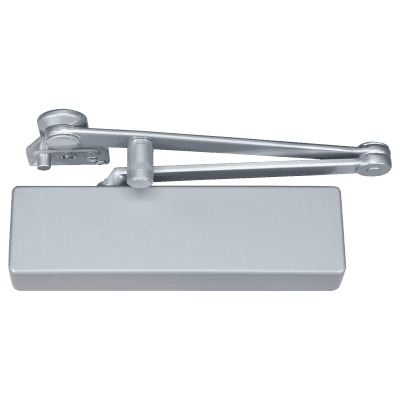

CLP7500	CloserPlus® arm	Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments Prior to dead stop the door closer's backcheck feature slows the door speed to reduce the impact of the stop action Intended for use where an auxiliary door stop cannot be used and no more than moderate abuse is anticipated	View
CLP7500R	CloserPlus Ramp™ arm	Ramp and plunger design that easily slides into place reducing wear Ideal for applications where the door will constantly be pulled out of hold open	View

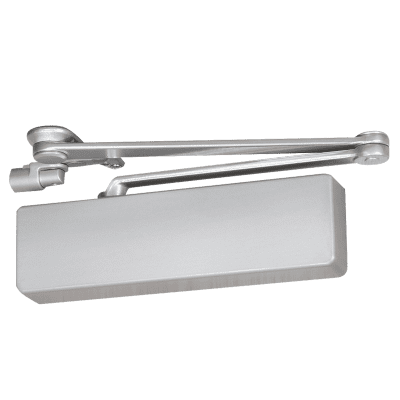

CPS7500	CloserPlus Spring™ arm	Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments An additional steel buffer spring prvides greater protection at the end of the door opening cycle	View
P7580	Low Profile, Parallel Arm	Reduced height elbow joint and straight main arm Allows closer to be installed 1/2" higher up on door that standard parallel arms	View

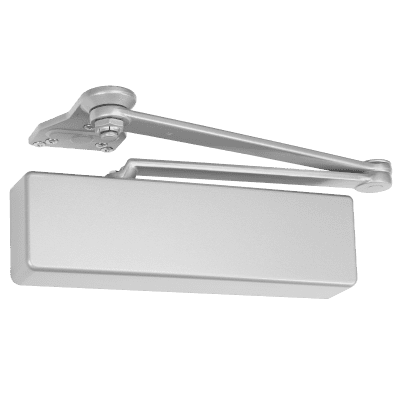

PR7500	Parallel Rigid Arm	Enhanced variation of standard parallel arm assembly Intended for use in heavy traffic areas where auxiliary door stops are installed	View
PRO7500	Parallel Rigid Offset Arm	Allows 1-1/4" clearance; when used in conjunction with a 6891 spacer block, the PRO arm provides 1-7/8" clearance to accommodate the use of a surface overhead stop/holder Well suited for applications where weather-stripping or other hardware prevents the use of the standard PR soffit plate	View
PS7500ST	Push side slide track	Provides the smoothest lines available in a surface mounted door closer Adjustable 85° to 110°	View
PS7540ST	Low profile push side slide track	Provides the smoothest lines available in a surface mounted door closer Features narrow, slim track Adjustable 85° to 110°	View
R7500	Regular Rigid Arm	Double lever arm features a non-adjustable secondary arm Orbitally riveted joints prevent tampering or disassembly	View

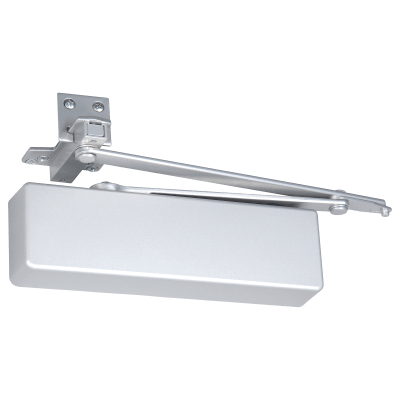

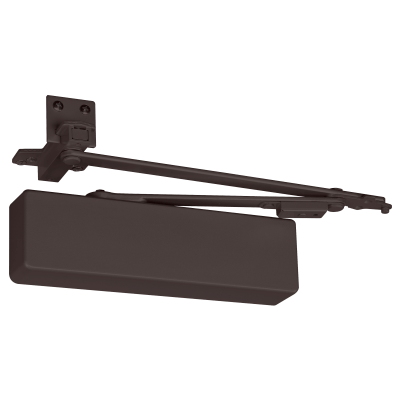

UNI7500	Unitrol parallel arm	Combines the features of a double lever arm overhead door stop/holder with the backcheck feature of the door closer to reduce door stopping shock loads A compression spring buffer at the soffit plate/arm shoe will absorb 30 lbs. of force, 5° prior to the door's dead stop Most controlled stop available with a surface closer Door width must be specified when ordering	View
UNIJ7500	Unitrol top jamb arm	Combines the features of a double lever arm overhead door stop/holder with the backcheck feature of the door closer to reduce door stopping shock loads A compression spring buffer at the soffit plate/arm shoe will absorb 30 lbs. of force, 5° prior to the door's dead stop Most controlled stop available with a surface closer Reveal must be specified when ordering
