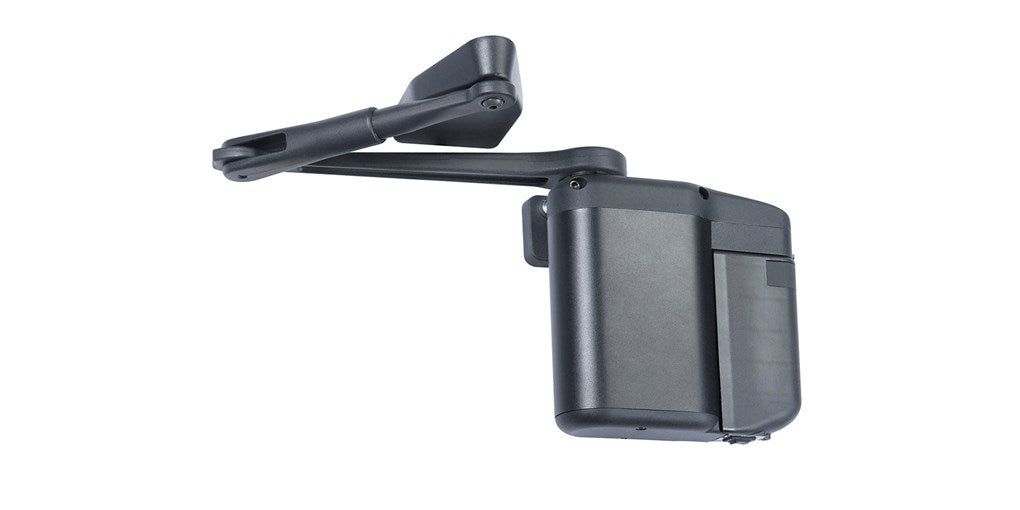

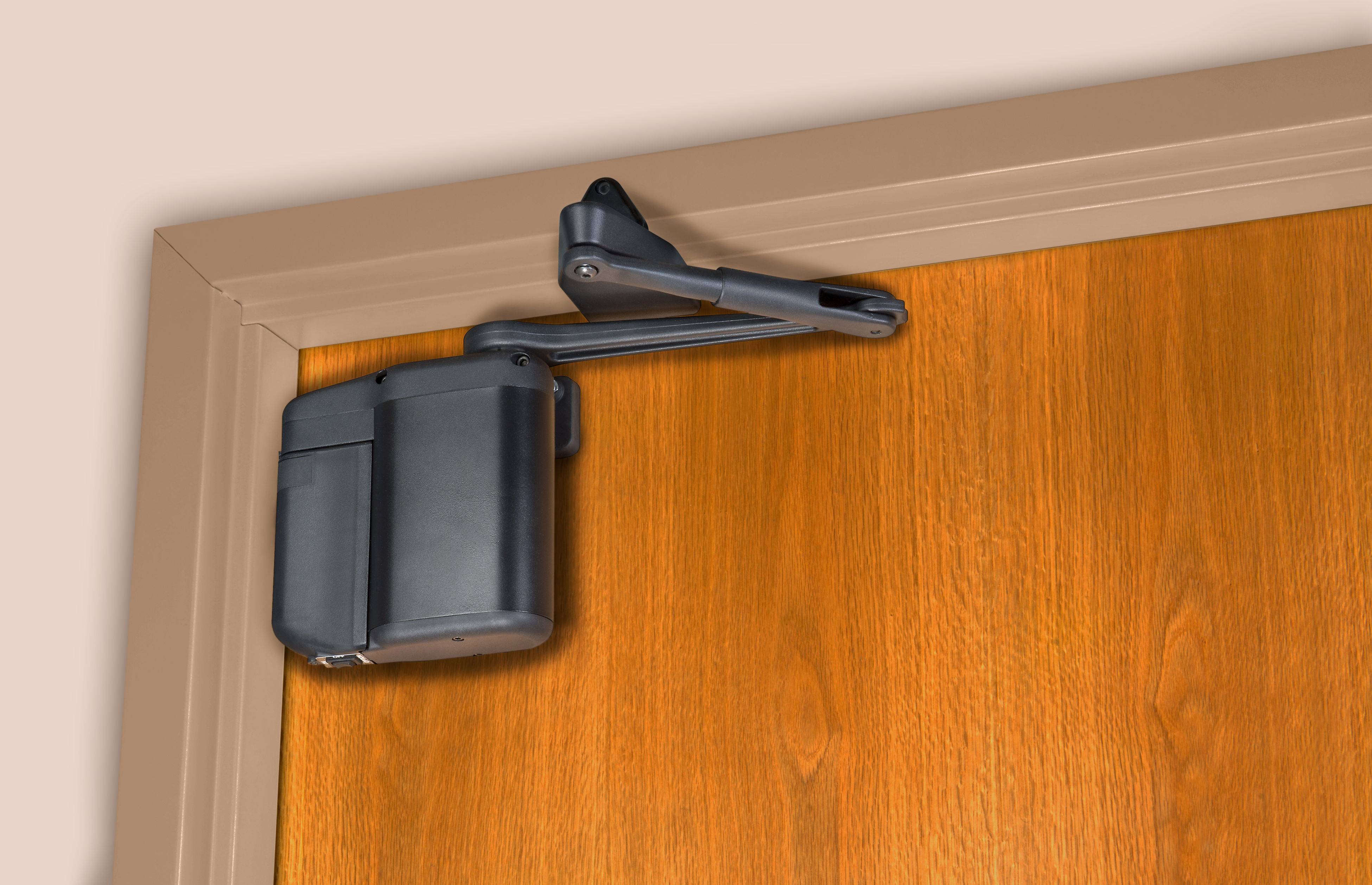

Norton 5845xNPB Power Operator

SKU: 5845xNPB
$ 2,649.00

5800 Series


The 5800 Series is one of the world’s only regenerative low energy operators and certified by GreenCircle® to reduce energy consumption by as much as 100 percent versus other comparable operators. The 5800 Series fits in the tightest of spaces, is simple to install and use, and is available as wireless or plug-in.

Product overview

Features

  • Non-handed

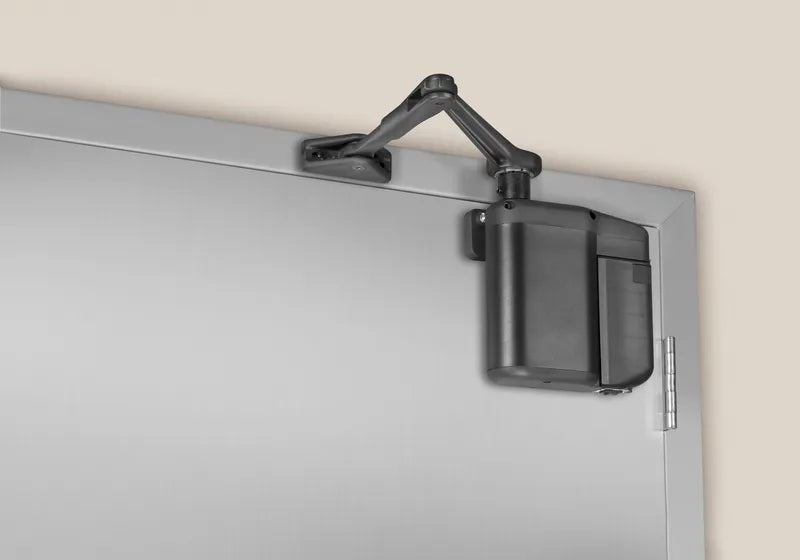

  • Push or pull side mounting

  • For use on interior and exterior doors with medium to high traffic

  • Regenerative drive battery captures power created by manual operation of door

  • Powered by regenerative drive or 24VDC plug-in transformer kit

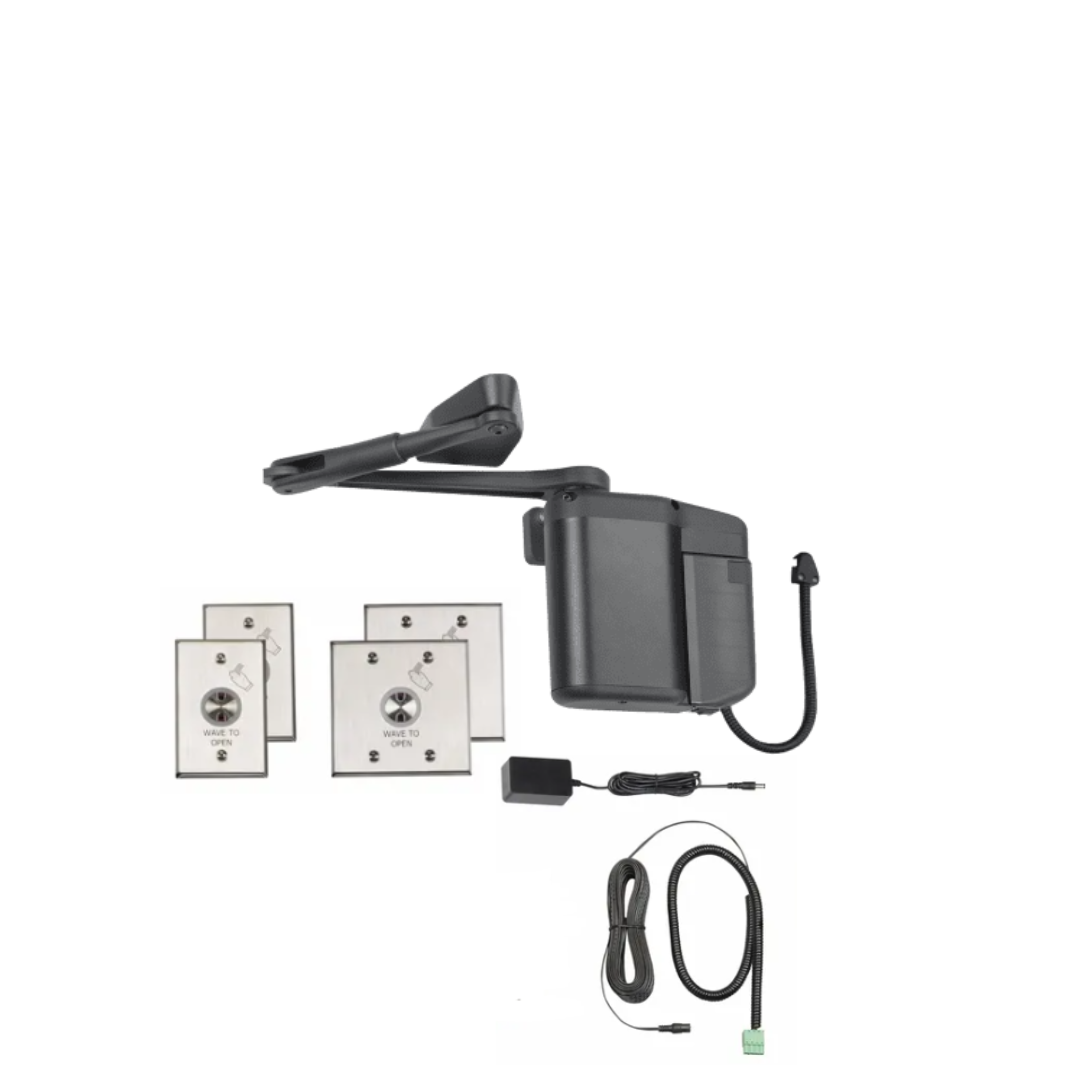

  • Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices

  • Functions like door closer when used manually

  • Shock absorbing arm

  • Auxiliary activiation input port

  • Patented auto-tune feature

  • Brushless DC motor/gearbox tested 10+ million cycles

  • Maximum door weight: 250lbs.

  • Door width: up to 48"

  • Optional wireless interface module (WIM)

Benefits

  • Regenerative power operation eliminates energy consumption

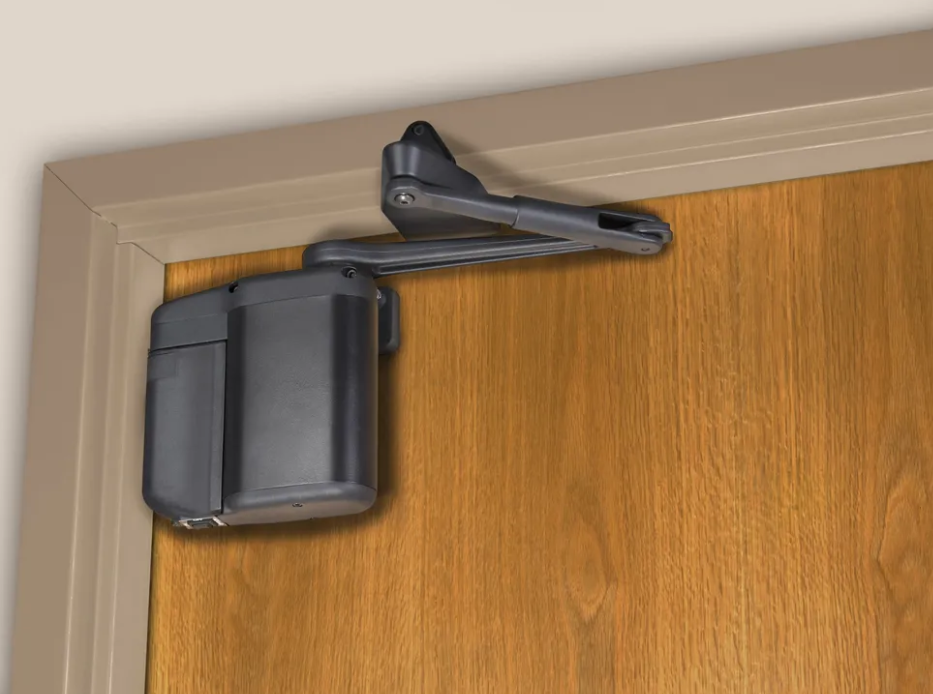

  • Unique, on-door installation fits tight spaces with little to no header space

  • Easy installation requiring no external wiring

  • When electrical power is needed, a low voltage transformer kit can be easily added to plug into common 110VAC electrical outlet

  • Wirelessly interfaces with variety of systems and devices

  • Protects door and frame from high wind and abusive environments

  • Battery back-up allows auto operation use during power failure

  • Minimal adjustments required over time

  • Reduced germ transmission and increased ease of use with activation through wave-to-open switches and radio frequency (RF) devices

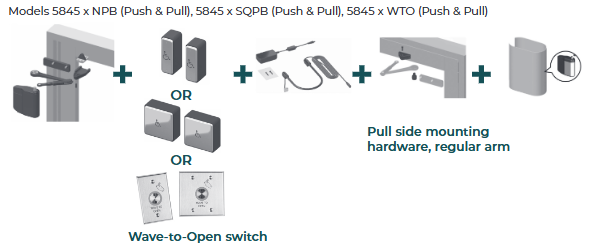

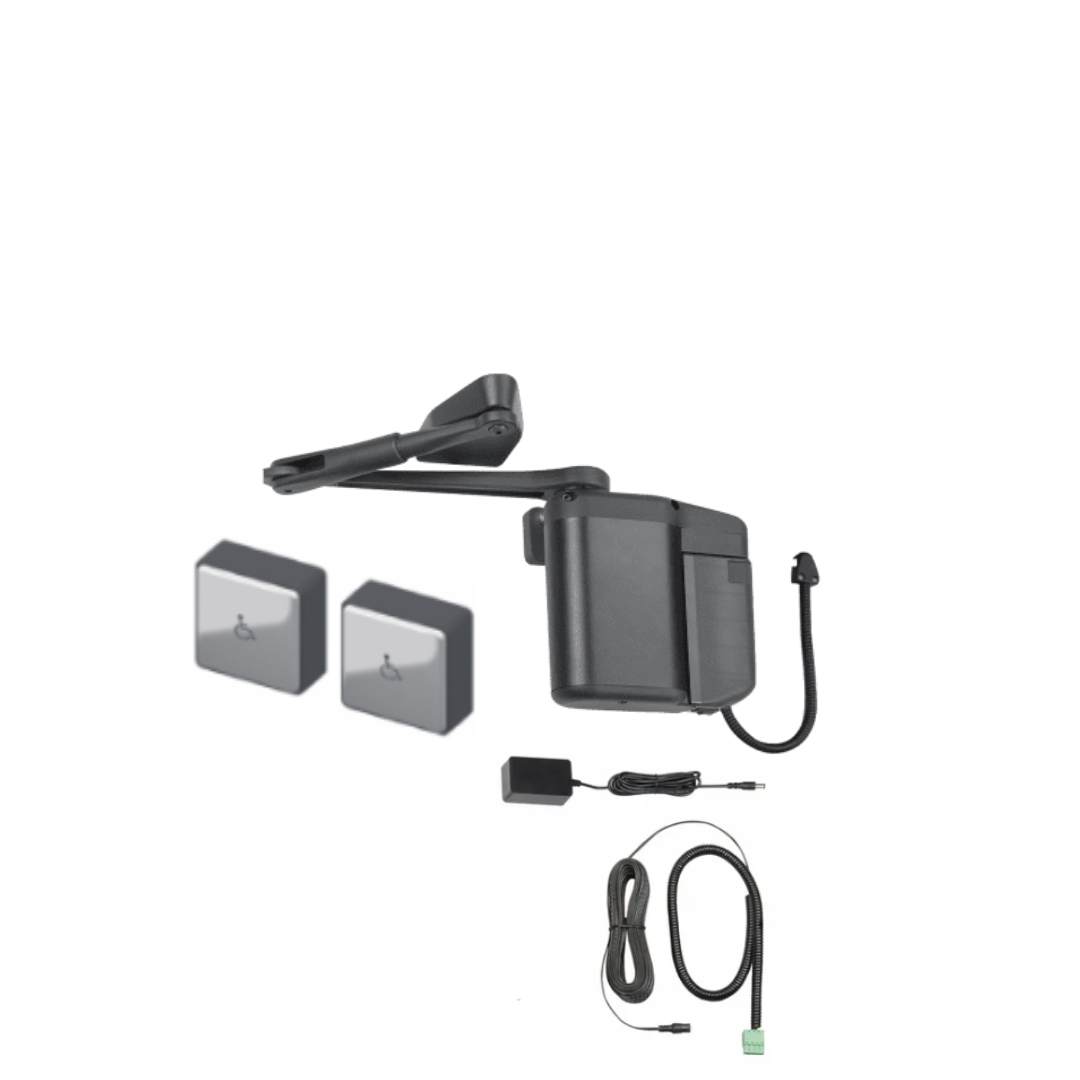

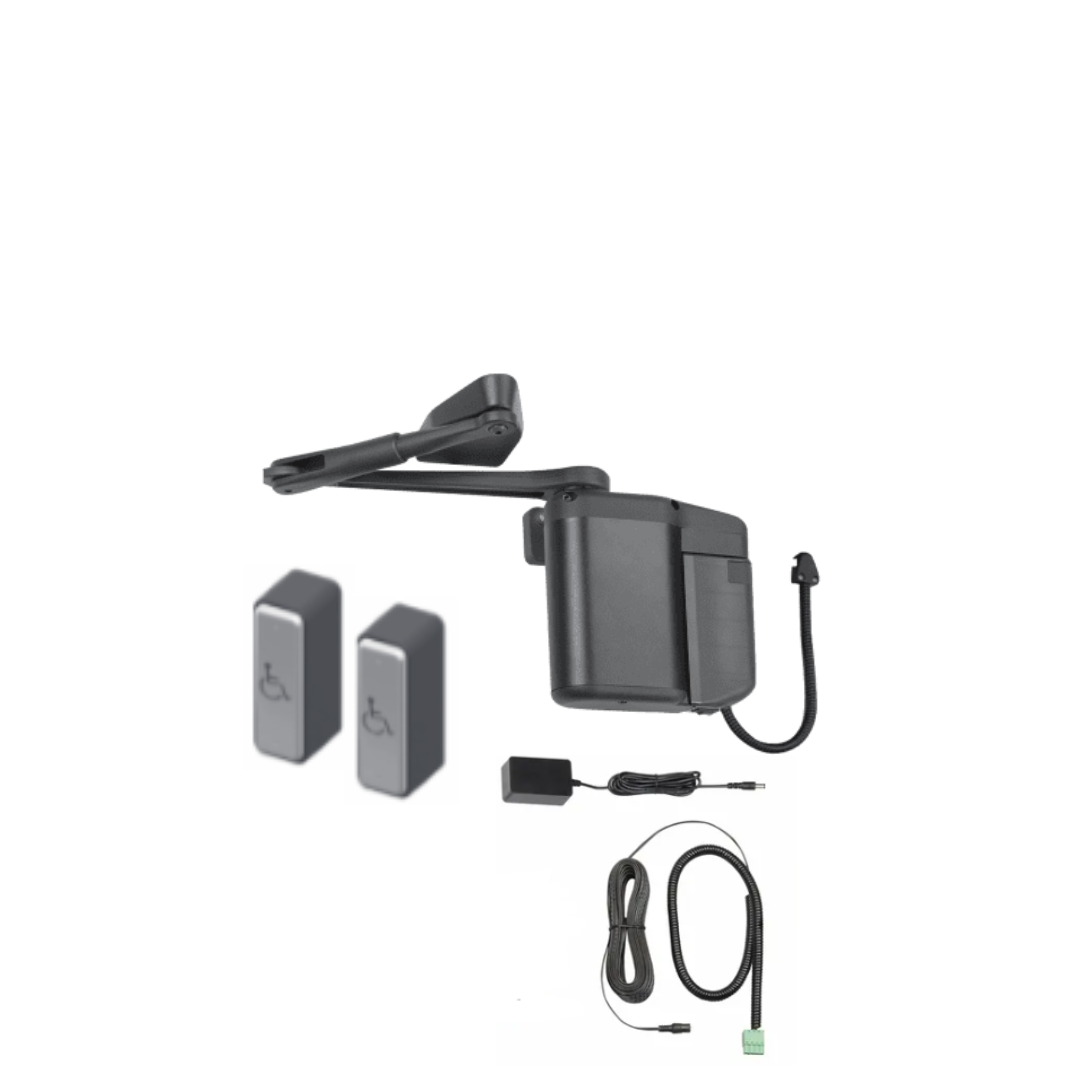

  • Kits provide easy stocking and ordering for complete automated door solutions, from operator to accessories

  • Allows any model to interface with wired or wireless wall switches, wireless remote, electric lock, fire panel, access control, or outside wall switch to disable contact

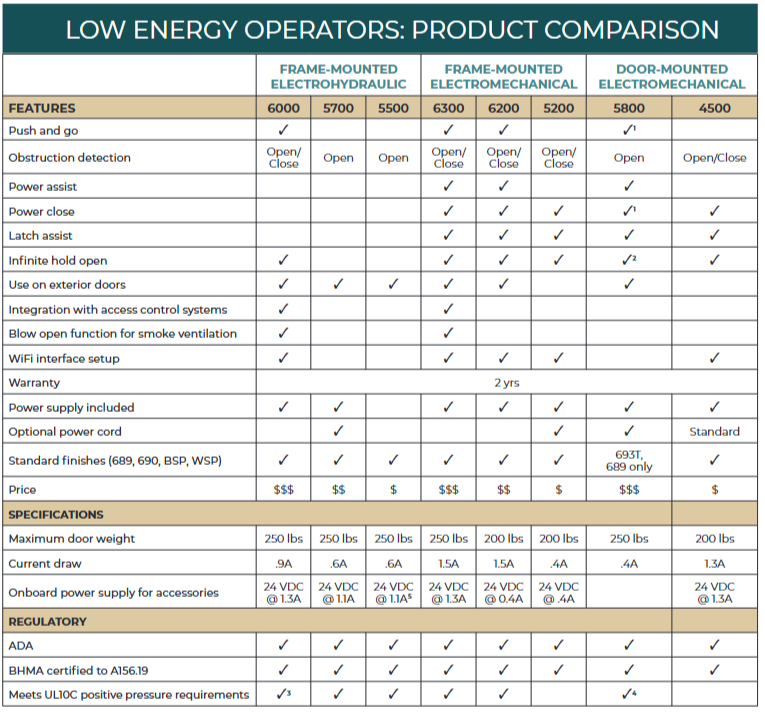

Specifications

  • Traffic Rating: High Traffic

  • Warranty: 2-year limited warranty

Certifications

  • ANSI/BHMA A156.19

  • Americans with Disabilities Act (ADA) Compliant

  • Buy American Act*

  • *Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may
