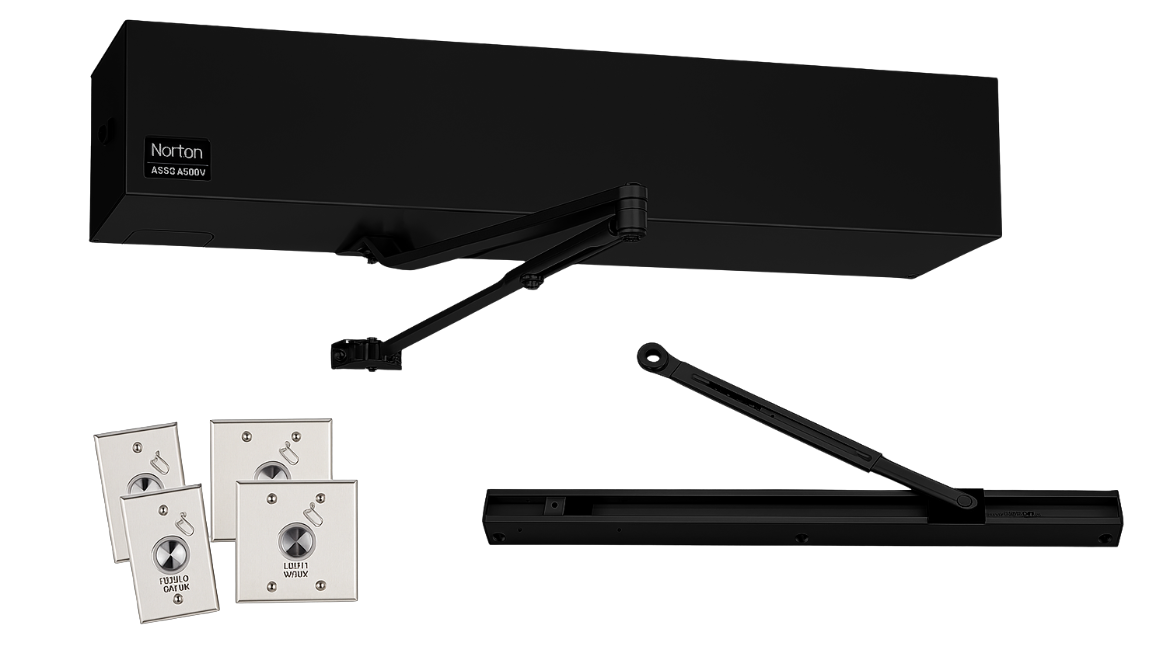

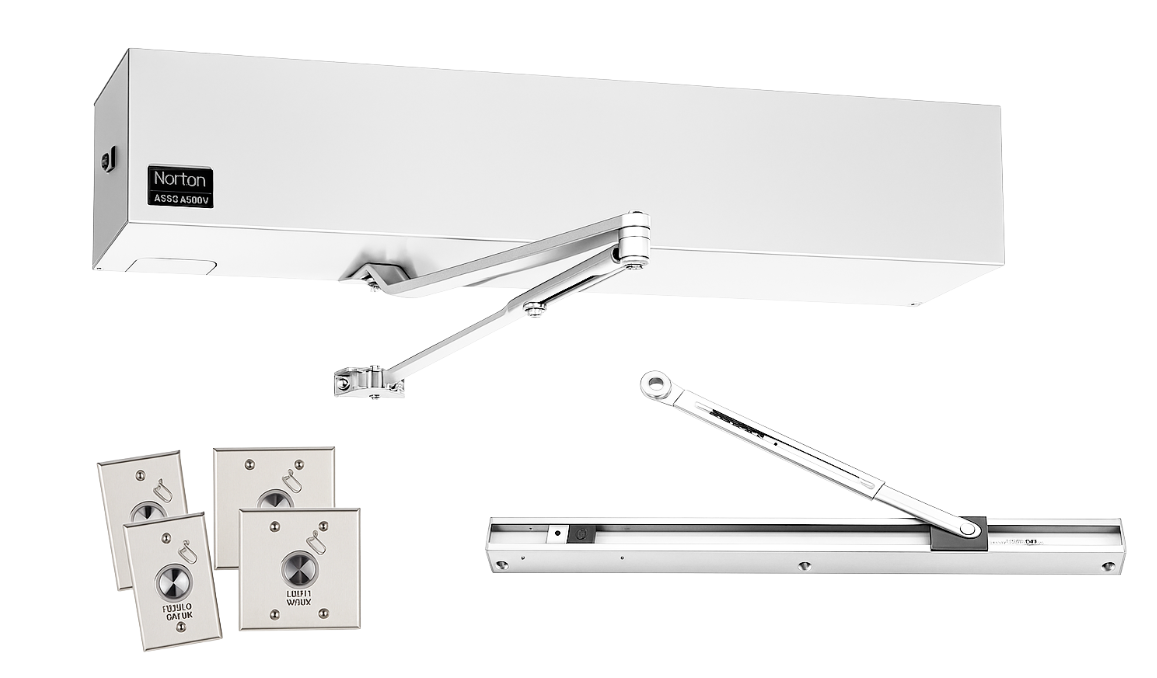

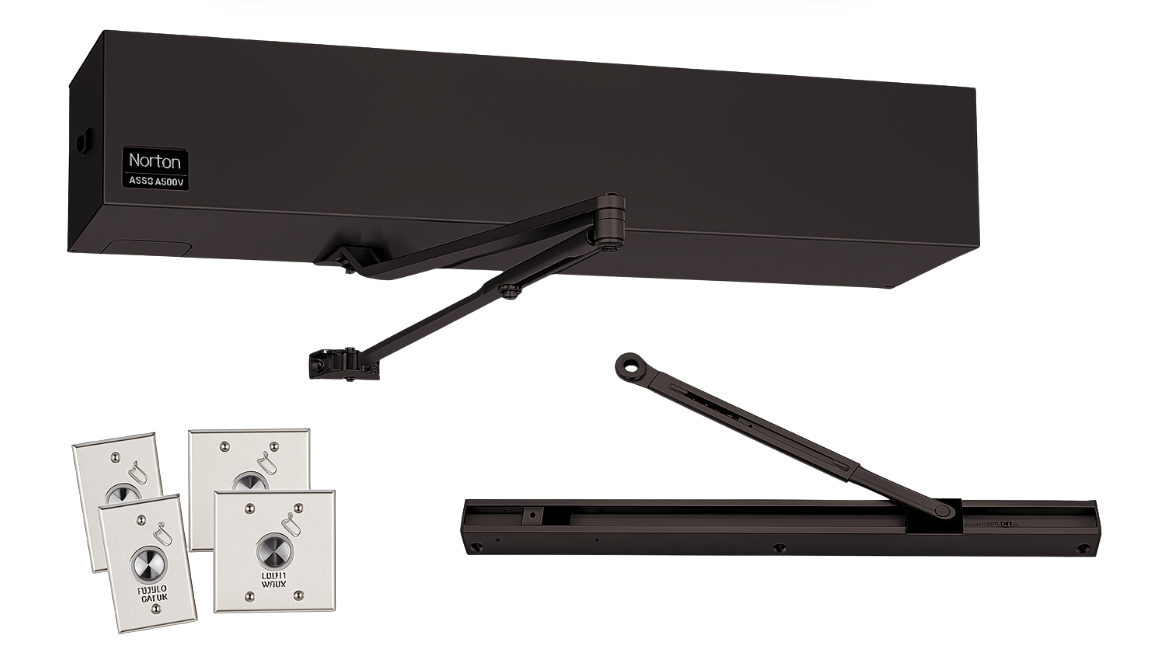

5740K2 - 5740 operator (configured for push applications), power cord and (2) 700
wave-to-open switches

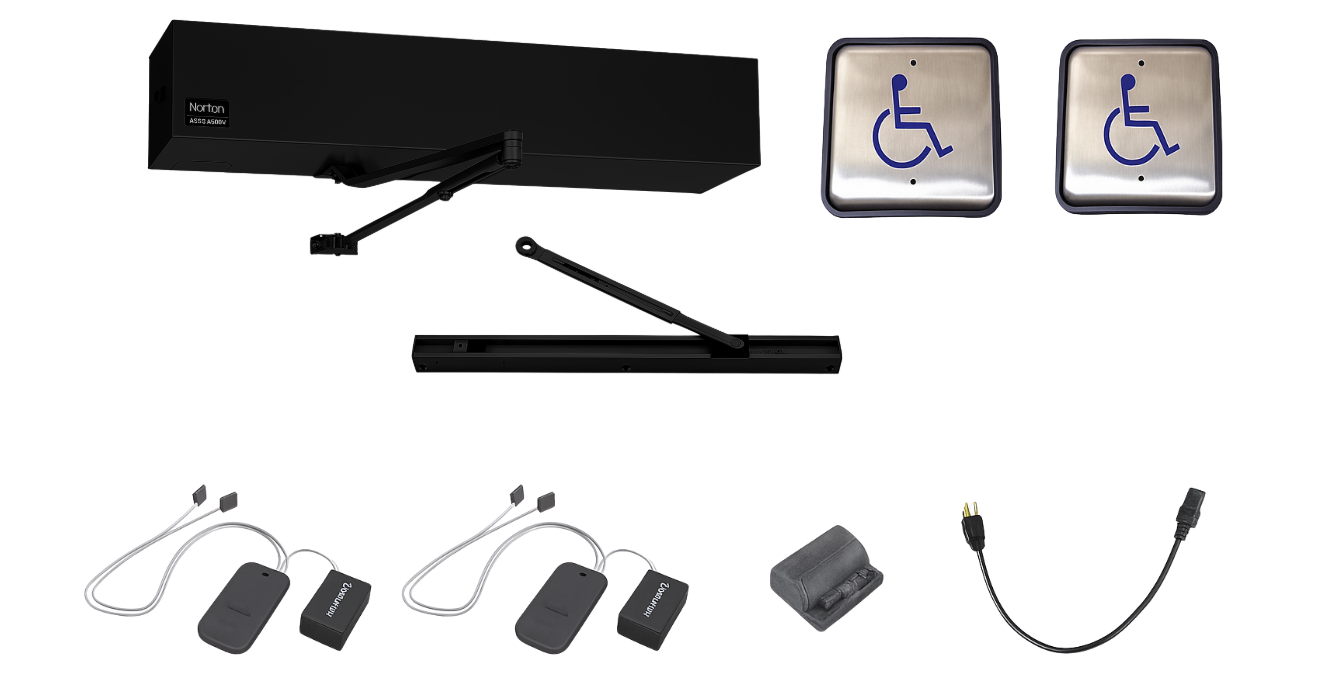

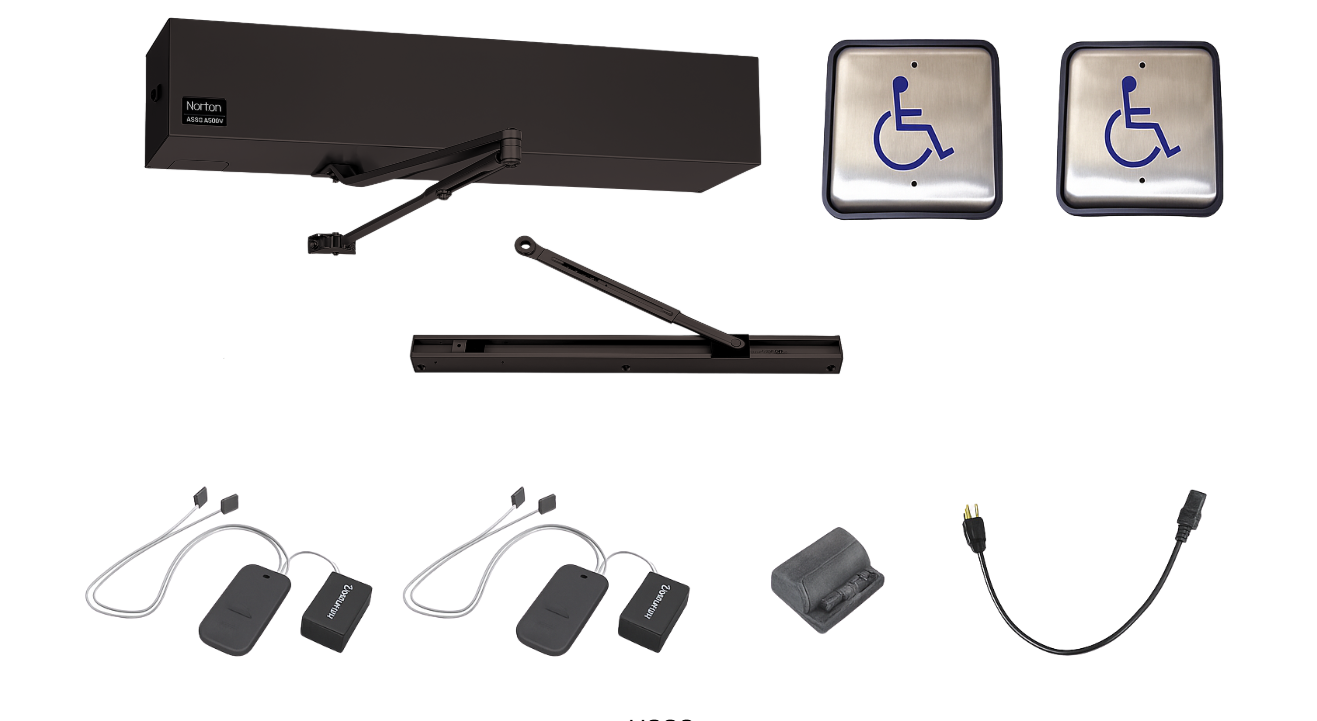

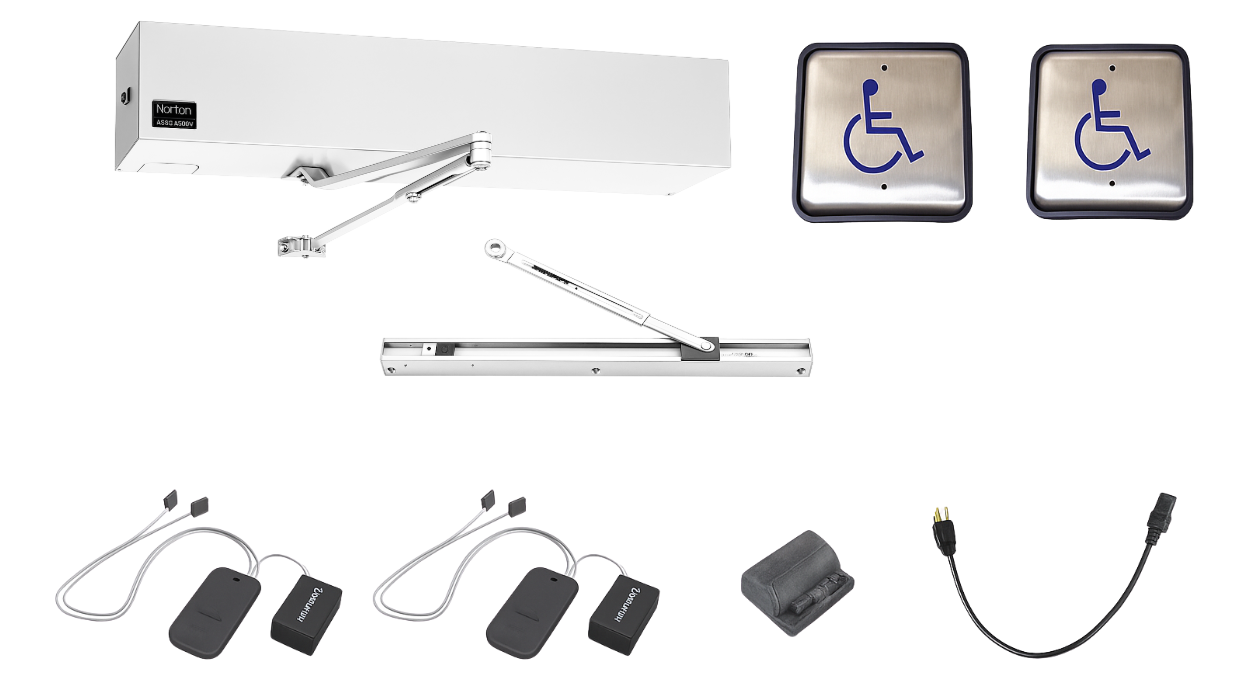

5740K3 - 5740 operator (configured for push applications), power cord, receiver, (2)
push buttons and (2) transmitters
The 5700 Series low energy operator is a reliable ADA solution comprising of the Norton Rixson heavy-duty 1600 Series door closer. The use of a hydraulic closer ensures quiet, consistently smooth operation ideal in applications where doors are typically operated manually but can also be activated via door switches for automatic operation. The 5700 Series offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
Product overview
Features
Non-handed
Push or pull side mounting
For use on interior and exterior doors with medium traffic
Comprises Norton Rixson 1601 adjustable mechanical door closer
Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices
Powers and coordinates function of electric strikes and other accessories
Onboard power supply: 24VDC (1.1A)
Maximum door weight: 250lbs.
Minimum door width: single (29"), double (30")
Door width: 28"-48"
Benefits
Basic features simplify product choice and setup
Heavy-duty closer provides long life of consistent operation
Mechanical closer prevents door from slamming and allows smooth manual operation when power is off
Adjustable closer spring meets code requirements for multipe door sizes and weights
Multiple valves provide enhanced control from open to close
Easy maintenance using on/off switch
Reduced germ transmission and increased ease of use with activation through wave-to-open switches and radio frequency (RF) devices
Kits provide easy stocking and ordering for complete automated door solutions, from operator to accessories
Specifications
Traffic Rating: Moderate Traffic
Warranty: 2-year limited warranty
Certifications
ANSI/BHMA A156.19
ANSI/BHMA A156.4
Americans with Disabilities Act (ADA) Compliant
Environmental Product Declaration (EPD)
UL 10C Positive Pressure up to 3 hours
UL-cUL Listed
