Product Overview

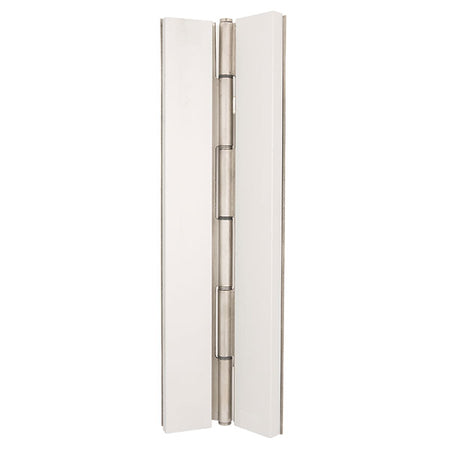

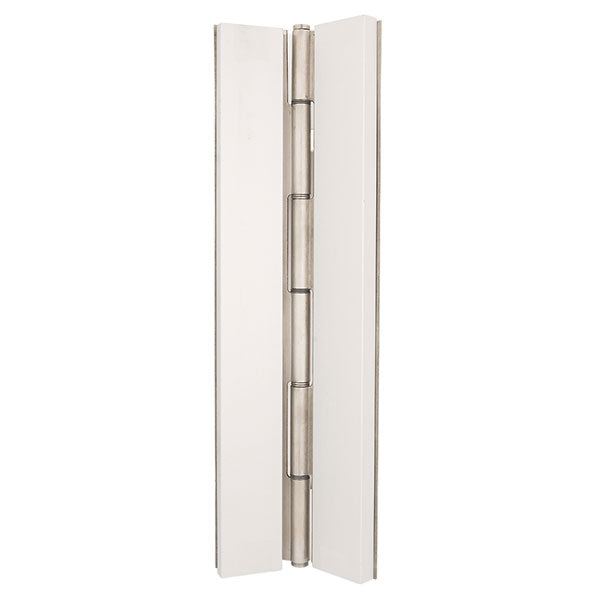

Stainless steel continuous hinges run the full height of the door evenly distributing the weight of the door along the full height of the frame. Ideal for high-frequency and heavy-weight doors in new construction and retrofit applications.
- Heavy-duty 14 gauge type 304 stainless steel
- Pin and barrel design
- Stainless steel hinge pins
- Medical type self-lubricating flanged bearings between each 2″ knuckle provide dust-free quiet and smooth operation
- For doors weighing up to 600 lbs.
- 25-year warranty
- #1/4-20 x 3/4″ TEK screws for metal doors and frames
- US32D (630) brushed finish
- Standard lengths: 83″, 85″, *95″
- Note: For Door Sizing Refer to Installation Instructions
*Oversize handling fee applies (added at checkout)
| Brand | |
|---|---|
| Length |
83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door) |
| Material |
14 gauge type 304 stainless steel |
| ANSI/BHMA Standard |
ANSI/BHMA Certified to A156.26 American National Standard for Continuous Hinges: Grade 1 – 150 lb. Door, Grade 1 – 600 lb. Door |
| Fire Rating |
Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4'0 x 10". |
| Continuous Hinge Type |
Full Surface |
| Usage |
Heavy Duty |
