Product Features
- Used to fill mortise lock pocket prep
- Certified on hollow metal and wood fire-rated doors
- Full kit includes panel, fillers, screws, and caulk

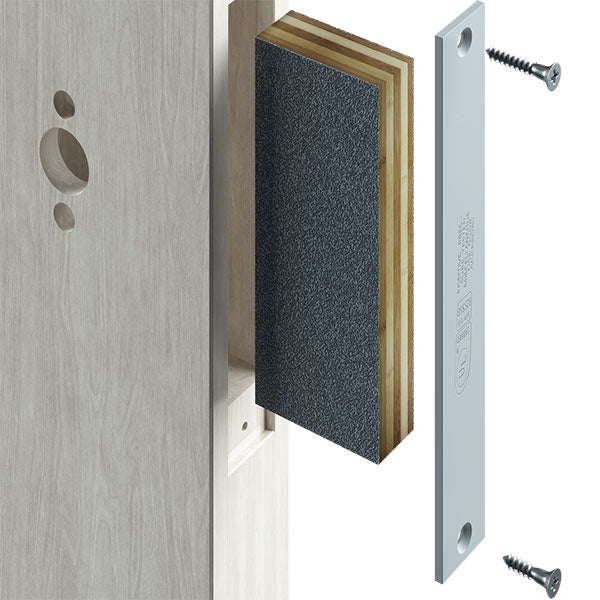

NGP HP90-MORT Mortise Lock Pocket Prep Filler Kit
UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Preps
- Application Certified on Both Hollow Metal and Wood Fire-Rated Doors – up to 90-Minute
- Certified for Filling Mortise Lockset Cavities
- Edge Plate Finish: Primer Gray, Powder Coat
PRODUCT CONSISTS OF:
- HP90 – 4″ × 6″ Fire-Rated Panel
- Steel Filler Plates: (Powder Coated Primer Gray, Embossed With UL Mark) – HP90-MEF1258, Edge Filler Plate – HP90-SF4875, Strike Filler Plate
- Hardware Pack: #10-32 x 1 3/4″ FHPH SS Machine Screw – #8 x 3/4″ FHPH SS Combo Screw – #12 x 1″ FHPH SS Combo Screw – #8 x ¾” FHPH SS SMS – #12 x 1″ FHPH SS SMS
- GapGuard™ Fire Caulk (see installation instructions)
| Brand | |
|---|---|
| Finish |
Gray Primed |
