Product Features
- Used to fill flush bolt preps (door edge and top)
- Certified on hollow metal and wood fire-rated doors
- Full kit includes panels, fillers, screws, and caulk
NGP HP90-FB Flush Bolt Prep Filler Kit
UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Preps
- Application Certified on Both Hollow Metal and Wood Fire-Rated Doors – up to 90-Minute
- Certified for Filling Manual or Automatic Flush Bolt Cavities
- Finish: Primer Gray, Powder Coat

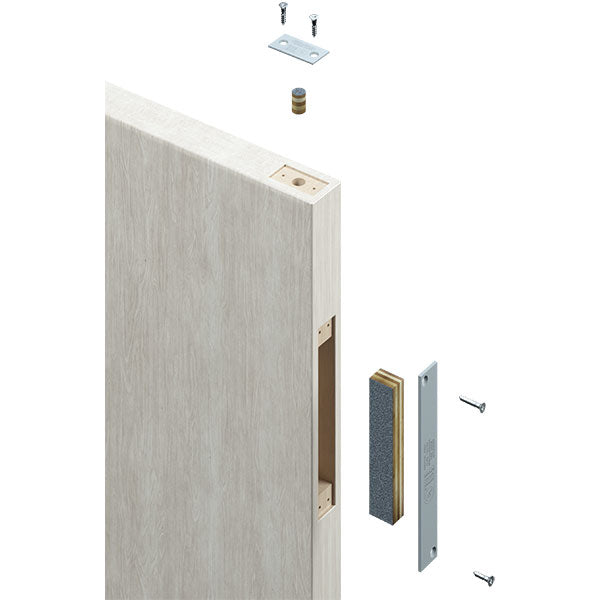

PRODUCT CONSISTS OF:
- HP90 – 2″ × 6″ Rectangular Fire-Rated Panel
- HP90 – 0.5 Cylindrical Fire-Rated Panel
- Steel Filler Plates: (Powder Coated Primer Gray, Embossed With UL Mark) – HP90-FBE6750, Edge Filler Plate – HP90-FBE8500, Edge Filler Plate – HP90-FBL2000, Latch Bolt Filler Plate – HP90-FBL2500, Latch Bolt Filler Plate – HP90-FBL3875, Latch Bolt Filler Plate – HP90-SF2250, Strike Filler Plate
- Hardware Pack: #10-32 × 1 ¾” FHPH SS machine screw – #8 × ¾” FHPH SS combo screw – #12 × 1″ FHPH SS combo screw – #8 × ¾” FHPH SS SMS – #12 × 1″ FHPH SS SMS

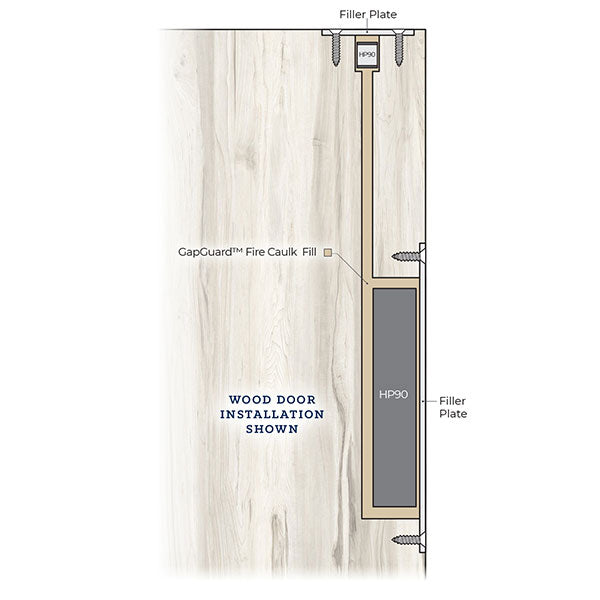

- GapGuard™ Fire Caulk (see installation instructions)
| Brand | |
|---|---|
| Finish |
Gray Primed |
