Product Features
- Used to fill cylindrical lock preps
- Certified on hollow metal and wood fire-rated doors
- Full kit includes panels, fillers, screws, and caulk
NGP HP90-CYL Cylindrical Lock Prep Filler Kit
UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Preps

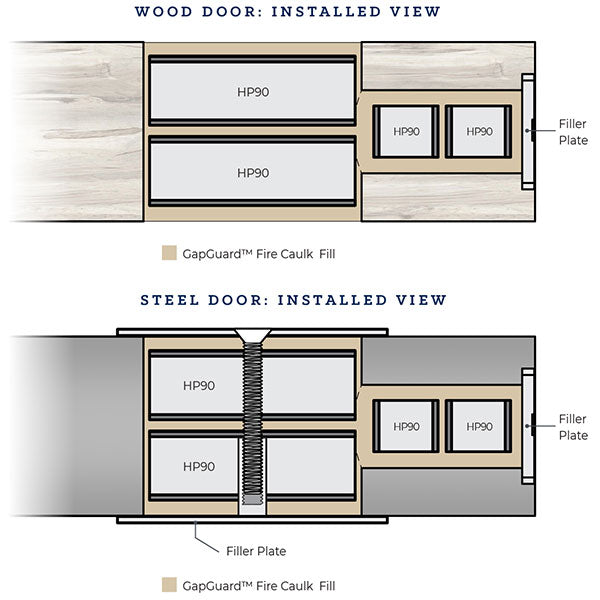

- Application Certified on Both Hollow Metal and Wood Fire-Rated Doors – up to 90-Minute

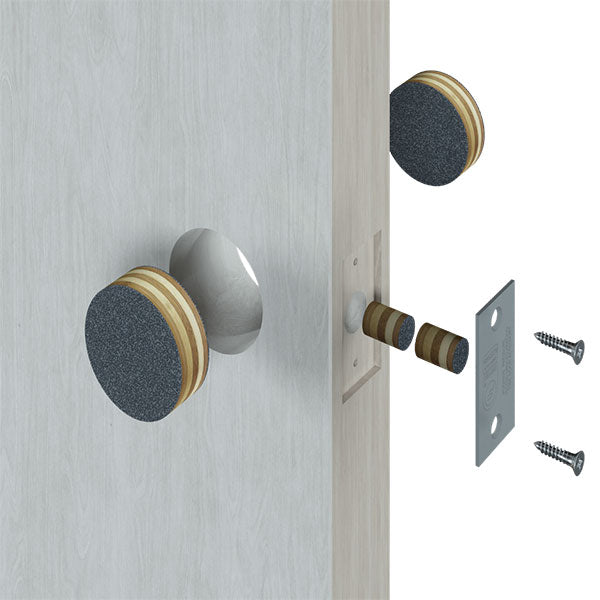

- Certified for Filling Cylindrical Lockset Cavities
- Edge Plate Finish: Primer Gray, Powder Coat
PRODUCT CONSISTS OF:
- Fire-Rated Panels: HP90 – 2.0, HP90 – 1.0, HP90 – 0.5

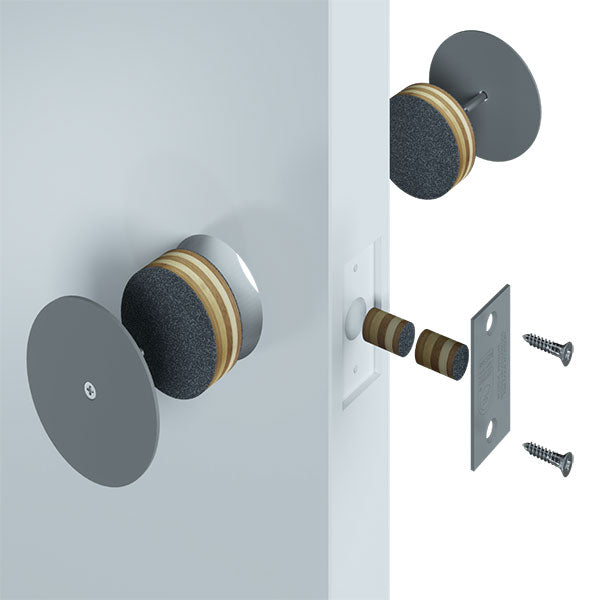

- Steel Filler Plates: (Powder Coated Primer Gray, Embossed With UL Mark) – HP90-RDCP, Filler Plate – HP90-CEF1000, Edge Filler Plate – HP90-SF2750, Strike Filler Plate – HP90-SF4875, Strike Filler Plate
- Hardware Pack: – #10-32 x 1 3/4″ FHPH SS Machine Screw – #8 x 3/4″ FHPH SS Combo Screw – #12 x 1″ FHPH SS Combo Screw – #8 x ¾” FHPH SS SMS – #12 x 1″ FHPH SS SMS
- GapGuard™ Fire Caulk (see installation instructions)
| Brand | |
|---|---|
| Finish |
Gray Primed |
