Product Overview
NGP FP180-225 Frame Patch Kit for Steel Doors and Frames, 5 Pack
Application Certified for Steel Fire Doors and Frames Rated up to 180 Minutes.
- Application Certified for Steel Fire Doors and Frames Rated up to 3 Hours
- Maximum Area of Cutout Concealed by Frame Patch is 2-1/2 Sq. In.
- Allowed to be Used on Steel Frames up to 14 Ga. Thickness
- Allowed to be Used on Steel Doors up to 16 Ga. Thickness
- Must Maintain Adequate Coverage on All Sides of Cutout
- Adhesive Tape May be Used in Addition to Mechanical Fastener

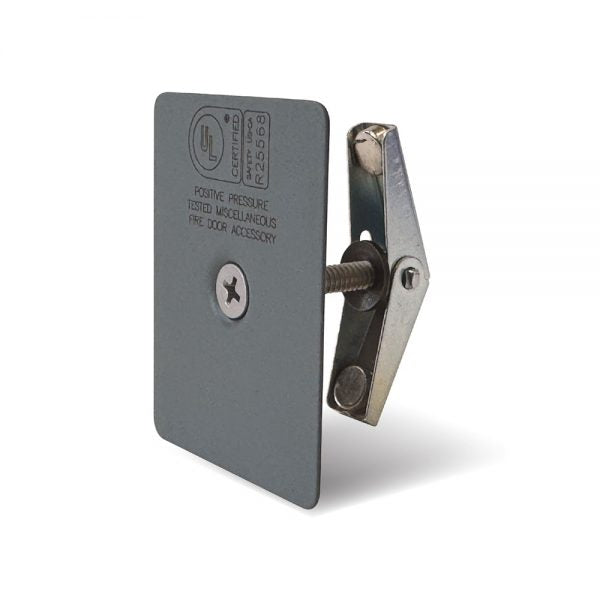

- Product consists of: Metal Plate, 24 Ga. Steel, Embossed with UL Mark
- Hardware Pack: 10-24 x 1.5 F8-P-SS-ST Washer, Spring Lock Anchor Toggle, 3/16″ Magnets 1/4″ x 3/8″ OD
- Size 1-13/16″ x 2-15/16″
- Finish: Primer Gray, Powder Coat
| Brand | |
|---|---|
| Finish |
Primer Gray, Powder Coat |
