Product Overview
UL Certified for Door Top Gaps — Measuring up to 1-1/2″
- 90-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
- No Need to Move Hardware at the Top of the Door
- Works on doors with Parallel arm closers
- Certified for use on doors with Concealed Vertical Rod Exit Devices or Automatic Flush Bolts, refer to Installation Instructions
- Available in 36″ and 48″ Lengths
- End Caps Furnished Standard
- Non-handed
- Patent Pending

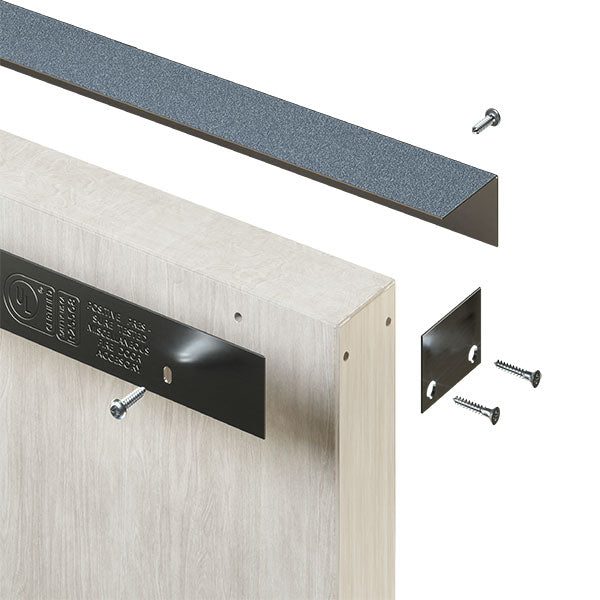

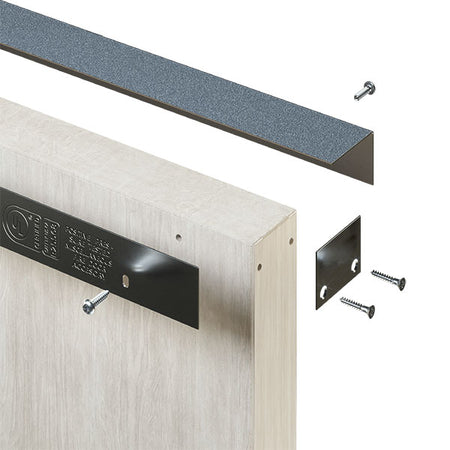

PRODUCT CONSISTS OF:
- #304 Brushed Stainless Steel Flat Plate – Pull Side

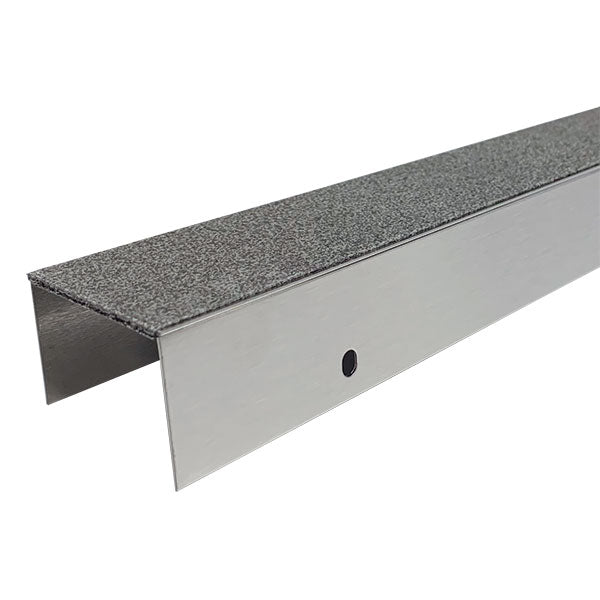

- #304 Brushed Stainless Steel Intumescent Cap — Push Side
- #304 Brushed Stainless Steel End Caps
- #6 X 3/4” Stainless Steel SMS Furnished
FINISH:
- Brushed Stainless Steel
STANDARDS:
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door top clearances measuring up to 1/2″.
- POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 90 minute with excessive door top clearances measuring up to 1/2″.
| Brand | |
|---|---|
| Finish |
Stainless Steel |
| Length |
36", 48" |
| Fire Rating |
90-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors |
