Product Overview
Gap Solution for Excessive Fire Door Bottom Undercut/Clearance up to 45 Minutes NGP-Edge® Intumescent Door Shoe

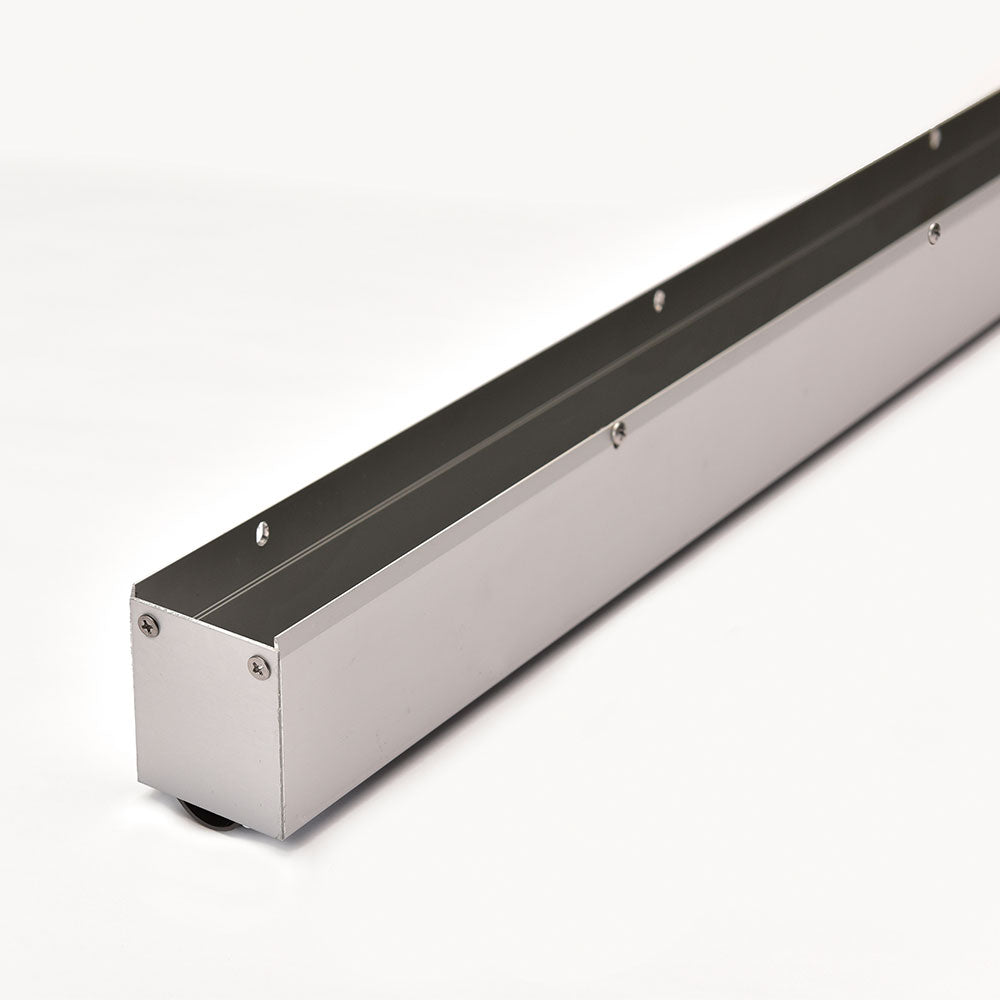

- Aluminum Alloy 6063, T5 Temper
- Aluminum End Caps
- Thermoplastic Polymer: Polyvinyl Chloride (PVC) Formulated with an Environmentally Friendly Bio-Based Plasticizer
- Moisture Resistant
- Restricts the Passage of Smoke
- Flame Resistant
- Temperature Range 0°F to 140°F
- Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration

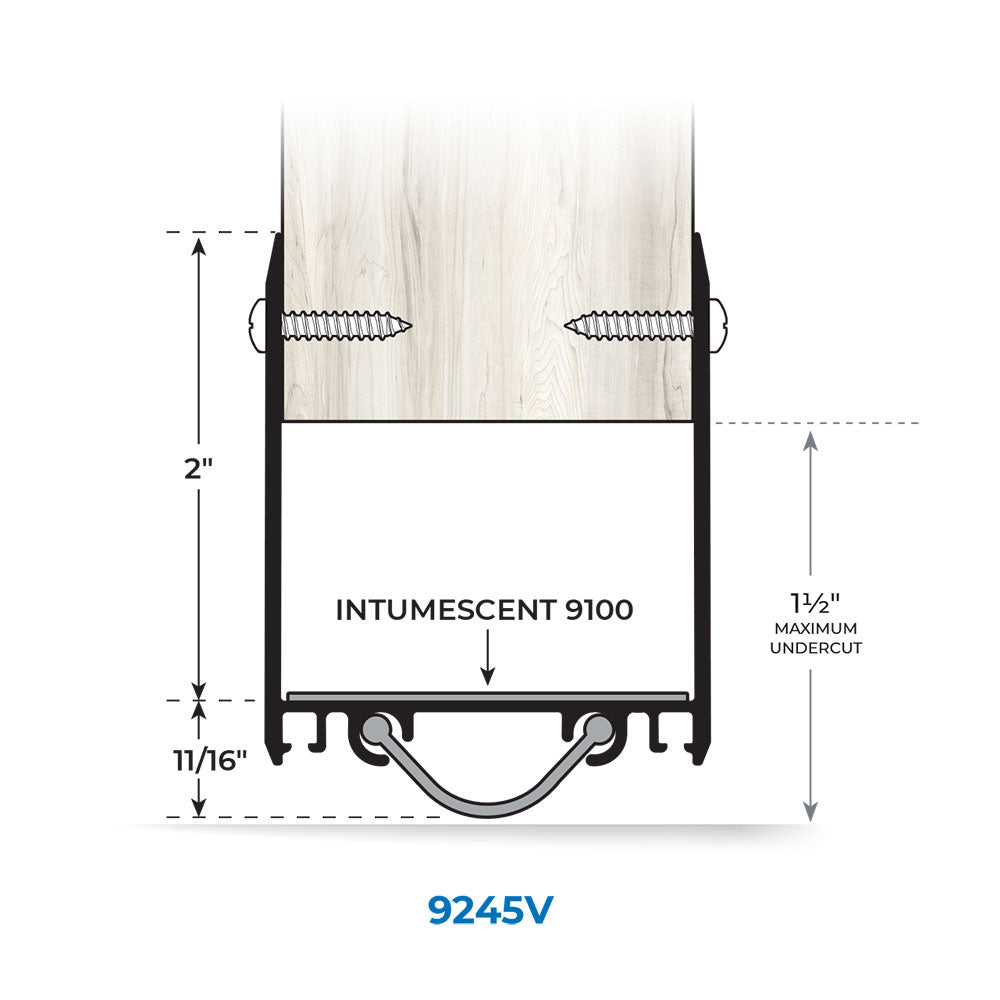

- UL Certified for Door Bottom Gaps — Measuring up to 1-1/2″
- Up to 45-Minute Rated — for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
- Certified for Use in US and Canada
- Available in 36″, 48″ Lengths (Can be Cut Down in Field)
- Non-Handed
- Screw Holes Slotted for Adjustment
- #6 x 3/4″ Stainless Steel SMS Furnished
- Vinyl is Black
Finishes
- 9245VA Anodized Aluminum
- 9245VDKB Dark Bronze/Black Anodized
| Brand | |
|---|---|
| Finish |
Anodized Aluminum, Dark Bronze |
| Length |
36", 48", 60", 72", 84", 96." |
| Fire Rating |
UL Certified, up to 45 minutes |
