Product Features
- Surface mount to each door of pair (includes 2 pieces)
- Premium-grade seals are specially formulated to withstand temperature extremes
- Provides maximum protection against air infiltration

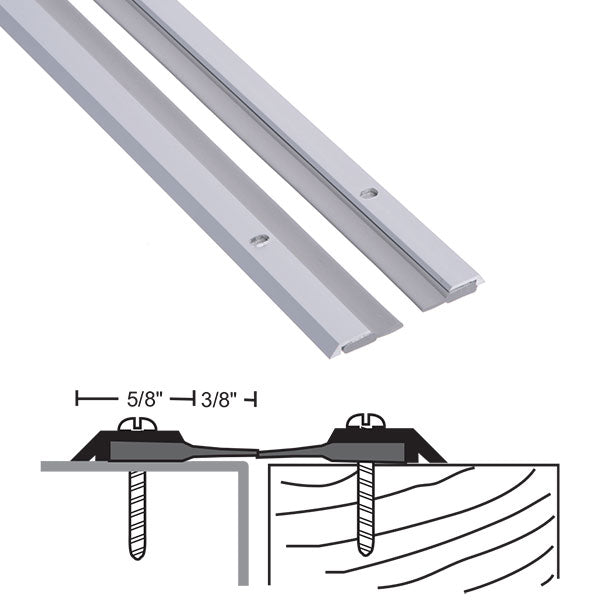

Meeting stile astragals are used to seal the gap between pairs of doors (screwed onto the surface of each door).
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer: Siloxane closed cell sponge
- Premium-grade seals are specially formulated to withstand greater temperature extremes while providing maximum protection against air infiltration
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV, and aging
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
- Fire-rated Astragal Seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label
- IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8″
- #6 x 3/4″ stainless steel sheet metal screws furnished
- Screw holes slotted for adjustment
- Provided as two piece set
- Silicone plus is tan
- Anodized aluminum
- 84″ or 96″ ^length
^excessive length shipping fee applies
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
- POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C
- SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’
- AIR INFILTRATION TESTED to ASTM E283
- ANSI/BHMA CERTIFIED
