Product Features
- Aluminum alloy 6063, T5 temper

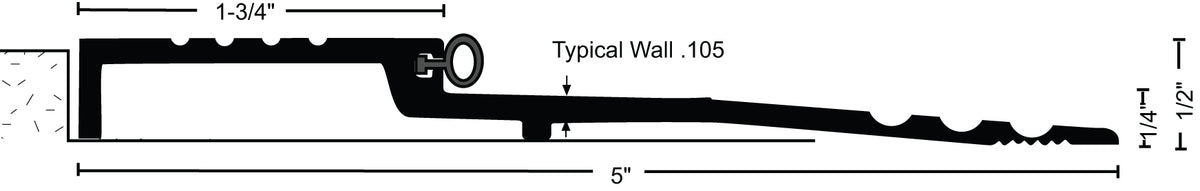

- 5" wide x 1/2" tall
- ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
- Typical Wall Thickness: .105"
- Weight: .72 lbs./ft.
- #10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds
- Vinyl is black
Standards
ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Options
- Slip-resistant SIA finish
