Product Features

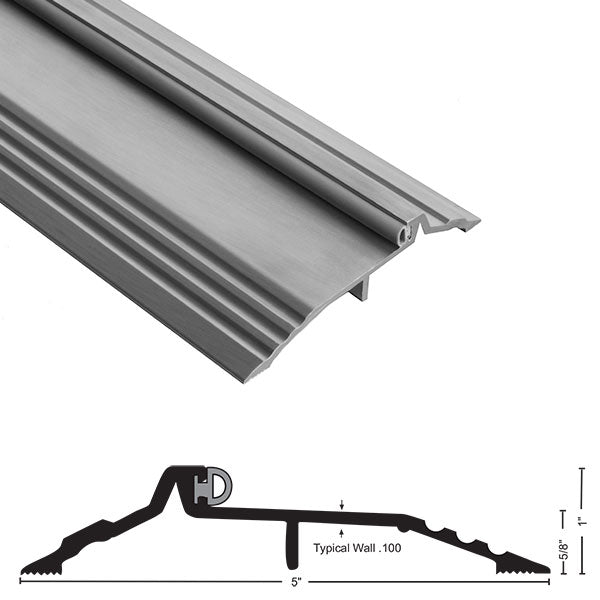

- 5″ Wide x 1″ High
- Air infiltration tested and fire-rated
- Provides a doorstop and seal at the bottom of door
Used to provide a doorstop and seal at the bottom of the door.
- Aluminum alloy 6063, T5 temper
- 5″ wide x 1″ tall
- Typical wall thickness .100″
- Weight: .80 lbs./ft.
- #10 x 1-1/2″ FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
- Vinyl is gray
- Mill finish or DKB
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
- POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C
- AIR INFILTRATION TESTED to ASTM E283
- ANSI/BHMA CERTIFIED
