Product Features
- Use on door frames to seal top and sides of door
- Compatible with parallel arm door closers
- Allows mounting rim exit device strikes without notching

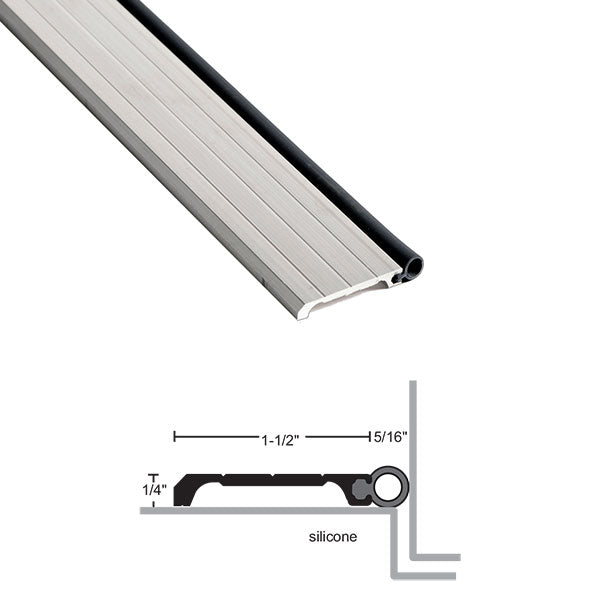

Designed to be applied to the “stop” perimeter of the door frame. The seal compresses against the door, to create a tight seal.
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer: Siloxane
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
- No break in seal for closer mounting
- Closer and/or overhead holder attach to frame through weatherseal section. Install seal first.
- Allows mounting of rim exit device strikes without notching gasketing
- Head section not drilled
- Jamb sections furnished with slotted holes for adjustment
- Self drilling #8 (Tek type) screws furnished
- Available Sizes: 36″ x 84″ Set, 72″ x 84″ Set and *96″ Single Piece (add 3 for 96″ x 96″ Frame)
- Full-Length; Field-Cut to Size
*Excessive length shipping fee applies
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
- POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C
- AIR INFILTRATION TESTED to ASTM E283
- SMOKE & DRAFT CONTROL GASKETING
- ANSI/BHMA CERTIFIED
