Product Features

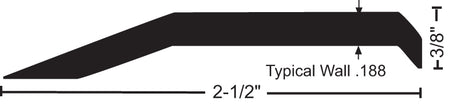

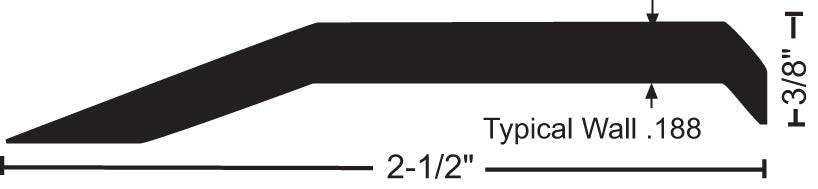

- 2-1/2" wide x 3/8" tall
- Smooth top
- Typical wall thickness .188"
- Weight: .50 lbs./ft.
- #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Standards
ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Options
- Slip-resistant SIA finish
