Product Features
- Thermoplastic Polymer: Polyvinyl Chloride
- Thermoplastic Formulated with an Environmentally Friendly Bio-Based Plasticizer Seal with Rigid Base and Soft Vinyl Fins
- Economical
- Flame Resistant
- Moisture Resistant
- Temperature Range 0°F To 140°F
- Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration
- #6 x 3/4" Stainless Steel SMS Furnished

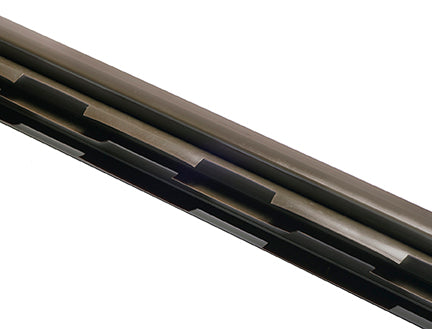

- Notched Fins Allow Air Flow While Restricting Light Infiltration
- 36" Length
- Black Finish
Standards
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
