Product Features

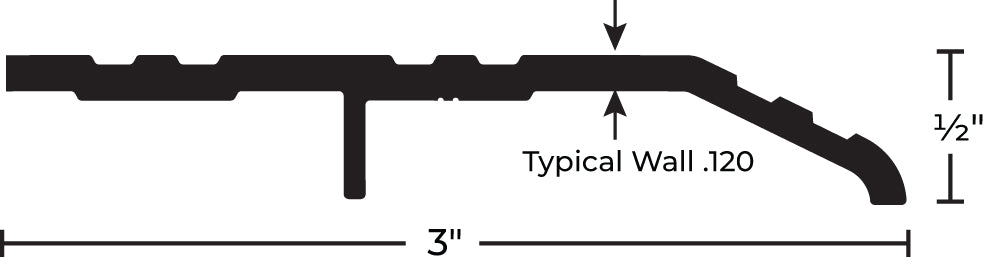

- 3" wide x 1/2" tall
- Fluted top
- ADA Compliant when installed with the non-beveled edge flush with the flooring, or where no greater than 1/4" vertical rise occurs
- Typical wall thickness .109"
- Weight: .56 lbs./ft.
- #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Standards
ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Options
- Slip-resistant SIA finish
