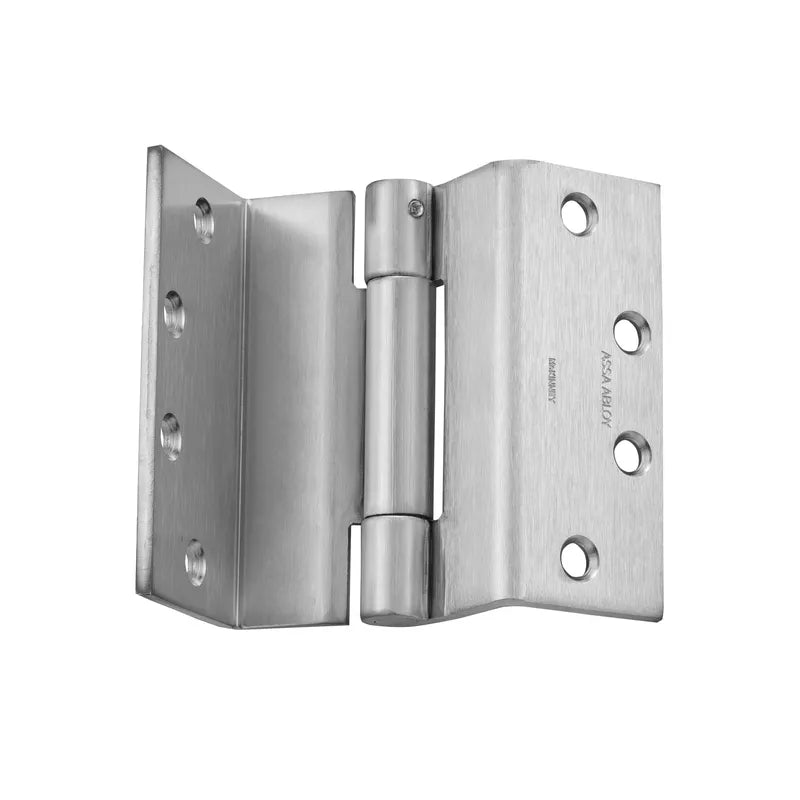

The TA795 is our steel heavyweight three knuckle reversible hinge, which is recommended for buildings with high frequency and/or heavy doors and allows for maximum doorway clearance.
Product Overview
Features
- Allows for maximum clearance for passage of beds, tables or other equipment through the doorway
- Pin is held in place by NRP set screw which allows the hinge to be reversible
- Heavy weight - for use on all extra heavy and/or high frequency doors
- Where doors are beveled on hinge side, specify TA5795
- Hospital tip available
- Anti-friction type bearings at both joints
Benefits
- Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
- Pressed steel jambs require no special reinforcing
- Prevents damage to the door and frame from traffic passing through
- Effectively widens the doorway
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
4 1/2" |
114.3 |
0.180 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
|
5" |
127 |
0.190 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
Specifications
- Corner Shape: Square
- Handing: Non-handed
- Hinge Bearing Type: Concealed Bearing
Certifications
- NFPA 80 Compliant
- ANSI/BHMA A156.1
