McKinney TA392 Stainless Steel Heavy Weight Full Mortise Three Knuckle Anchor Hinge Set: Surface Applied Door Closers

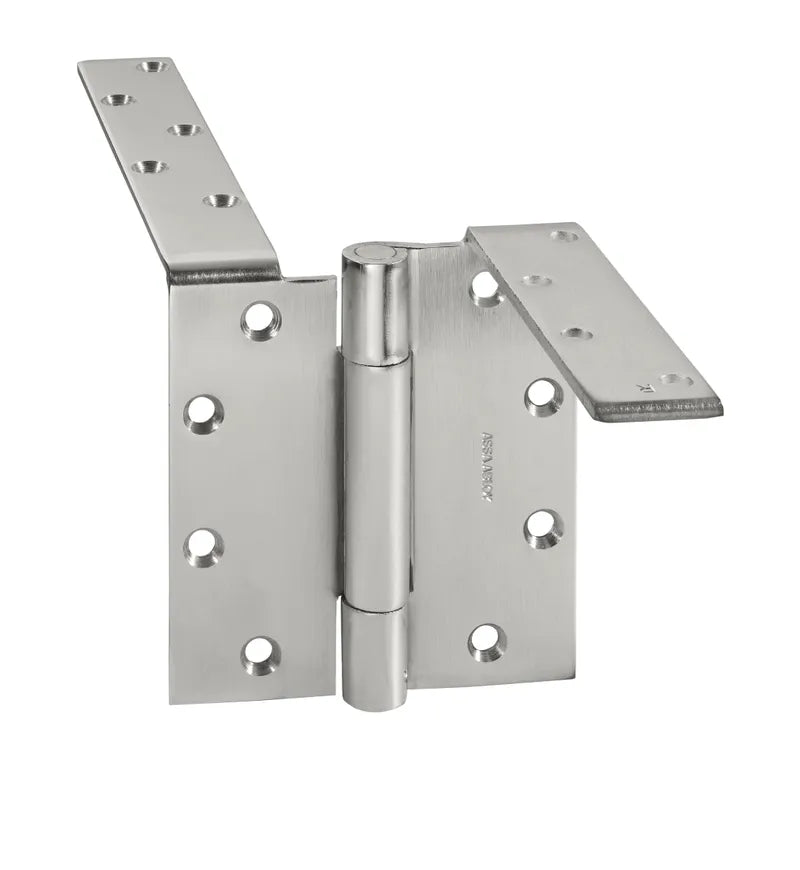

The TA392 (stainless steel) and TA792 (steel) three knuckle heavy weight hinge sets come with one anchor hinge and two 5" x 4-1/2" full mortise hinges. They permit the use of surface-applied holders and closers on doors where high traffic, abuse, or other door hardware place an unusual strain on the door, jamb, and hinges.
Product Overview
Features
- Set includes one anchor hinge and two 5" x 4-1/2" full mortise hinges
- For use on doors where high traffic, abuse, or other door hardware place an unusual strain on the door, jamb, and hinges
- Heavyweight - for use on all extra heavy and/or high frequency doors
- Used in conjunction with surface applied holders and closers
- Anchor plate for door and jamb header
- Packed with all machine and all wood screws
- Pin is held in place by an NRP set screw
- Where doors are beveled edge on hinge side, specify TA5392 or TA5792
- For electrification, please order the electrified hinge separately. Contact Customer Service for requirements.
Benefits
- Anchor plate permits use of surface-applied holders and closers
- Prolongs the life of door and hardware and helps prevent door sagging
- Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
5" x 4 1/2" |
127 x 114.3 |
0.190 |
17 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
Specifications
- Corner Shape: Square
- Handing: Handed
- Hinge Bearing Type: Concealed Bearing
Certifications
- NFPA 80 Compliant
