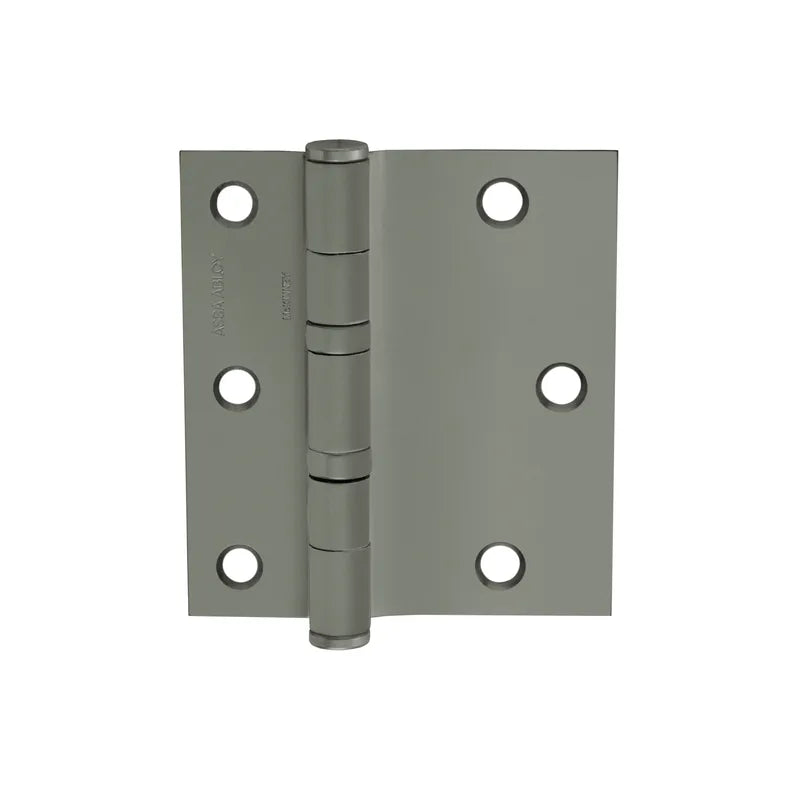

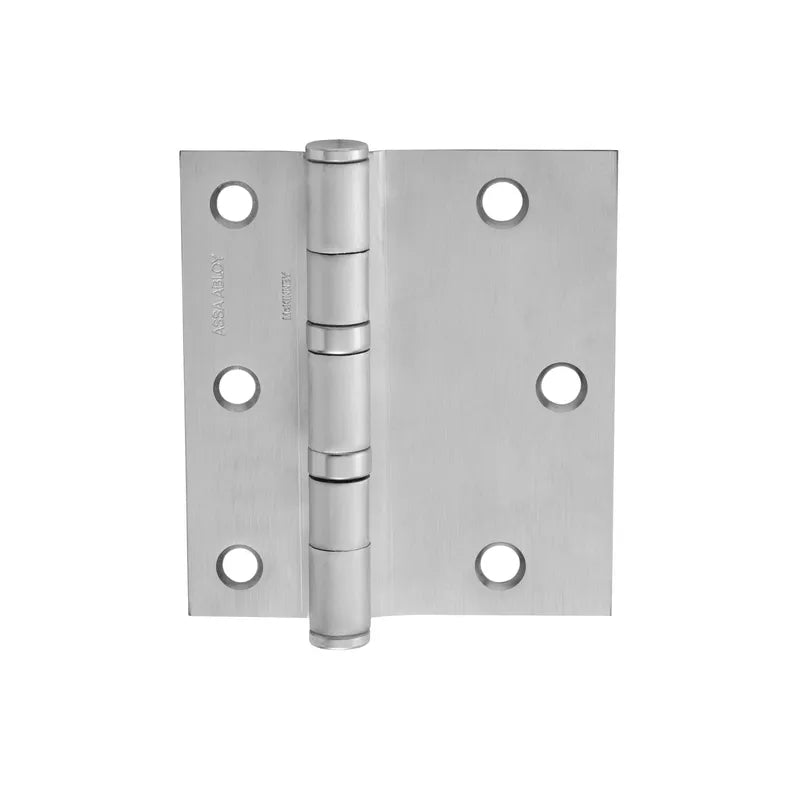

The TA2771 (steel) five knuckle standard weight bearing full surface hinge is reversible and recommended for use on average frequency and/or medium weight wood or metal doors in public buildings where there is medium traffic.
Product Overview
Features
- May be used on channel iron jambs
- Narrow leaf is applied to the surface of the jamb with machine screws, door leaf is applied to the surface of the door with thru bolts and grommet nuts
- Packed with all machine screws and thru bolts and grommet nuts
- Pin is held in place by an NRP set screw
- Hospital tip available
- Ball bearing option offered
- Reversible
Benefits
- Sits flush with the doors and frames with which they are used
- Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed
- Sloped angle of hospital tip (HT) option helps discourage students, inmates, or patients from hanging objects from the top of the hinge
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
4 1/2" |
114.3 |
0.134 |
6 |
Machine: 2 x 1/4-20, 1/2 x 12-24 |
|
5" |
127.0 |
0.146 |
8 |
Machine: 2 x 1/4-20, 1/2 x 12-24 |
Specifications
- Corner Shape: Square
- Handing: Non-handed
- Hinge Bearing Type: Oil Impregnated Bearing
Certifications
- NFPA 80 Compliant
- ANSI/BHMA A156.1
