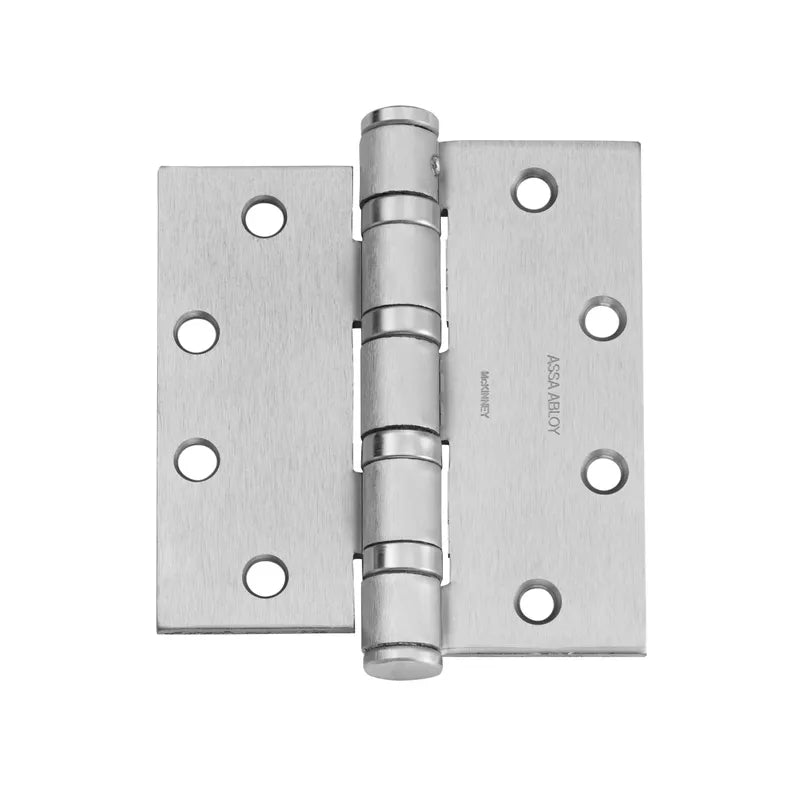

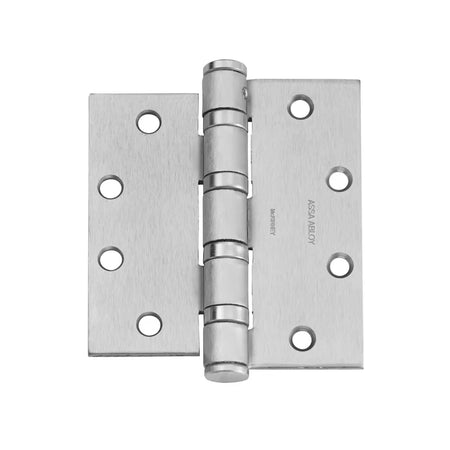

The T4A3386 Interim (stainless steel) and T4A3786 Interim (steel) full mortise heavy-weight hinges are reversible and recommended for installations where the door and frame are prepped for two different hinge sizes.
Product Overview
Features
- For installations where the door and frame are prepped for two different hinge sizes
- An equal amount is trimmed from the top and bottom of the leaf
- Supplied with a no hole bottom plug
- Pin is held in place by an NRP set screw
- Heavyweight - for use on all extra-heavy and/or high-frequency doors
- NRP available
- Electrified option available
Benefits
- For new or retrofit installations
- Reversible
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
5" x 4 1/2" |
127.0 x 114.3 |
0.190 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
|
4 1/2" x 5" |
114.3 x 127.0 |
0.190 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
Specifications
- Corner Shape: Square
- Handing: Non-handed
- Hinge Bearing Type: Oil Impregnated Bearing
Certifications
- NFPA 80 Compliant
- ANSI/BHMA A156.1
