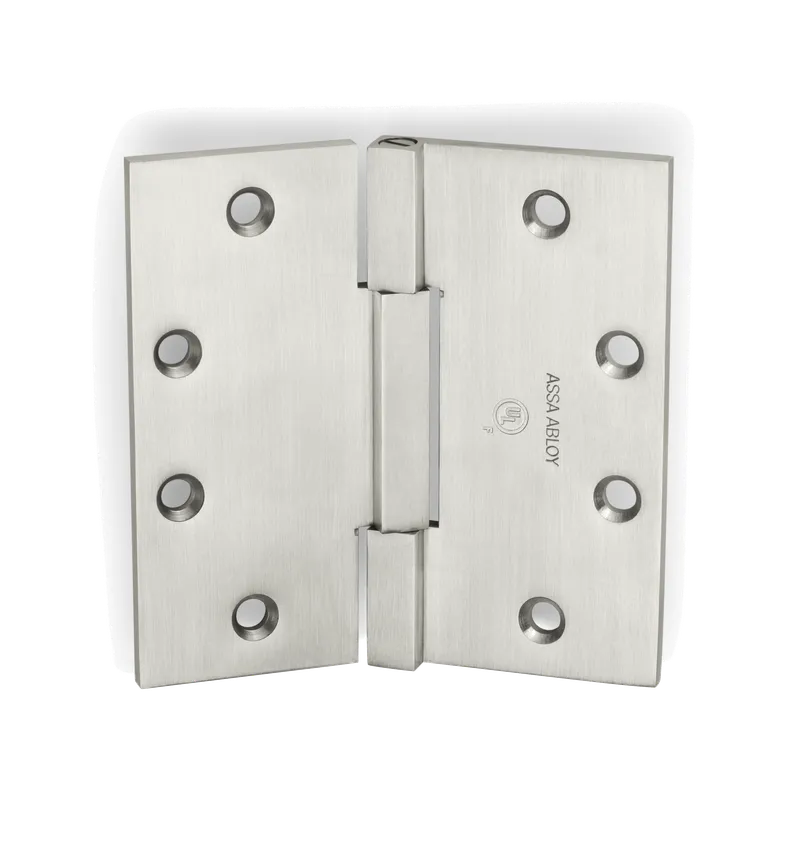

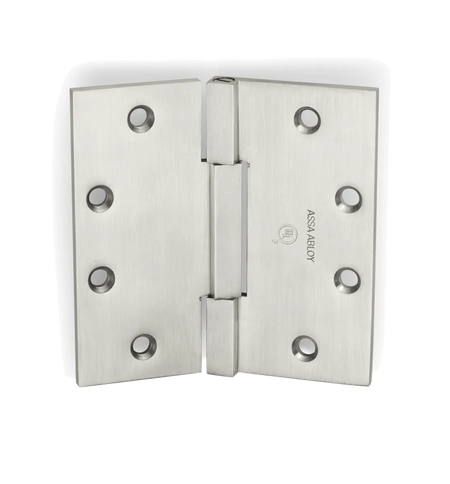

The SQ314 non-handed, stainless steel three-knuckle hinge is used with square-edge doors only. It is UL-listed and is recommended for use on interior or exterior hollow metal and wood frame doors of average weight with average frequency.
Product Overview
Features
- For 1-3/4" thick square edge doors only
- Stainless steel material
- Cannot be electrified
- A bearing contains an anti-friction component
- Three knuckle
- UL rated on fire doors up to and including 3 hours
Benefits
- Suitable for both interior and exterior doors
- Crisp, clean design makes a bold statement
- Pairs with decorative levers and square trim set from Corbin Russwin or SARGENT
- Suites with Rockwood pulls, coat hooks, and door stops
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
4 1/2" x 4 1/2" |
114.3 x 114.3 |
0.177 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
|
4 1/2 x 4 |
114.3 x 101.6 |
0.177 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
Specifications
- Corner Shape: Square
- Handing: Non-handed
Certifications
- UL Listed
- UL listed and UL10c compliant
- NFPA 80 Compliant
