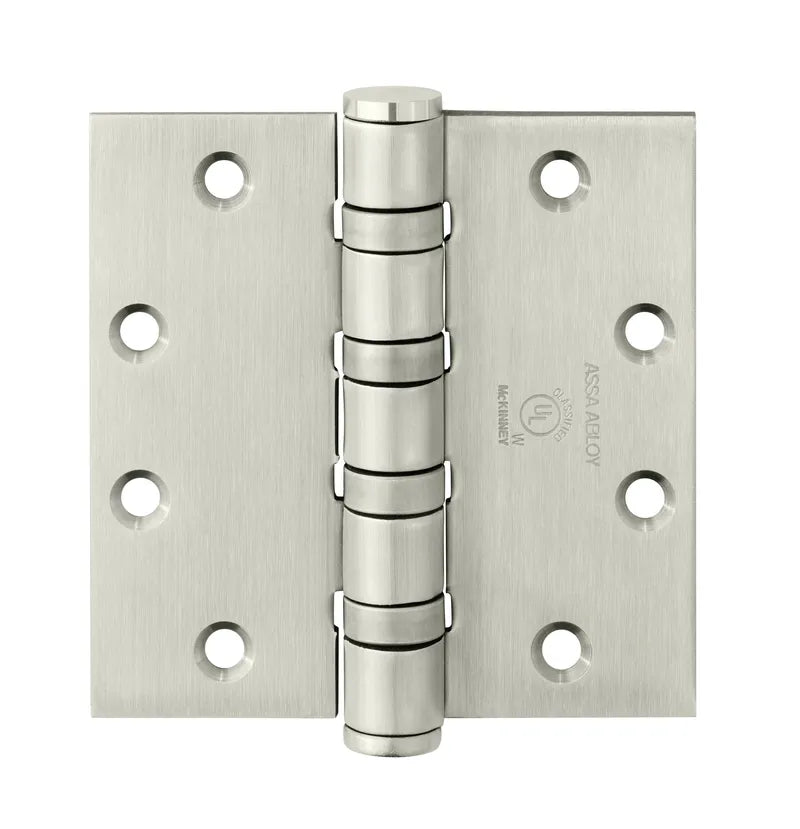

The SP3386 (stainless steel) and SP3786 (steel) StormPro® tornado resistant hinges are built to withstand the extreme wind speeds and flying debris associated with severe weather conditions.
Product Overview
Features
- Built to withstand the extreme wind speeds and flying debris associated with severe weather conditions
- Meets UL Certification for Fire, ICC 500-2014 and FEMA Guidelines
- For common flush door/frame/wall application
- Packed with stainless steel machine screws
- NRP available
- Electrified option available
Benefits
- Tornado resistant
- Part of the integrated unit when used with StormPro® tornado resistant assemblies from Ceco Door, CURRIES, and other hardware by ASSA ABLOY Group brands including Rockwood kickplates, automatic door holders and stops and door viewers
- StormPro® products help fortify the opening to combat intense wind speeds up to 250 miles per hour
- Optional Non-Removable Pin (NRP) ensures hinge is held in place and can't be removed when door is closed
- Electrified hinges can: Secure your building and doorways, easily and safely power locking hardware and access control, use wires with connectors that leads or snaps together, resistant to tampering as there are no external wires, improve the overall look of the access door
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
4 1/2" x 4 1/2" |
114.3 x 114.3 |
0.180 |
8 |
Machine: 1/2 x 12-24 |
|
5" x 4 1/2" |
127.0 x 114.3 |
0.190 |
8 |
Machine: 1/2 x 12-24 |
Specifications
- Corner Shape: Square
- Handing: Non-handed
Certifications
- UL listed and UL10c compliant
- FEMA P-361
- ICC 500
- NFPA 80 Compliant
