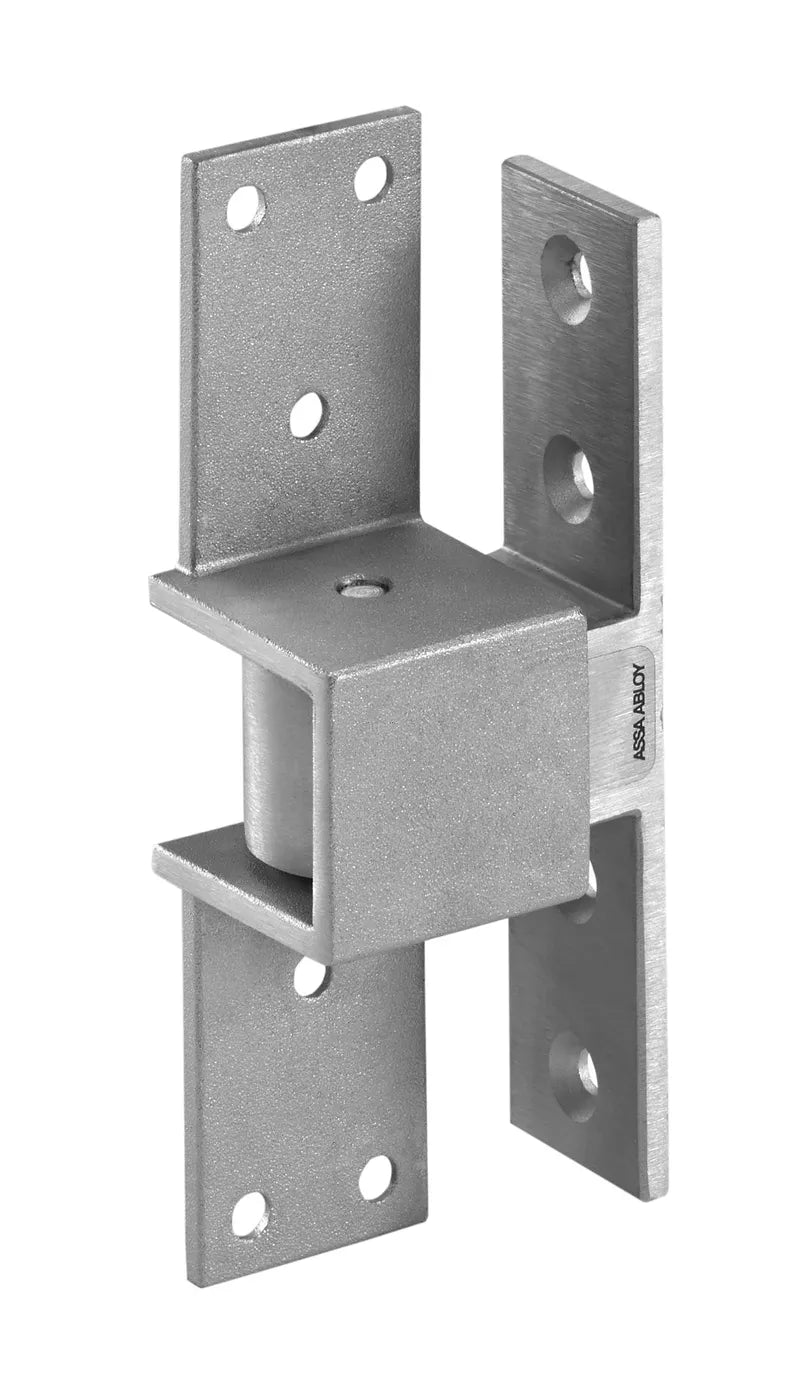

The non-handed PH-4 cast steel full mortise pocket pivot hinge allows single or cross corridor doors to lay against the wall with no projection into the openings and no gap between the door and the frame.
Product Overview
Features
- For applications where the use of the full width of the corridor is required and/or a swing clear hinge is aesthetically unacceptable
- Recesses into a pocket in the corridor wall
- Allows single and cross-corridor doors to lay against the wall with no projection into the opening and no gap between the door and frame
- Meets the material and performance requirements of NFPA 80 and ANSI A-156-1
- Meets or exceeds ANSI 117.1, ADA compliant
- Two thrust bearings for vertical loads, roller bearing for lateral support
- UL Listed
- Non-handed
- Investment cast steel base material
Benefits
- Gives a flush appearance to the corridor when the door is open
- Minimum visible hardware and clearances when combined with a floor closer
- 3-hour fire rating (hollow metal or steel-covered composite fire doors)
- 20-minute fire rating (wood core type fire doors)
Specifications
| Door Weight (Lbs.) | Door Width | # Hinges/Door |
|---|---|---|
| 150 | 3'0" x 7'0" | 2 |
| 250 | 3'0" x 7'0" | 3 |
| 350 | 4'0" x 7'0" | 4 |
Certifications
- UL Listed
- UL listed and UL10c-compliant
- ANSI/BHMA A117.1
- NFPA 80 Compliant
- ANSI/BHMA A156.1
