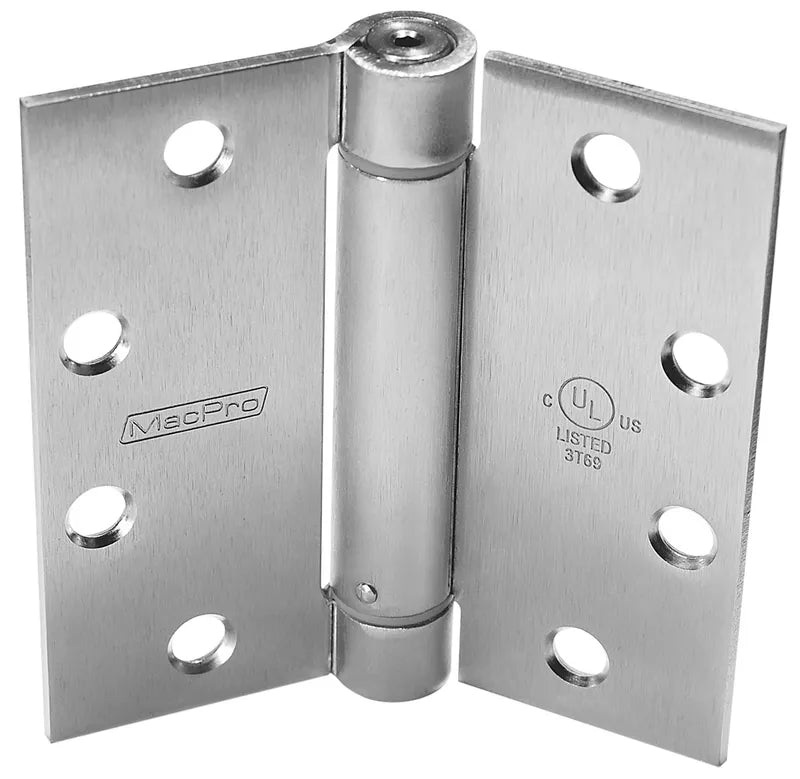

Our contractor-grade MacPro® adjustable spring hinges are best utilized as a door closing device alternative and are ideal for retrofit applications in apartments, hotels, dormitories, and office buildings.
Features
- For standard weight hinge applications requiring self-closing control
- Contractor grade
- NFPA requires a minimum of two hinges on labeled doors
- Conforms to ANSI/BHMA 156.1, 156.7, 156.17
- UL Listed - MPS60
- MPS679 - Set of two MPS60 spring hinges and one MPB79 full mortise butt hinge MPS60 - Set of three per box
Benefits
- Retrofittable
- Alternative to door closing device
- MPS679 configuration prevents adding too much tension to self-closing doors
- Self-closing eliminates the need to pull the door shut
- Hands-free application when used in conjunction with a Rockwood hands-free door pull
- Prevents door from being accidentally left open, saving on heating and cooling costs
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
4 1/2" x 4 1/2" |
114.3 x 114.3 |
0.134 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
|
4 1/2" x 4" |
114.3 x 101.6 |
0.134 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
Specifications
- Corner Shape: Square
- Handing: Non-handed
Certifications
- UL Listed
- UL listed and UL10c compliant
- NFPA 80 Compliant
- ANSI/BHMA A156.1
- ANSI/BHMA A156.17
- ANSI/BHMA A156.7
