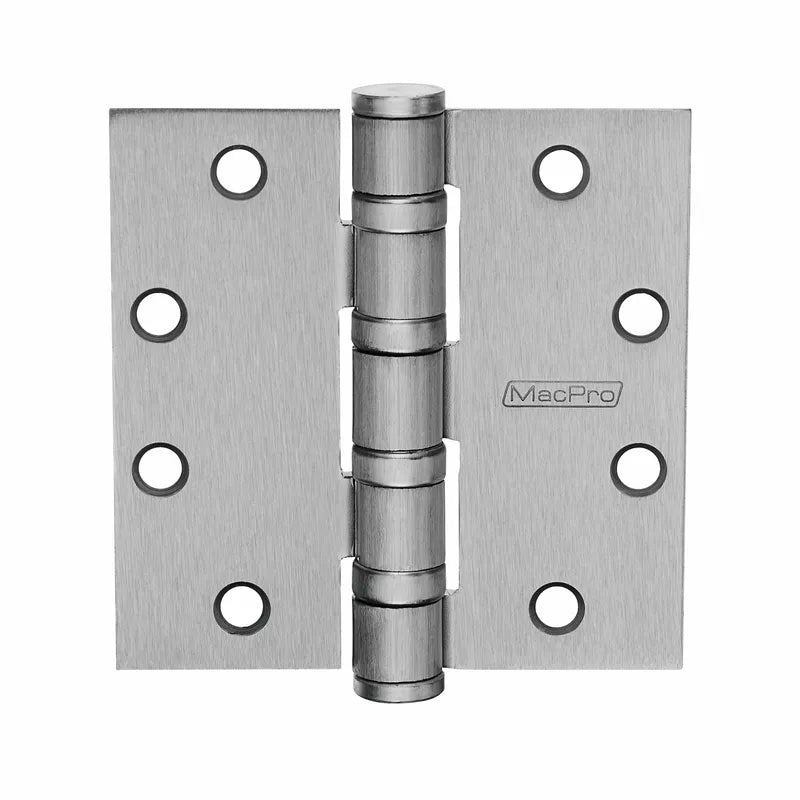

Our contractor-grade MacPRO® heavy weight five knuckle full mortise hinges are an extraordinary value and ideal when you need large quantities of standard hinges.
Product Overview
Features
- For doors with a closing device, a bearing hinge must be used
- For doors with a closing device, select a MPB68
- For use on all extra-heavy and/or high-frequency doors
- Conforms to ANSI/BHMA 156.1, 156.7
- Contractor grade
- NRP available
Benefits
- Extraordinary value
- Non-Removable Pin (NRP) option ensures the hinge is held in place and can't be removed when the door is closed
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
4 1/2" x 4 1/2" |
114.3 x 114.3 |
0.180 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
|
5" x 4 1/2" |
127 x 114.3 |
0.190 |
8 |
Machine: 1/2 x 12-24, Wood: 1 1/4 x 12 |
Specifications
- Corner Shape: Square
- Handing: Non-handed
- Hinge Bearing Type: Ball Bearing
Certifications
- NFPA 80 Compliant
- ANSI/BHMA A156.1
- ANSI/BHMA A156.7
