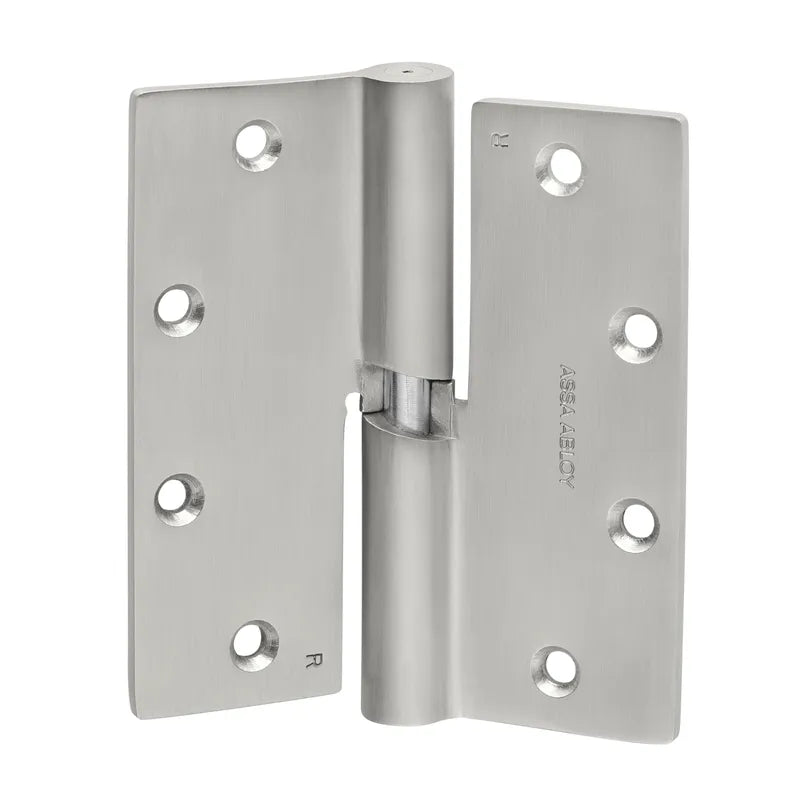

The MKCL134 stainless steel cam lift hinge, with a 200 lb door rating, moves the door up 3/16" and then lowers it to create a tight seal when the door is closed, recommended for acoustic and energy-saving doors with seals.
Product Overview
Features
- For acoustic doors and energy-saving doors with seals
- Minimum clearance at head of frame is 3/16", for doors greater than 1-3/4", clearance is 1/4"
- Door rating up to 200 lbs.
Benefits
- Creates a tight seal when the door is closed, reducing the transmission of sound through the opening
- Helps prevent binding
- Reduces damage and wear to door seals
- Pairs well with Pemko acoustic door seals
| Inches | Millimeters | Gauge | No. of Holes | Fastener |
|---|---|---|---|---|
|
4 1/2" x 4 1/2" |
114.3 x 114.3 |
0.134 |
8 |
Machine: 12-24 x 3/4 |
Specifications
- Corner Shape: Square
- Handing: Handed
Certifications
- NFPA 80 Compliant
